CUSTOM MAGNETIC DATA CABLES
Custom Magnetic Data Cables
Custom magnetic cable assemblies developed for charging plus defined data or signal transmission tasks.
PRODUCT SELECTOR
Filter magnetic data cables by product type
The filter structure follows the same five-family classification used on the Chinese catalog. A matching case is a development reference, not a guaranteed drop-in design.
55 matching project referencesPage 1 of 5
CUSTOM PROJECT REFERENCECustom 4-Pin Magnetic Data Cable, 1 A / 5 V – YT-MDC-036SKU YT-MDC-036Pin Count4Rated Current1 ARated Voltage5 V
CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Data Cable, 1 A / 5 V – YT-MDC-035SKU YT-MDC-035Pin Count2Rated Current1 ARated Voltage5 V
CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Data Cable, 0.75 A / 5 V – YT-MDC-034SKU YT-MDC-034Pin Count2Rated Current0.75 ARated Voltage5 V
CUSTOM PROJECT REFERENCECustom 4-Pin Magnetic Data Cable, 0.22 mA / 5 V – YT-MDC-033SKU YT-MDC-033Pin Count4Rated Current0.22 mARated Voltage5 V
CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Data Cable, 0.5 A / 5 V – YT-MDC-032SKU YT-MDC-032Pin Count2Rated Current0.5 ARated Voltage5 V

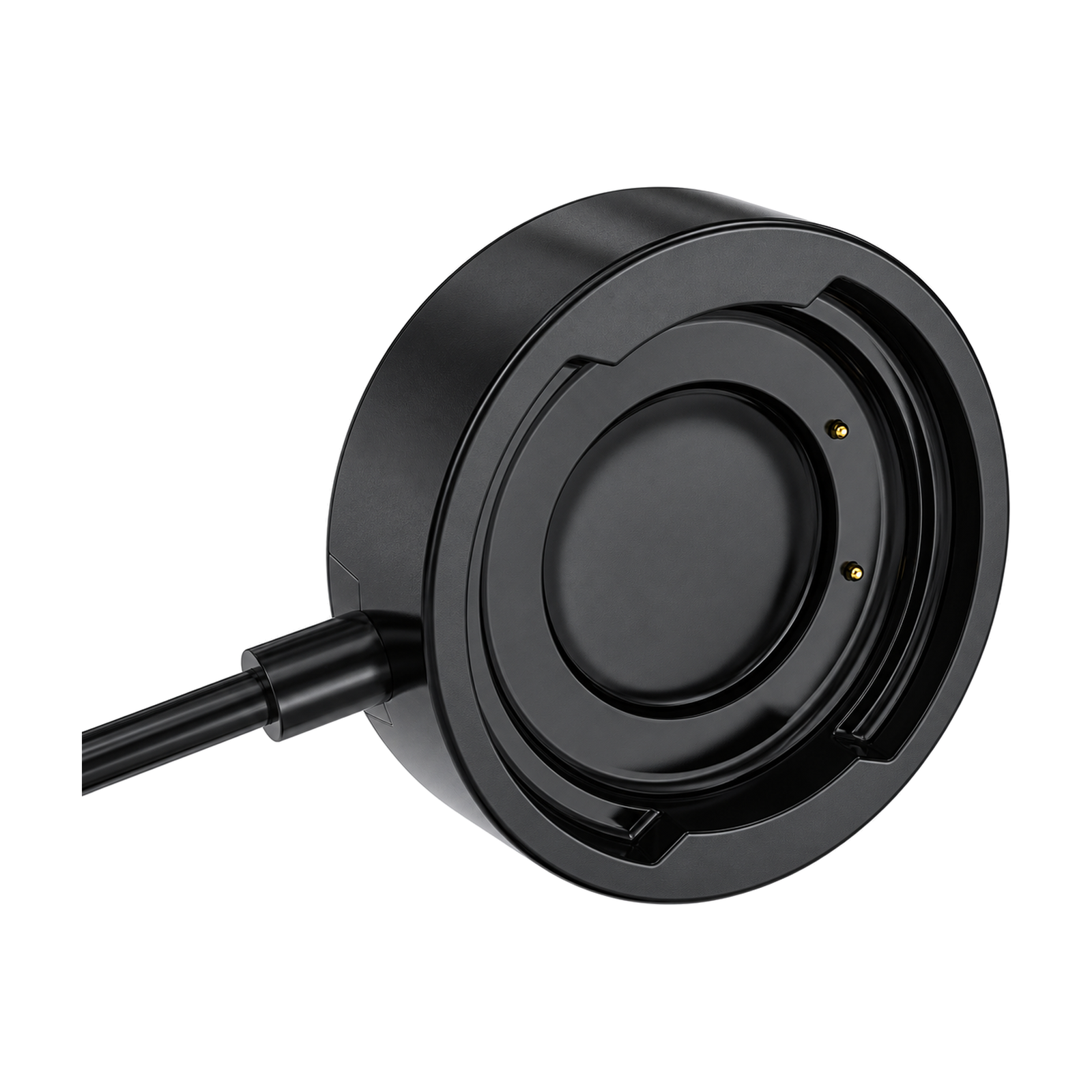

CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Data Cable, 0.22 mA / 5 V – YT-MDC-031SKU YT-MDC-031Pin Count2Rated Current0.22 mARated Voltage5 V

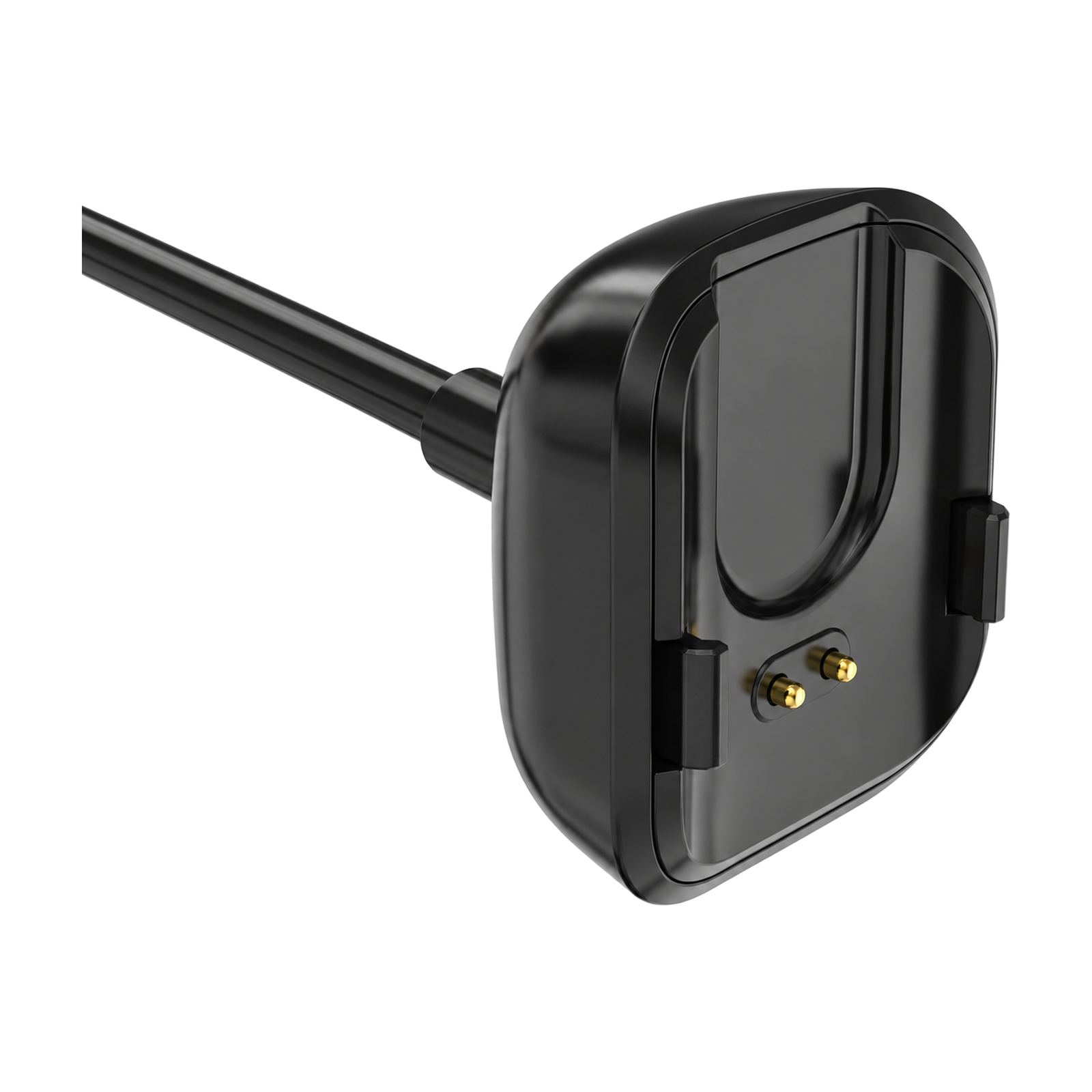

CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Data Cable – YT-MDC-030SKU YT-MDC-030Pin Count2

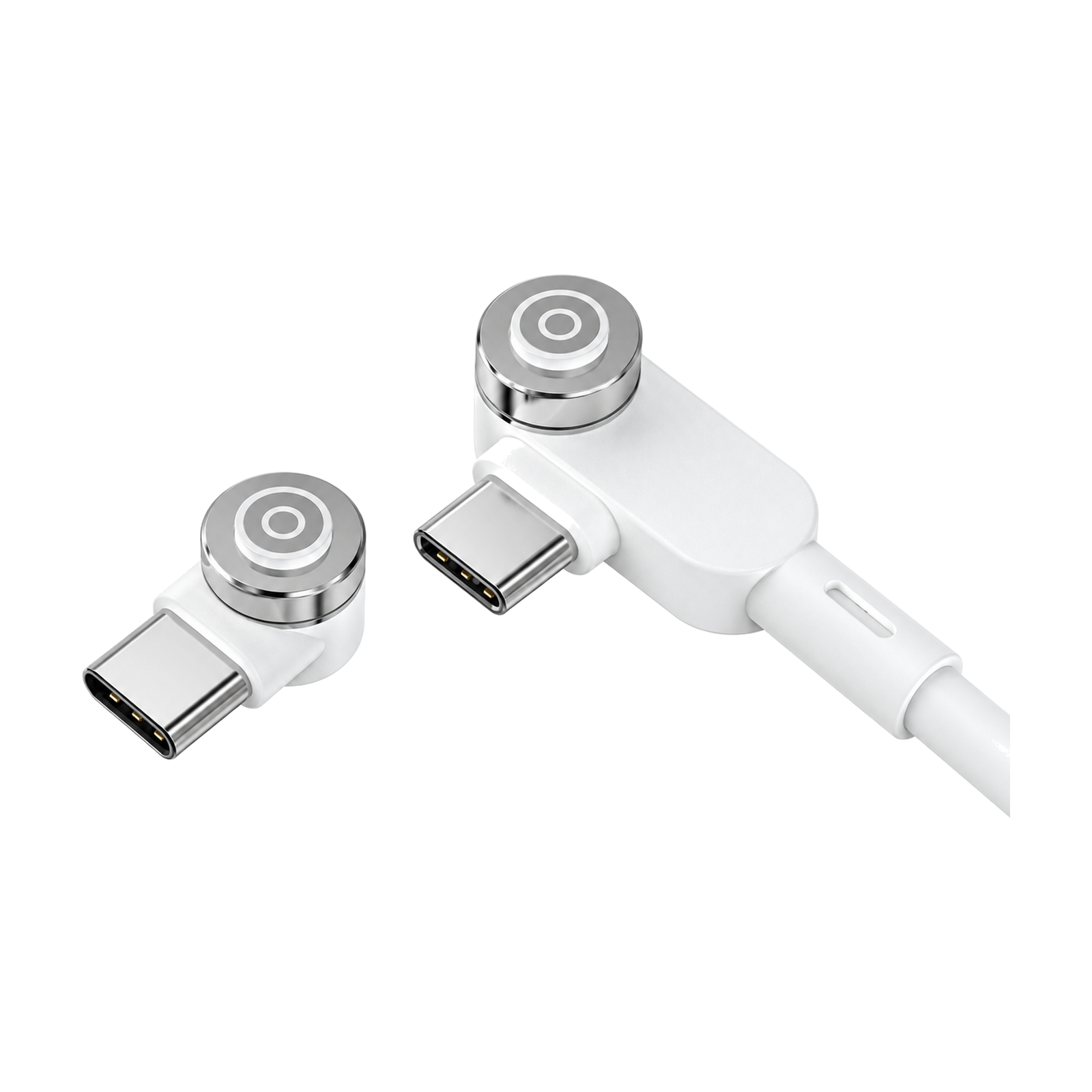

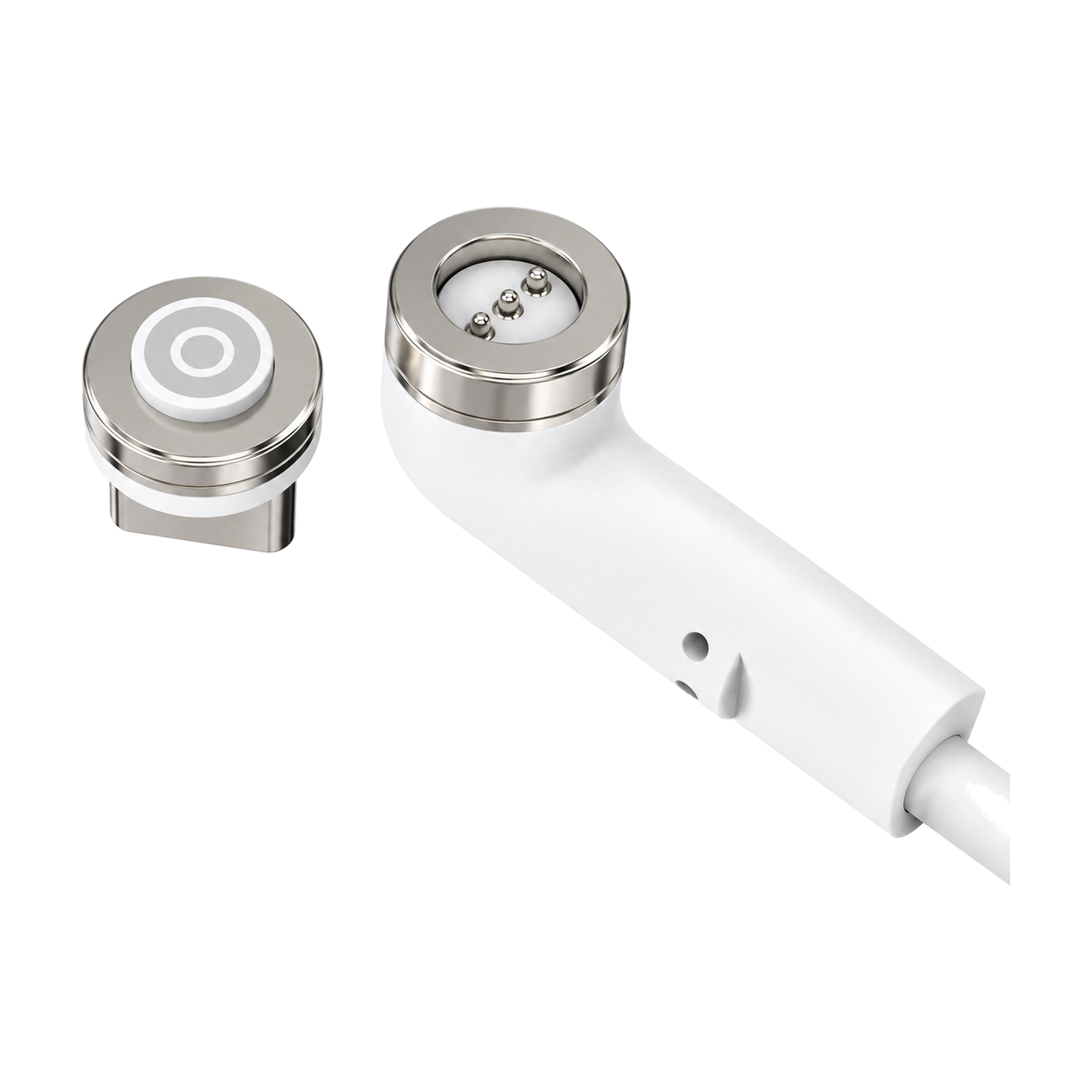

CUSTOM PROJECT REFERENCECustom 3-Pin Magnetic Data Cable, 3 A / 9 V – YT-MDC-028SKU YT-MDC-028Pin Count3Rated Current3 ARated Voltage9 V
CUSTOM PROJECT REFERENCECustom 3-Pin Magnetic Data Cable, 3 A / 5 V – YT-MDC-027SKU YT-MDC-027Pin Count3Rated Current3 ARated Voltage5 V

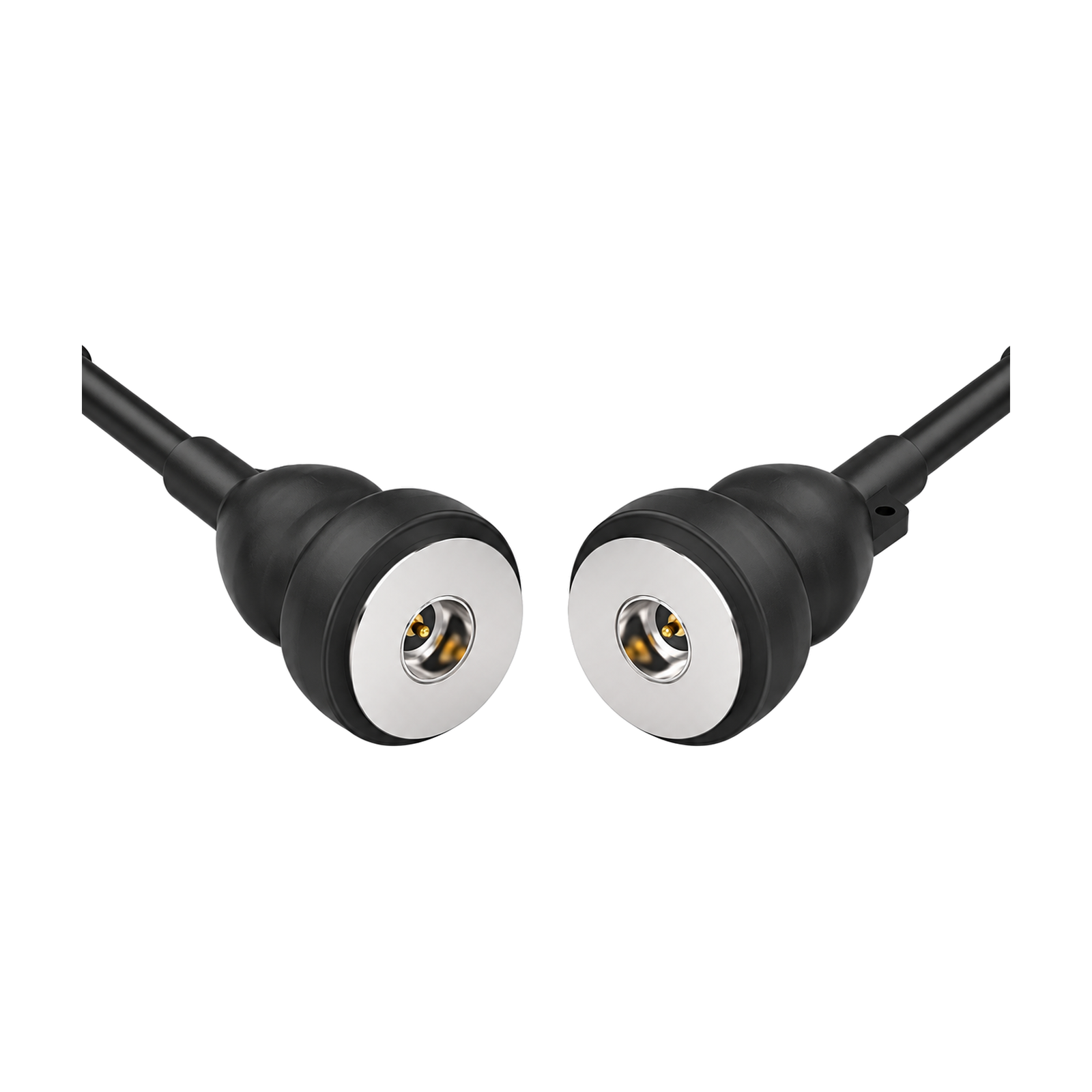

CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Data Cable – YT-MDC-026SKU YT-MDC-026Pin Count2

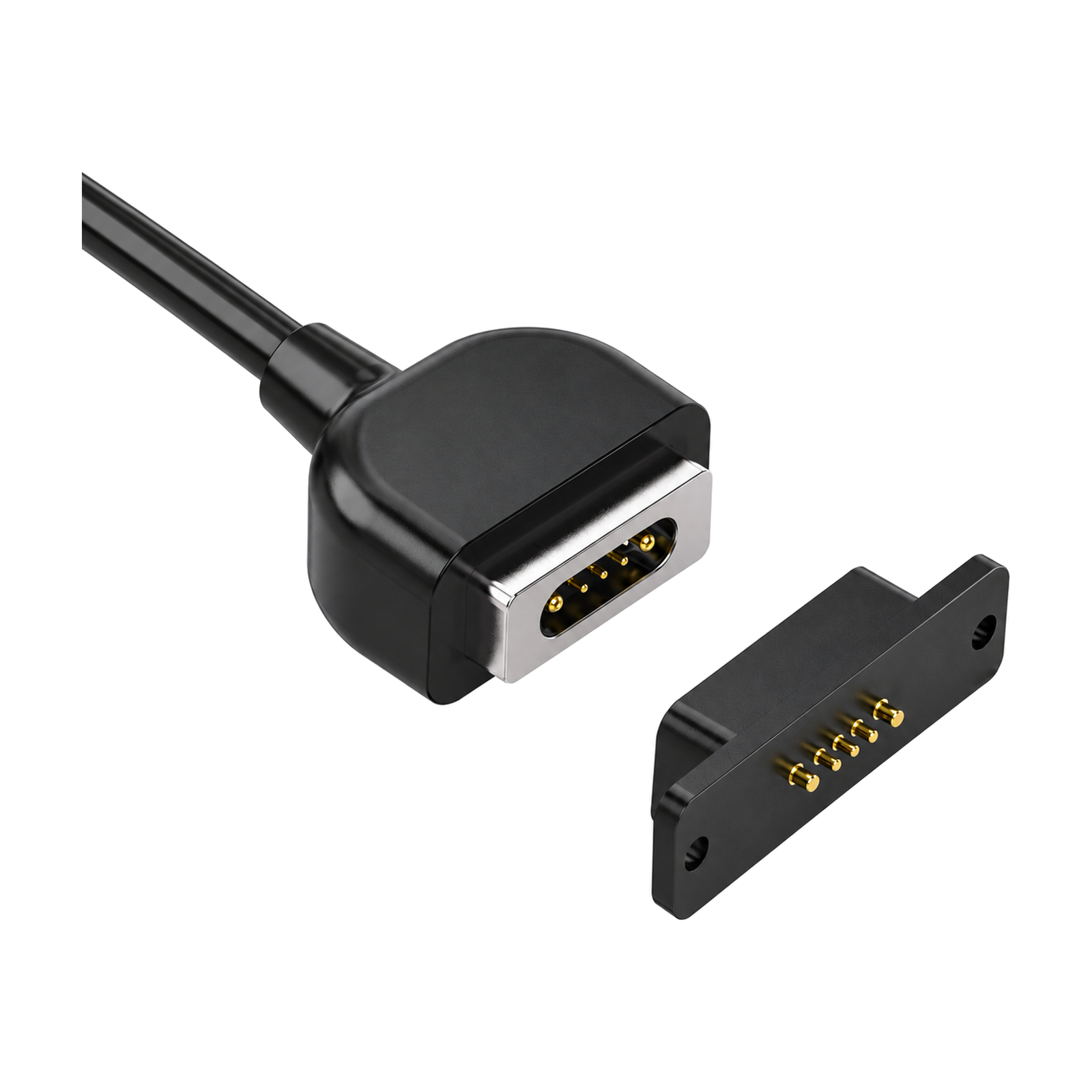

CUSTOM PROJECT REFERENCECustom Racetrack 5-Pin Magnetic Data Cable, 5 A / 24 V – YT-MDC-025SKU YT-MDC-025Pin Count5Rated Current5 ARated Voltage24 V

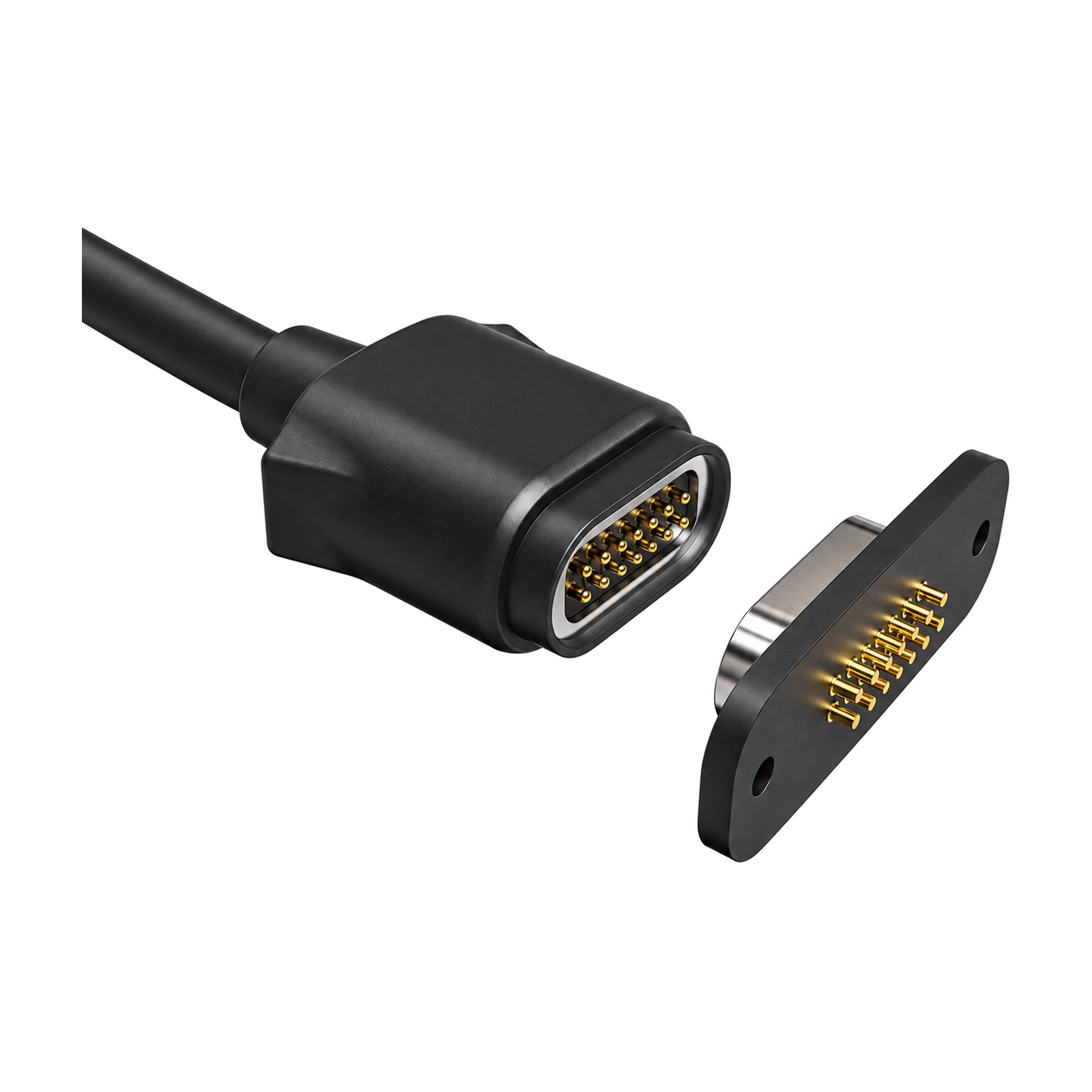

CUSTOM PROJECT REFERENCECustom Racetrack 14-Pin Magnetic Data Cable, 1 A / 5 V – YT-MDC-024SKU YT-MDC-024Pin Count14Rated Current1 ARated Voltage5 VPROJECT EVALUATION
What we confirm before development
Pin definition
Power, data, signal and ground assignments are confirmed with the device-side magnetic interface.
System verification
Charging, communication and mechanical reliability are verified with the target device and agreed test conditions.
ENGINEERING FAQ
Magnetic Data Cable selection questions
Concise answers for product teams evaluating a custom precision-contact or magnetic-connection project.
What is a custom magnetic data cable?
Custom magnetic cable assemblies developed for charging plus defined data or signal transmission tasks. The final design is released only after the project requirements are confirmed.
Which specifications help select a magnetic data cable?
Start with pin count, shape, installation space, electrical assignment, operating environment and expected service life. Use the filters as a reference, then confirm the full requirement with engineering.
Are the listed magnetic data cables customizable?
Yes. The listed products are customer case references. Dimensions, materials, plating, cable, pin assignment and verification requirements can be reviewed for a new project.
START A PROJECT
Need a connection solution built around your device?
Share your drawings, application and target requirements with Bella for an engineering review.
