Device-side structure
The mating geometry, PCB or FPC position, enclosure and anti-misalignment features are developed together.
DEVICE-SIDE MAGNETIC INTERFACES
Custom Magnetic Connectors
Custom magnetic connection interfaces for PCB, FPC, enclosure or module integration.
PRODUCT SELECTOR
Filter magnetic connectors by product type
The filter structure follows the same five-family classification used on the Chinese catalog. A matching case is a development reference, not a guaranteed drop-in design.
91 matching project referencesPage 1 of 8

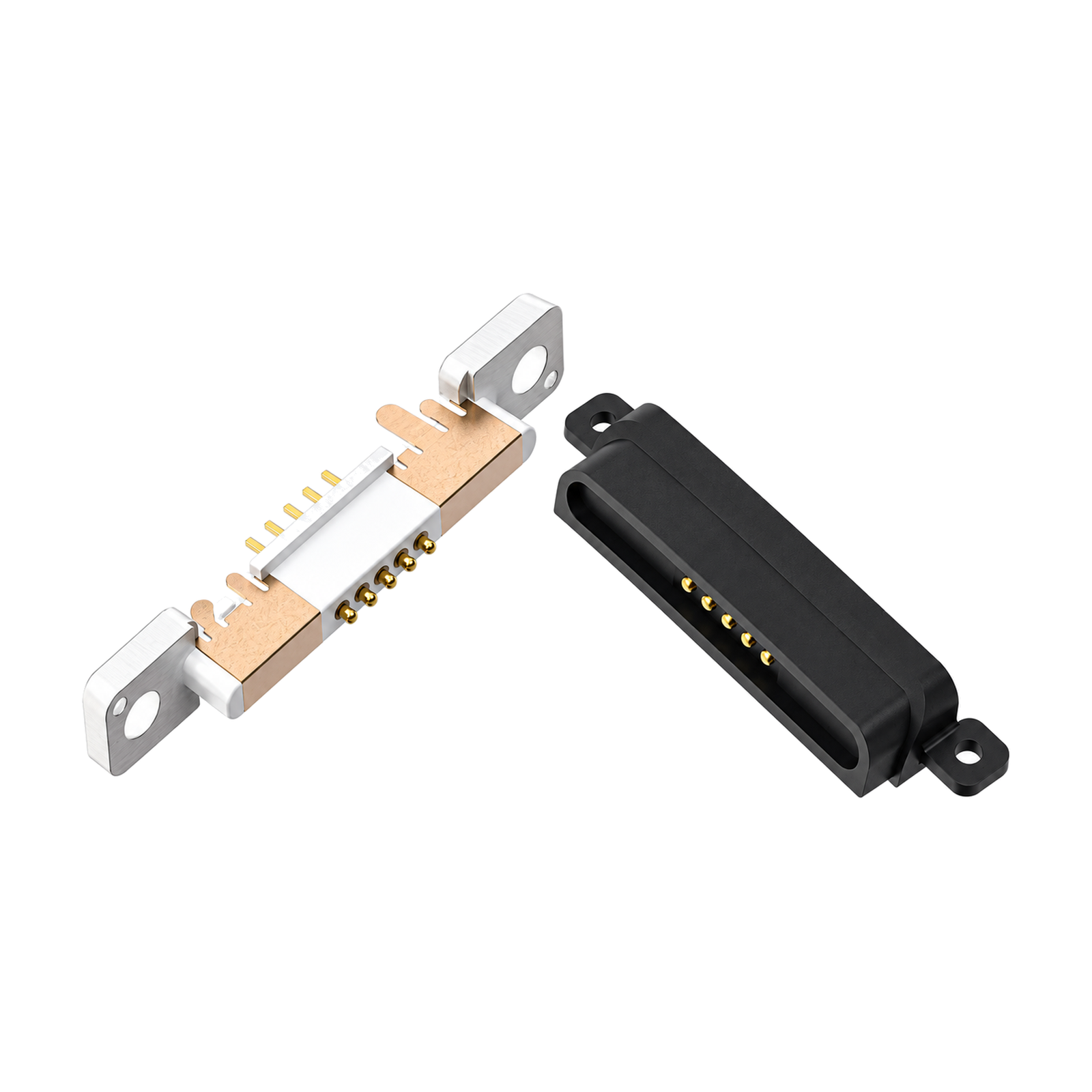

CUSTOM PROJECT REFERENCECustom 5-Pin Magnetic Connector, 1.5 A / 12 V – YT-MC-030SKU YT-MC-030Pin Count5Rated Current1.5 ARated Voltage12 V
CUSTOM PROJECT REFERENCECustom Racetrack 10+ Pin Magnetic Connector, 1.5 A / 12 V – YT-MC-029SKU YT-MC-029Pin Count10 pins and aboveRated Current1.5 ARated Voltage12 V

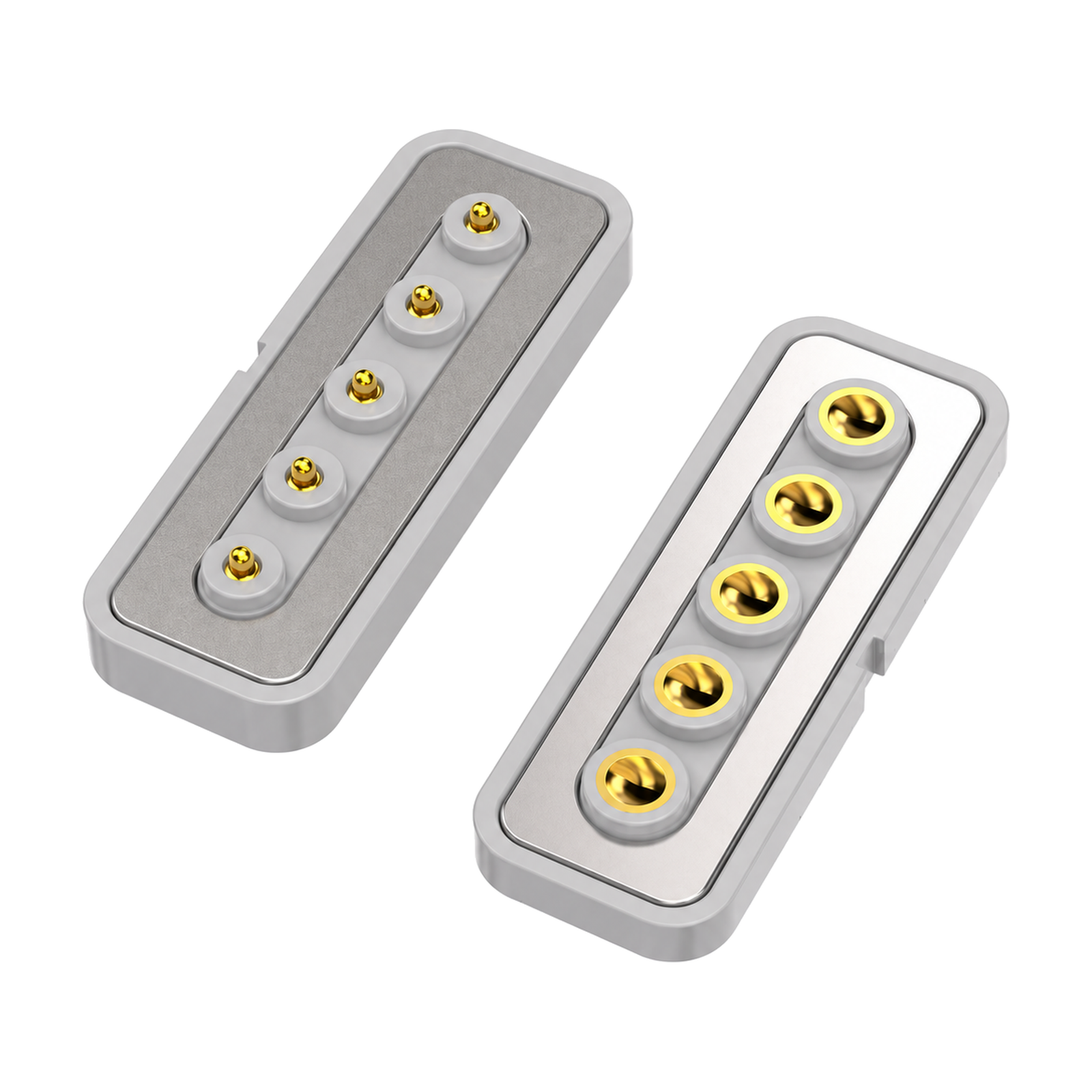

CUSTOM PROJECT REFERENCECustom Racetrack 5-Pin Magnetic Connector, 2.5 A / 12 V – YT-MC-028SKU YT-MC-028Pin Count5Rated Current2.5 ARated Voltage12 V

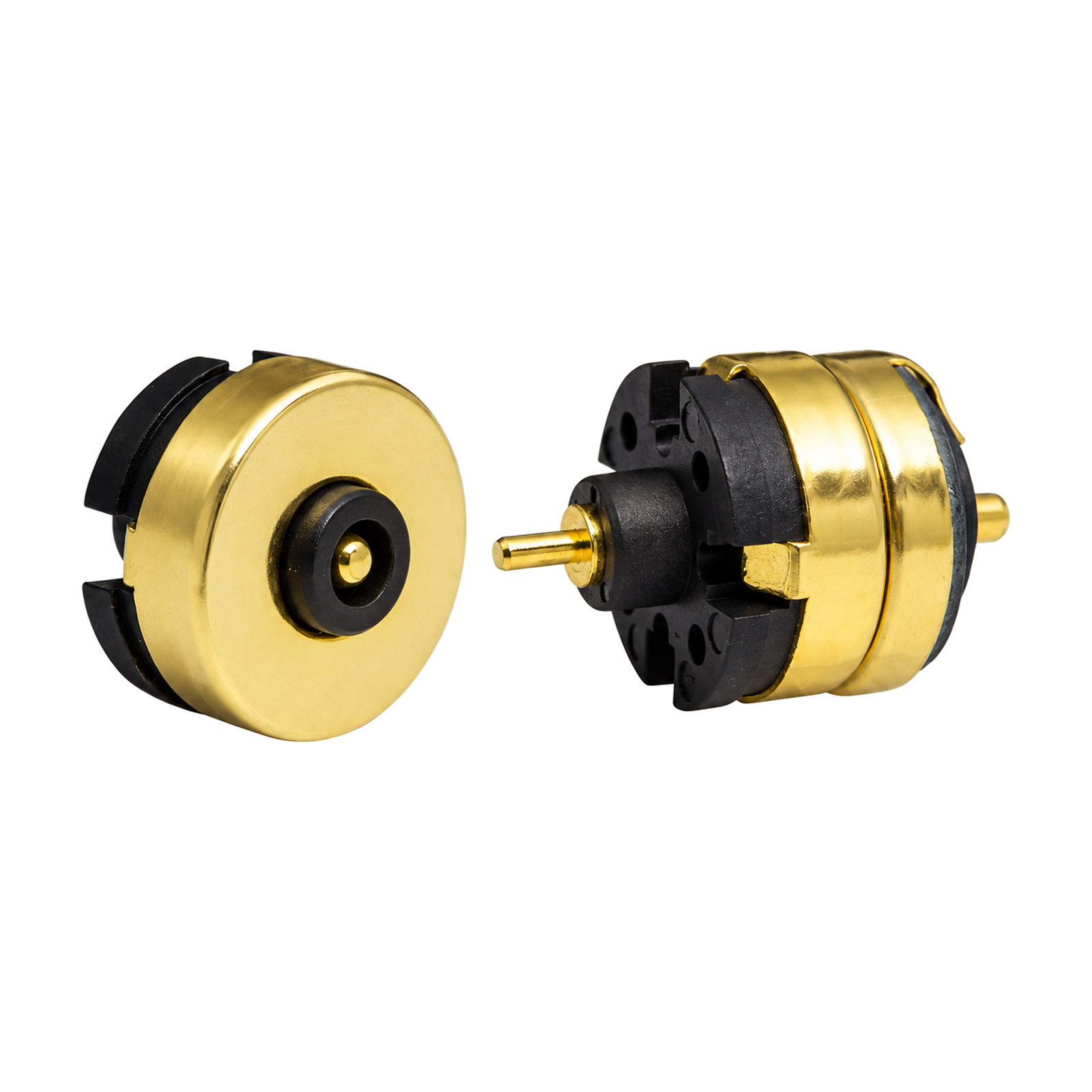

CUSTOM PROJECT REFERENCECustom Round 1-Pin Magnetic Connector, 3.5 A / 20 V – YT-MC-027SKU YT-MC-027Pin Count1Rated Current3.5 ARated Voltage20 V

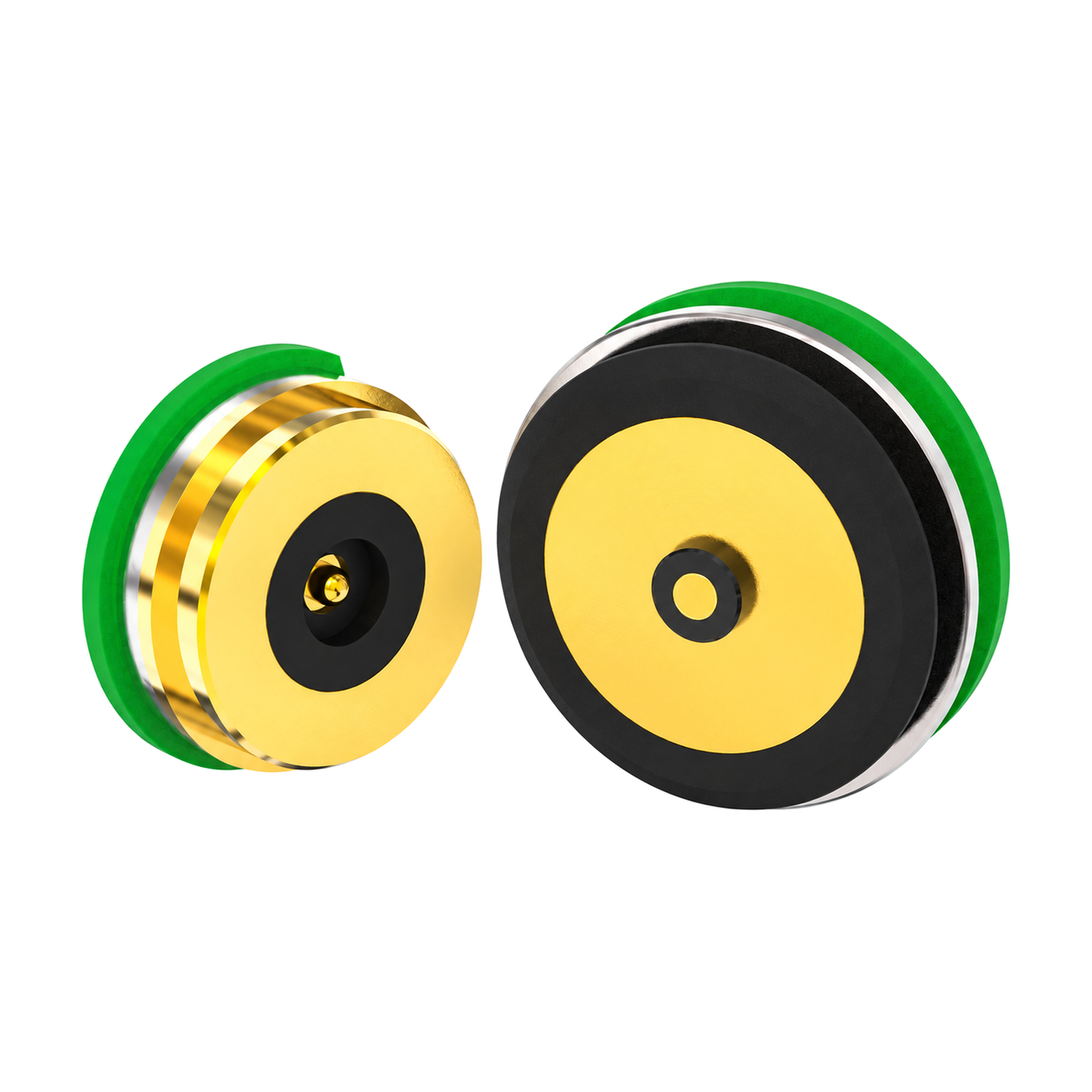

CUSTOM PROJECT REFERENCECustom Round 1-Pin Magnetic Connector, 2 A / 5 V – YT-MC-026SKU YT-MC-026Pin Count1Rated Current2 ARated Voltage5 V
CUSTOM PROJECT REFERENCECustom Round 3-Pin Magnetic Connector, 1 A / 1.5 V – YT-MC-025SKU YT-MC-025Pin Count3Rated Current1 ARated Voltage1.5 V

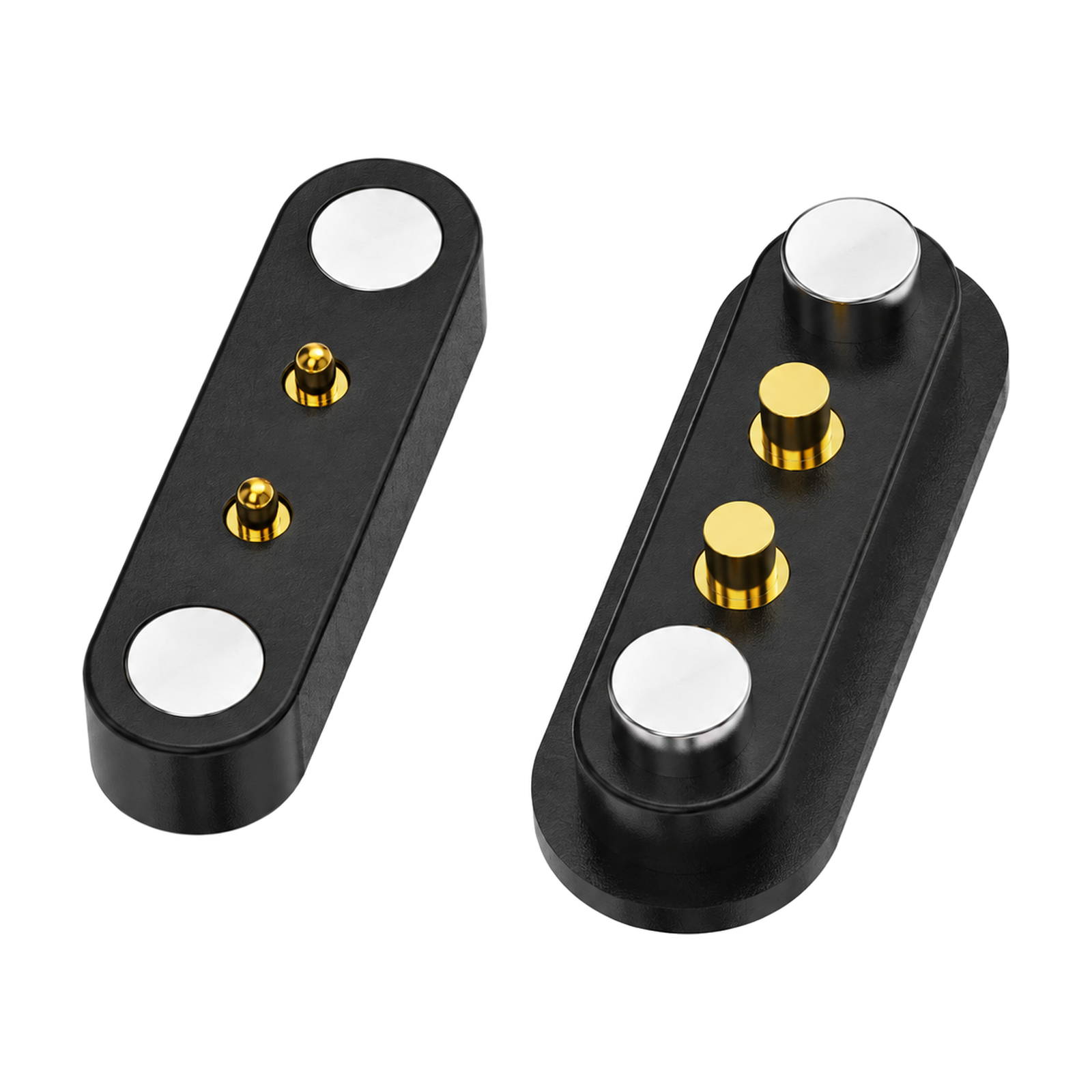

CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Connector, 2 A / 5 V – YT-MC-024SKU YT-MC-024Pin Count2Rated Current2 ARated Voltage5 V

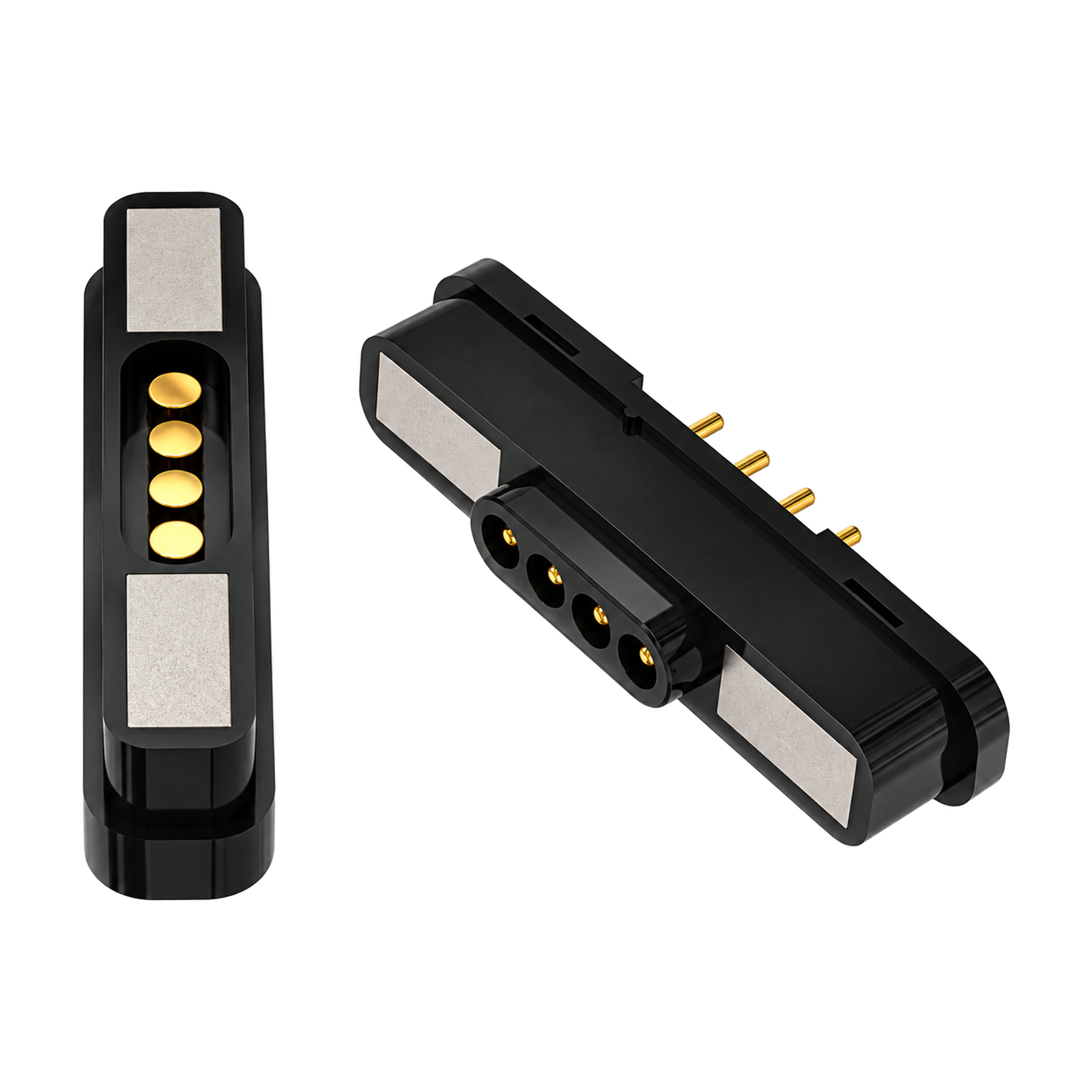

CUSTOM PROJECT REFERENCECustom 4-Pin Magnetic Connector, 2 A / 12 V – YT-MC-023SKU YT-MC-023Pin Count4Rated Current2 ARated Voltage12 V

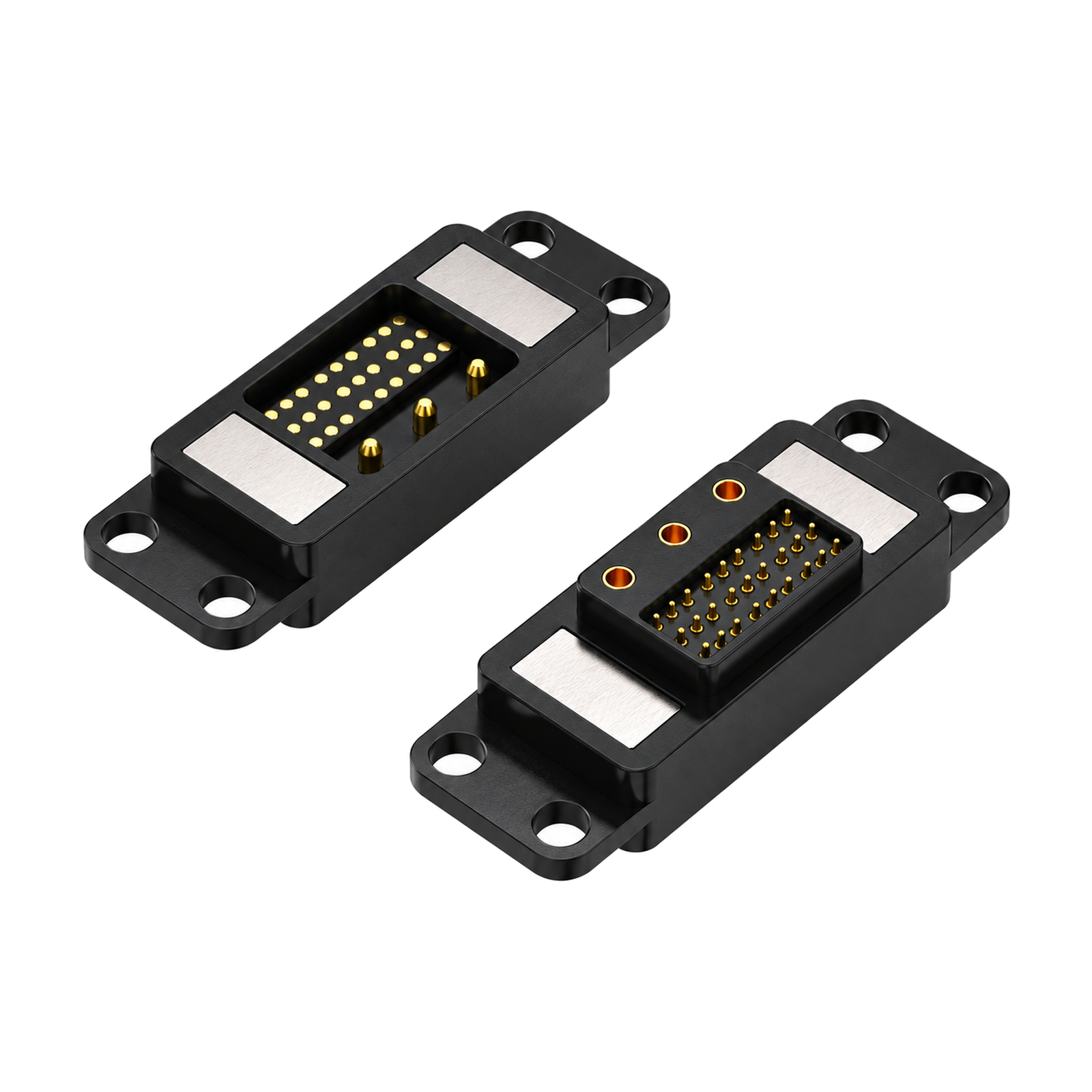

CUSTOM PROJECT REFERENCECustom 10+ Pin Magnetic Connector – YT-MC-022SKU YT-MC-022Pin Count10 pins and above

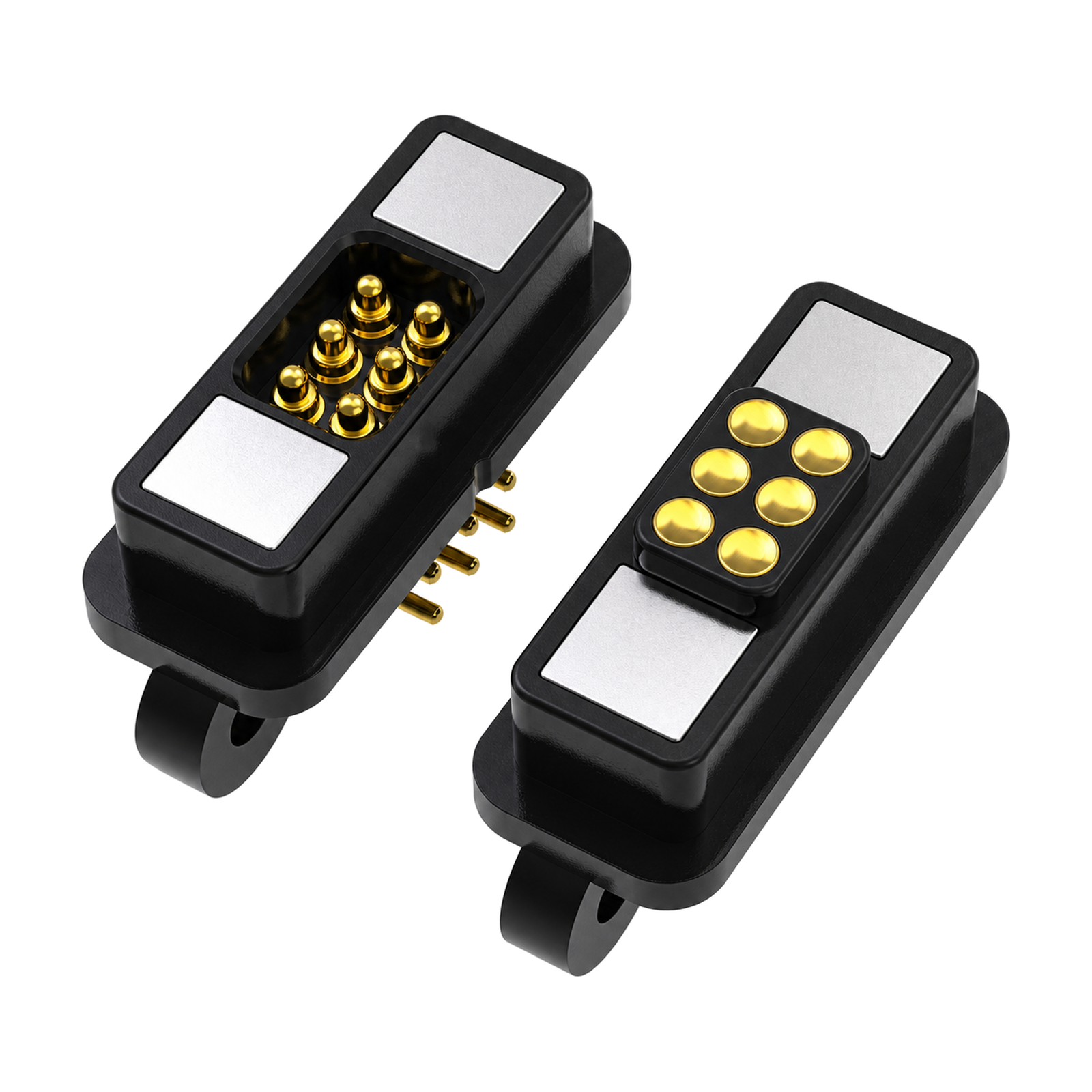

CUSTOM PROJECT REFERENCECustom 6-Pin Magnetic Connector, 2 A / 5 V – YT-MC-021SKU YT-MC-021Pin Count6Rated Current2 ARated Voltage5 V

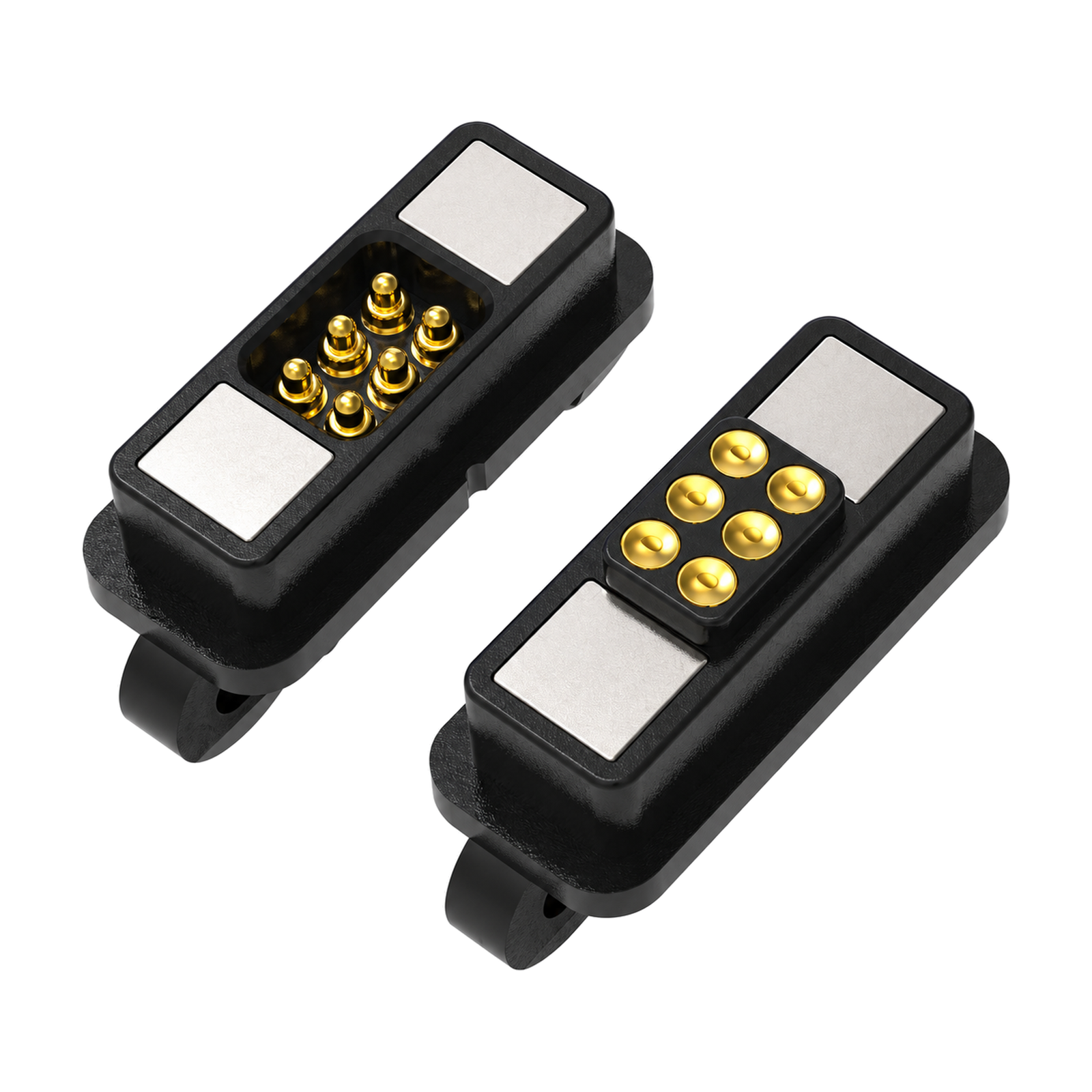

CUSTOM PROJECT REFERENCECustom 6-Pin Magnetic Connector, 2 A / 5 V – YT-MC-020SKU YT-MC-020Pin Count6Rated Current2 ARated Voltage5 V

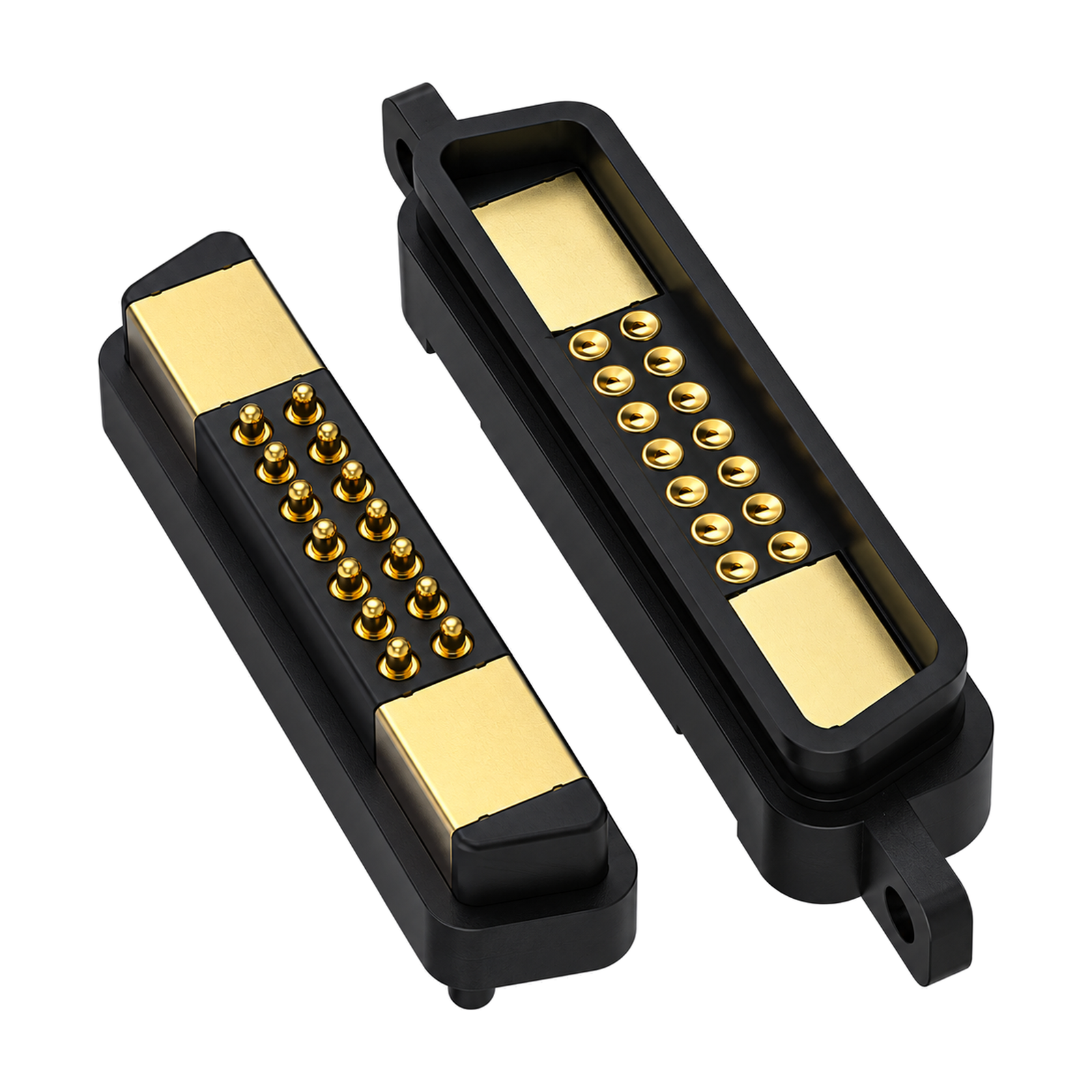

CUSTOM PROJECT REFERENCECustom 10+ Pin Magnetic Connector, 1.5 A / 12 V – YT-MC-019SKU YT-MC-019Pin Count10 pins and aboveRated Current1.5 ARated Voltage12 VPROJECT EVALUATION
What we confirm before development
Magnetic and electrical design
Pin assignment, current, voltage, magnetic force, release direction and short-circuit protection are project-specific.
Assembly validation
Alignment, self-location, release action, temperature rise and environmental conditions are checked in the real device.
ENGINEERING FAQ
Magnetic Connector selection questions
Concise answers for product teams evaluating a custom precision-contact or magnetic-connection project.
What is a custom magnetic connector?
Custom magnetic connection interfaces for PCB, FPC, enclosure or module integration. The final design is released only after the project requirements are confirmed.
Which specifications help select a magnetic connector?
Start with pin count, shape, function, installation space, electrical assignment, operating environment and expected service life. Use the filters as a reference, then confirm the full requirement with engineering.
Are the listed magnetic connectors customizable?
Yes. The listed products are customer case references. Dimensions, materials, plating, cable, pin assignment and verification requirements can be reviewed for a new project.
START A PROJECT
Need a connection solution built around your device?
Share your drawings, application and target requirements with Bella for an engineering review.
