Pin count and pitch
Pin count, center spacing, array layout and polarization are confirmed against PCB and functional definitions.
SPRING-LOADED CONNECTOR SYSTEMS

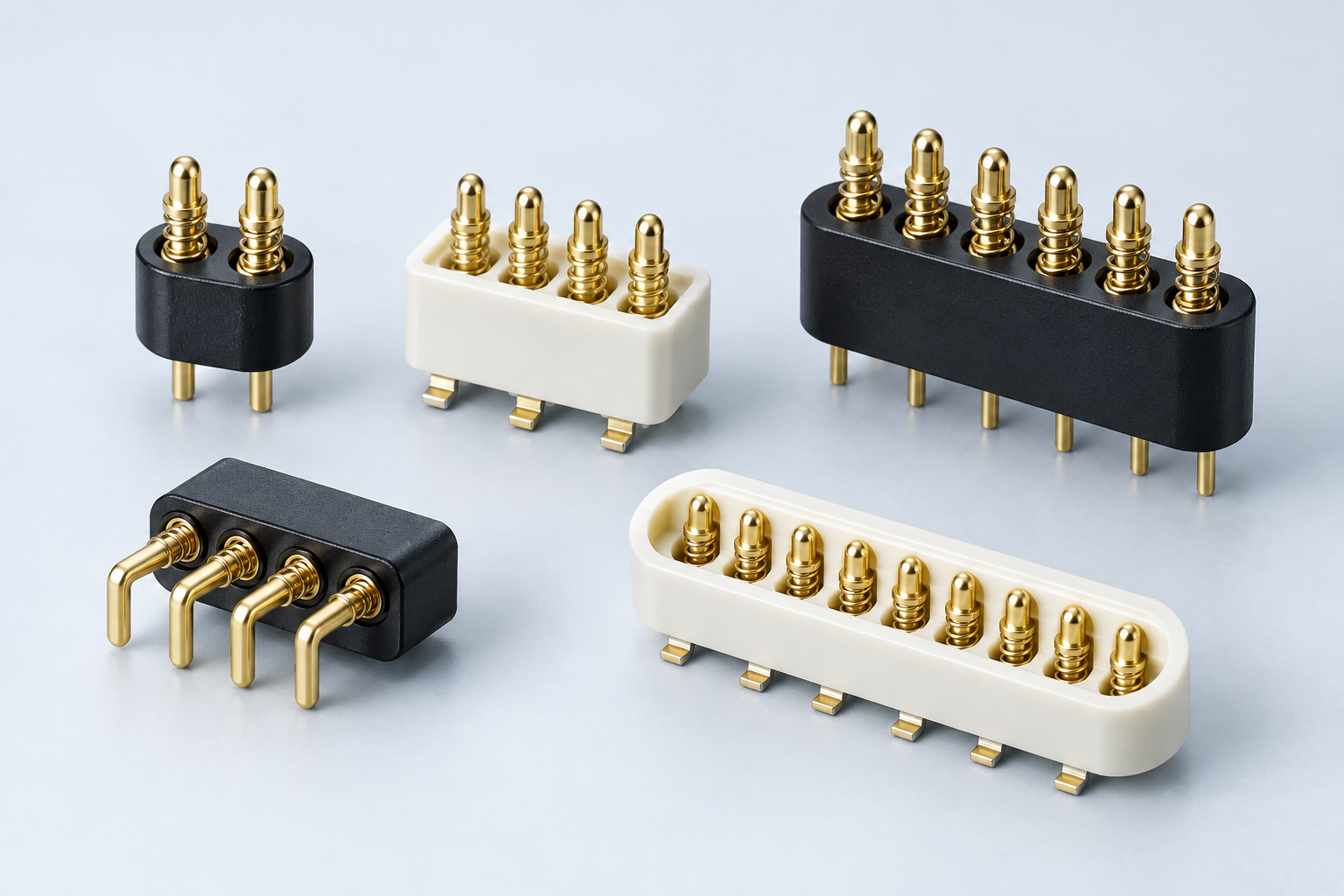

Custom Pogo Pin Connectors
Custom multi-pin connector assemblies engineered around pitch, pin count, PCB layout, plastic housing and device integration.
PRODUCT SELECTOR
Filter pogo pin connectors by product type
The filter structure follows the same five-family classification used on the Chinese catalog. A matching case is a development reference, not a guaranteed drop-in design.
105 matching project referencesPage 1 of 9
CUSTOM PROJECT REFERENCECustom 10+ Pin Pogo Pin Connector – YT-PPC-118SKU YT-PPC-118Pin Count10 pins and above

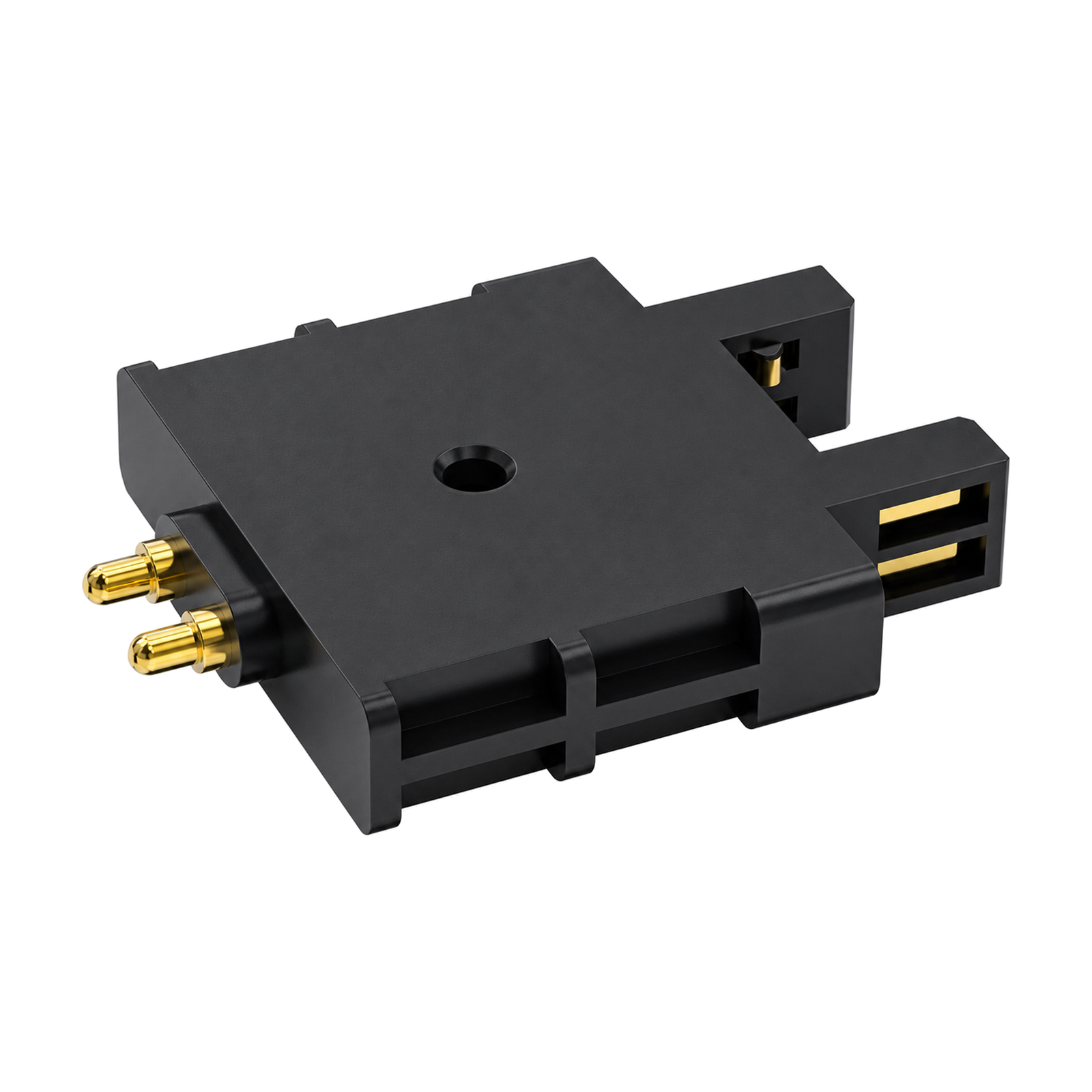

CUSTOM PROJECT REFERENCECustom 2-Pin Pogo Pin Connector, 4 A / 12 V – YT-PPC-117SKU YT-PPC-117Pin Count2Rated Current4 ARated Voltage12 V

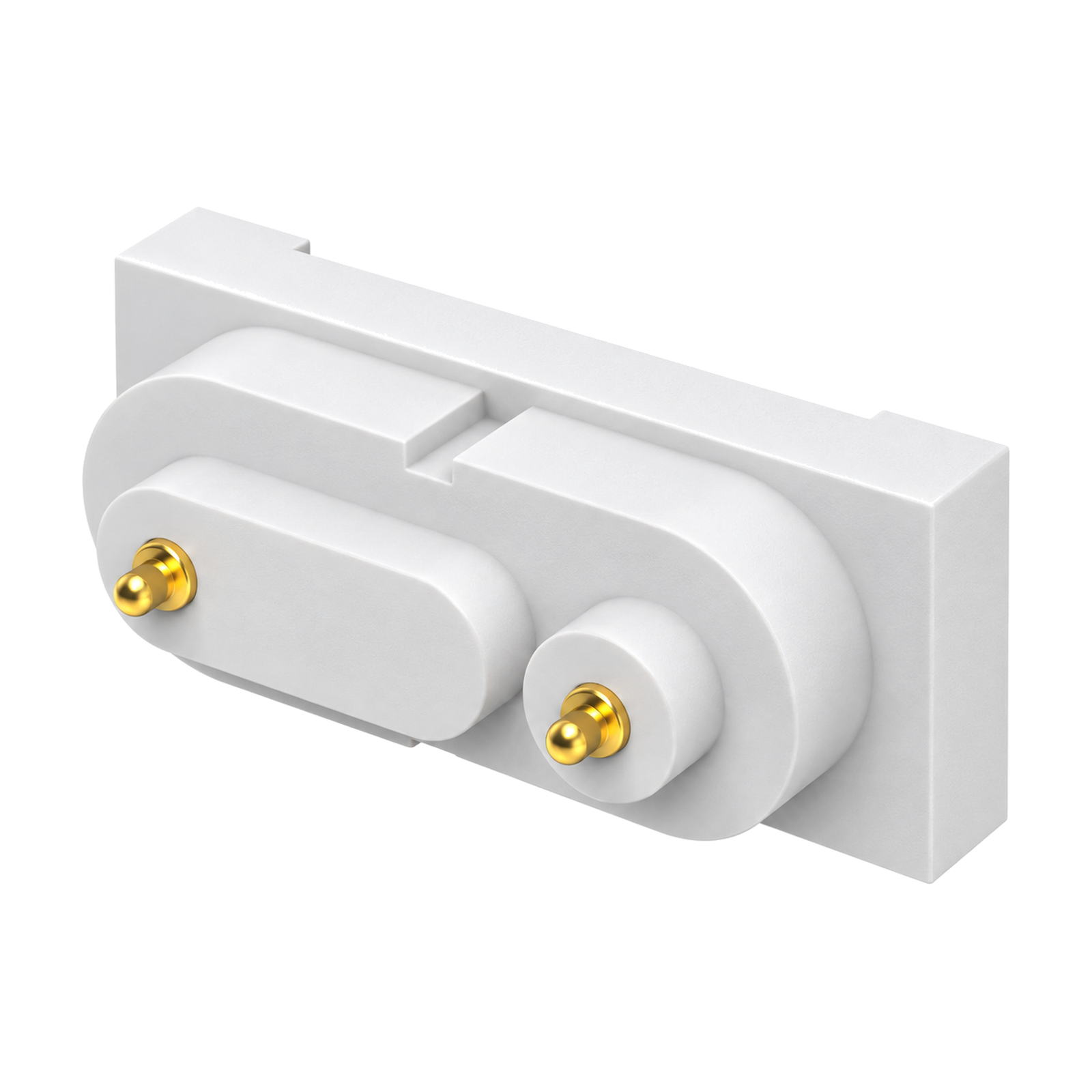

CUSTOM PROJECT REFERENCECustom 2-Pin Pogo Pin Connector, 1 A / 5 V – YT-PPC-116SKU YT-PPC-116Pin Count2Rated Current1 ARated Voltage5 V

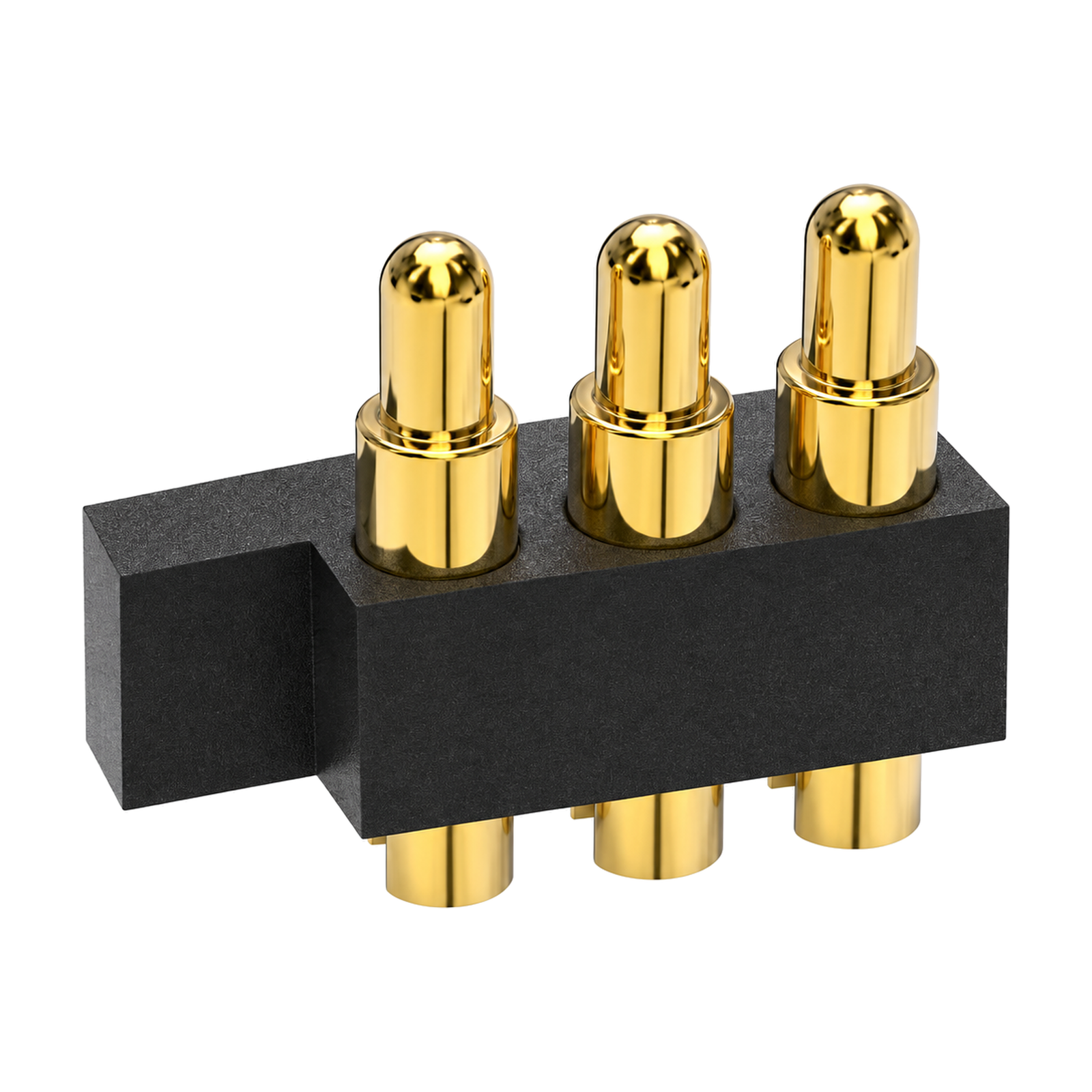

CUSTOM PROJECT REFERENCECustom 3-Pin Pogo Pin Connector, 4.5 A / 12 V – YT-PPC-115SKU YT-PPC-115Pin Count3Rated Current4.5 ARated Voltage12 V

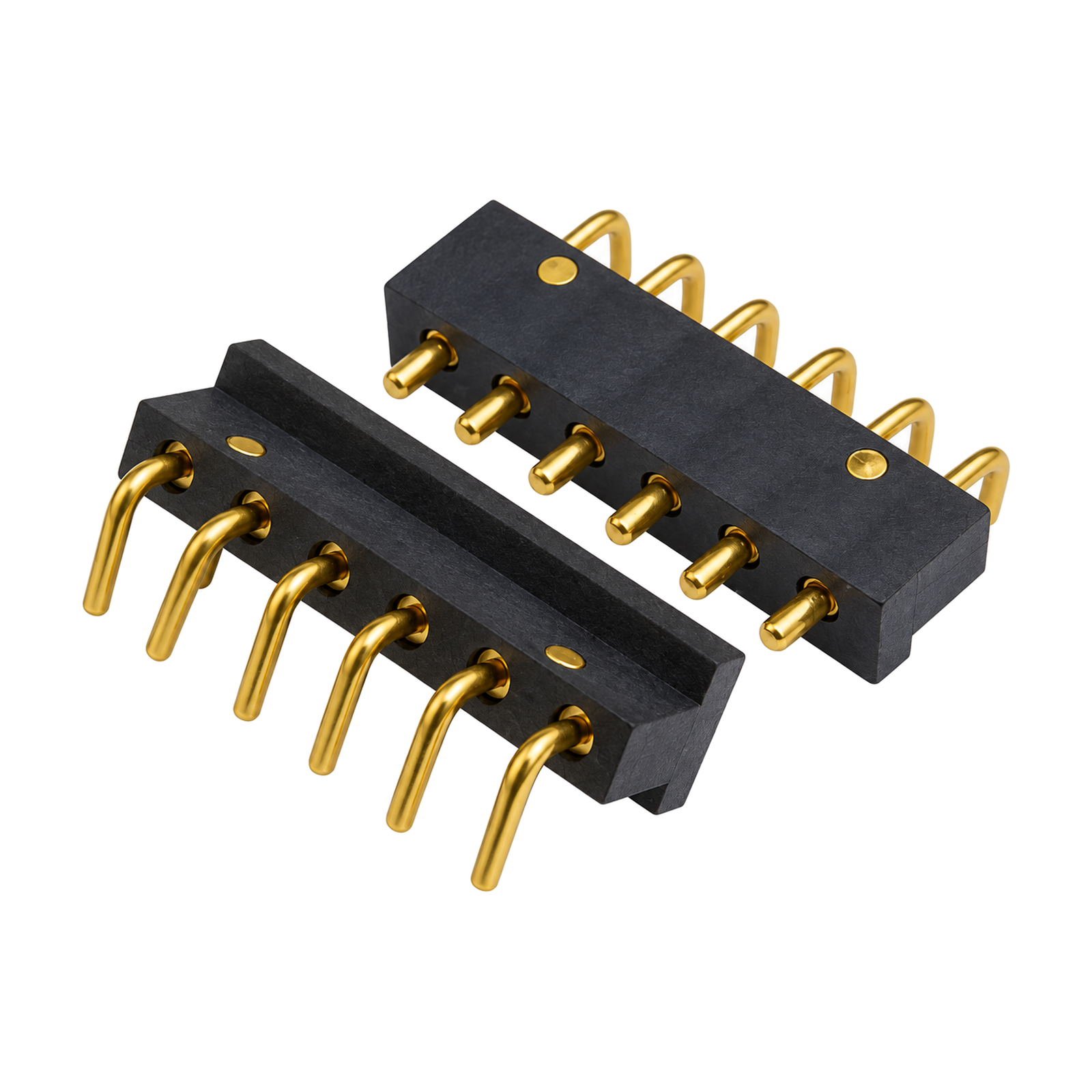

CUSTOM PROJECT REFERENCECustom 6-Pin Right-Angle Pogo Pin Connector, 1.5 A / 12 V – YT-PPC-114SKU YT-PPC-114Pin Count6Rated Current1.5 ARated Voltage12 V

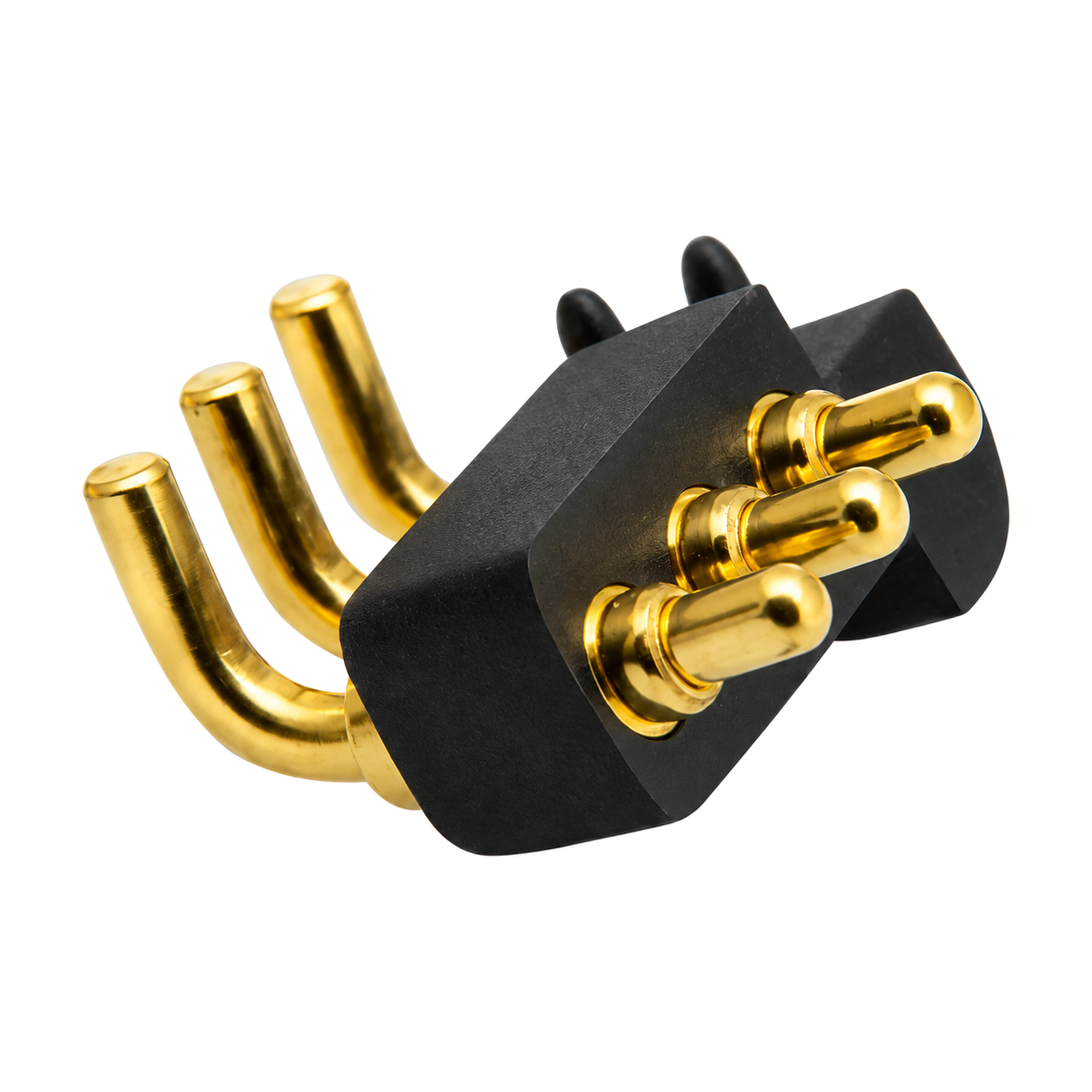

CUSTOM PROJECT REFERENCECustom 3-Pin 2.20 mm Right-Angle Pogo Pin Connector, 8 A / 12 V – YT-PPC-113SKU YT-PPC-113Pin Count3Rated Current8 ARated Voltage12 V

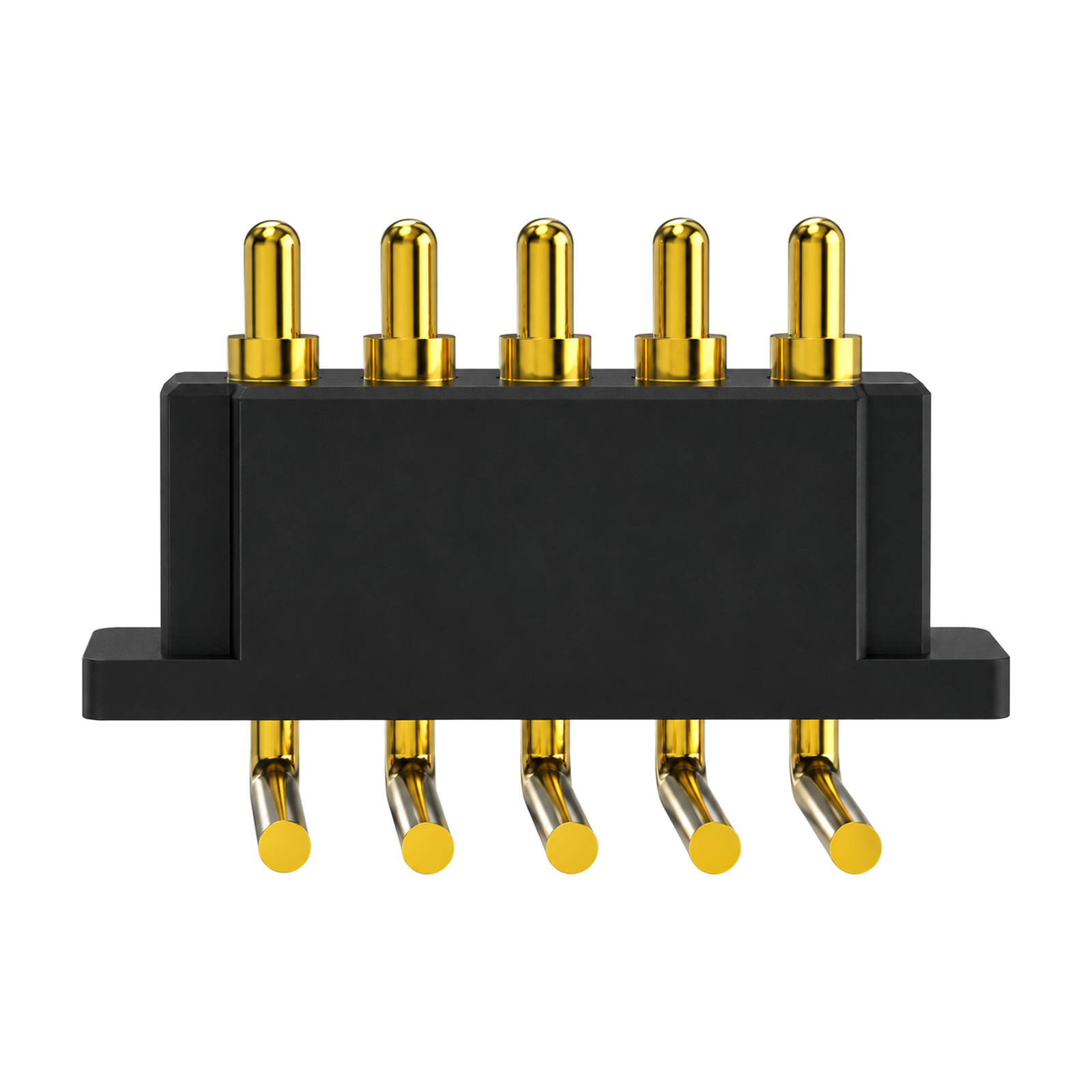

CUSTOM PROJECT REFERENCECustom 5-Pin Right-Angle Pogo Pin Connector, 8 A / 12 V – YT-PPC-112SKU YT-PPC-112Pin Count5Rated Current8 ARated Voltage12 V

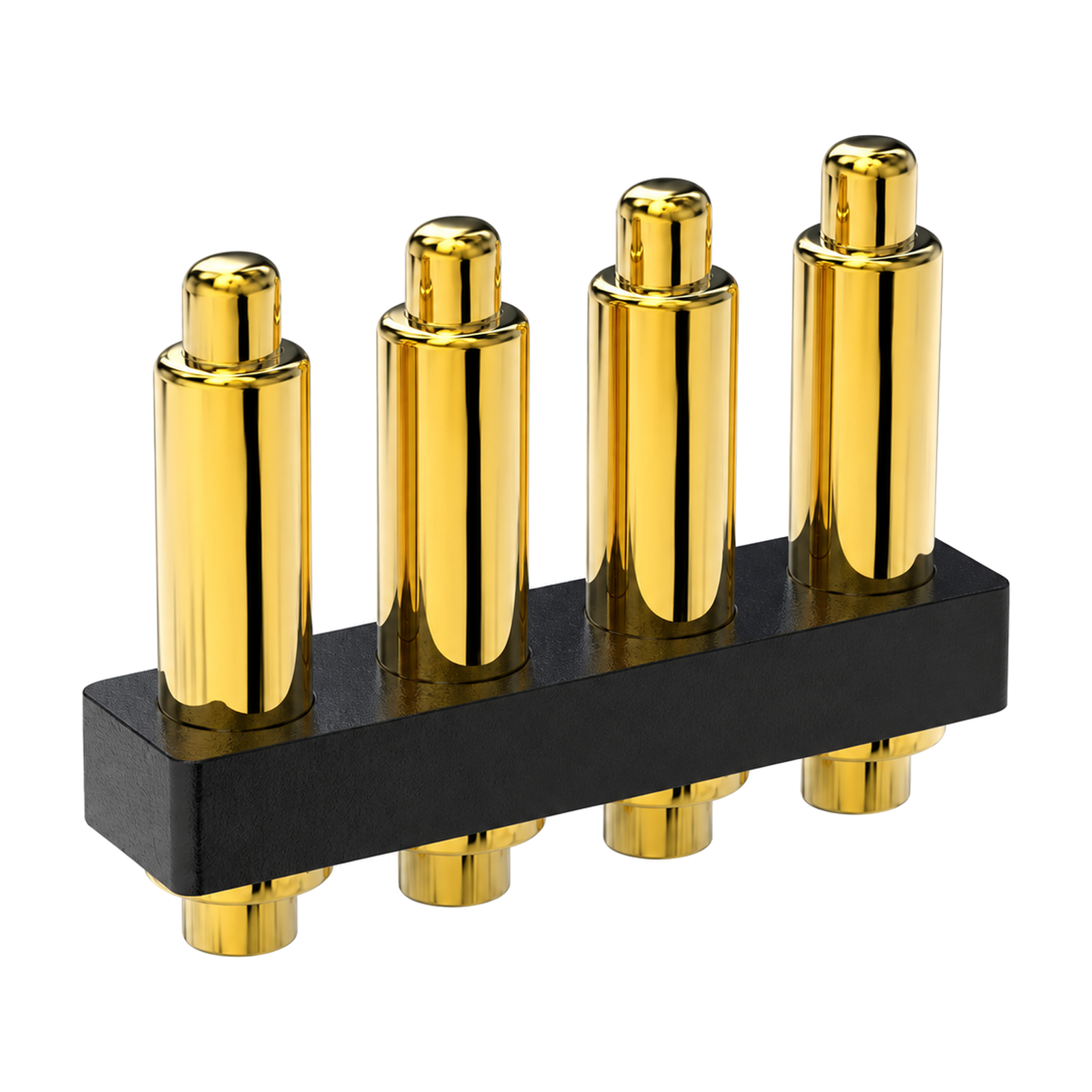

CUSTOM PROJECT REFERENCECustom 4-Pin DIP Through-Hole Pogo Pin Connector, 1 A / 12 V – YT-PPC-111SKU YT-PPC-111Pin Count4Rated Current1 ARated Voltage12 V

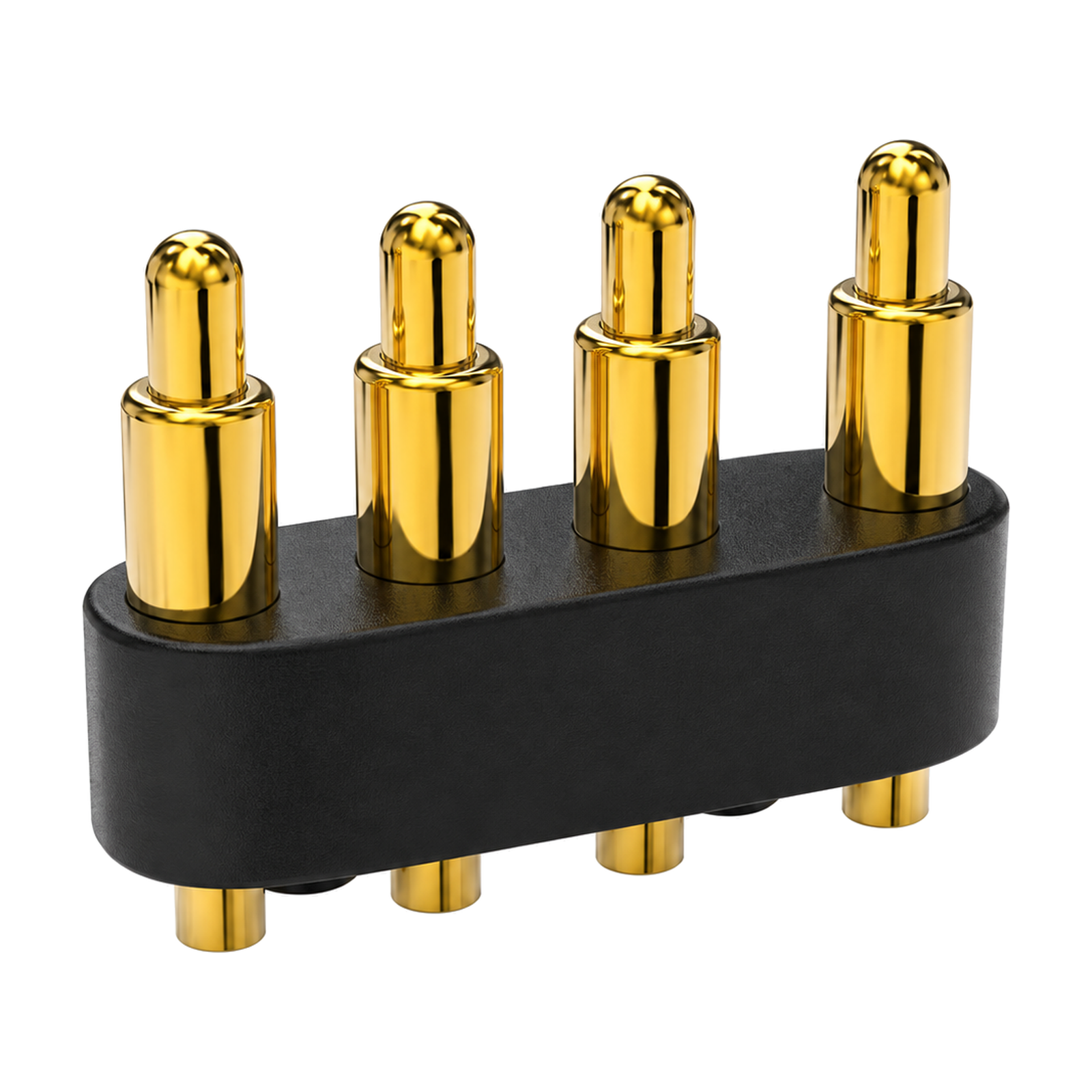

CUSTOM PROJECT REFERENCECustom 4-Pin DIP Through-Hole Pogo Pin Connector, 1.5 A / 12 V – YT-PPC-110SKU YT-PPC-110Pin Count4Rated Current1.5 ARated Voltage12 V

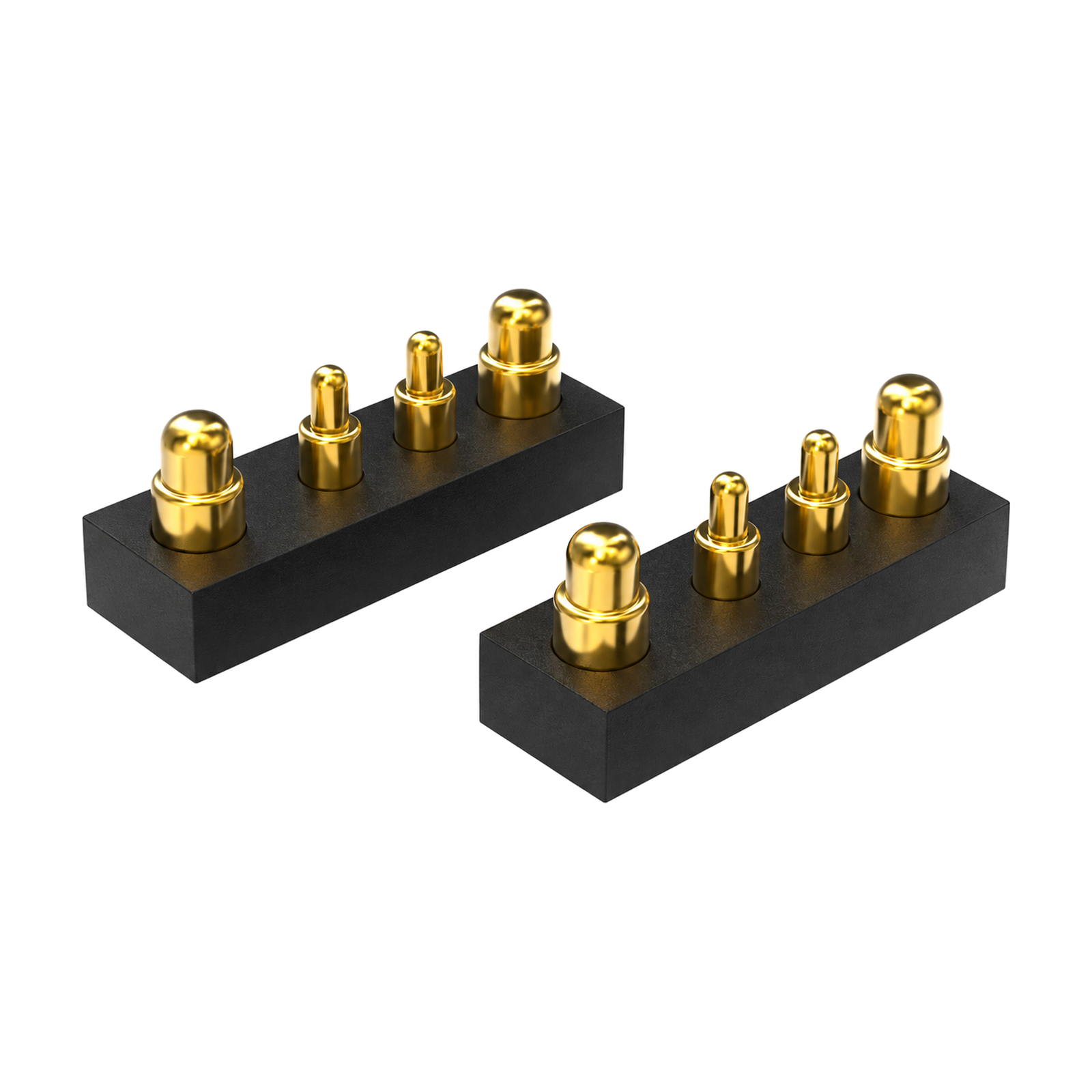

CUSTOM PROJECT REFERENCECustom 4-Pin DIP Through-Hole Pogo Pin Connector, 1.2 A / 12 V – YT-PPC-109SKU YT-PPC-109Pin Count4Rated Current1.2 ARated Voltage12 V

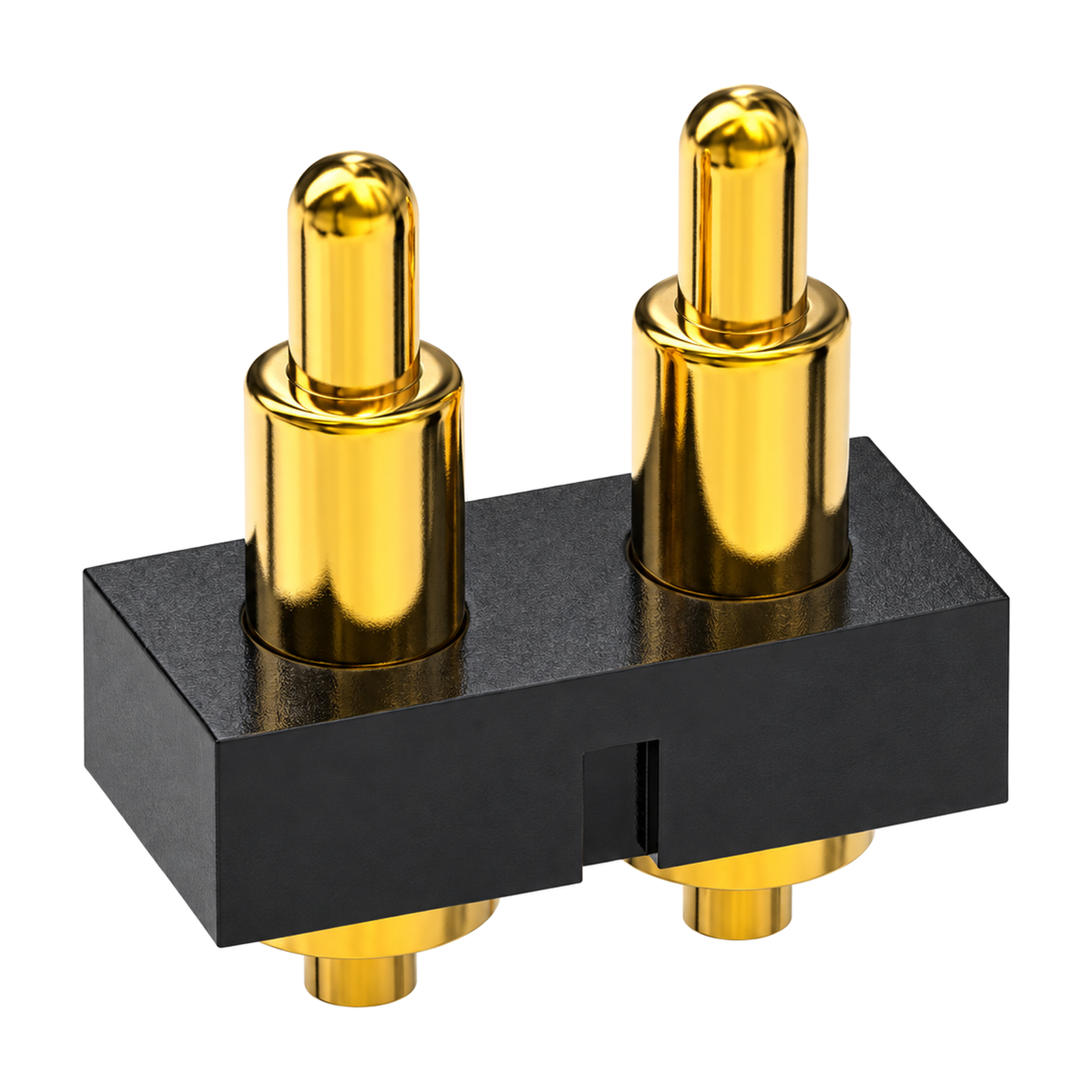

CUSTOM PROJECT REFERENCECustom 2-Pin 2.54 mm DIP Through-Hole Pogo Pin Connector, 1 A / 36 V – YT-PPC-108SKU YT-PPC-108Pin Count2Rated Current1 ARated Voltage36 V
CUSTOM PROJECT REFERENCECustom 10+ Pin SMT Pogo Pin Connector, 5 A / 12 V – YT-PPC-107SKU YT-PPC-107Pin Count10 pins and aboveRated Current5 ARated Voltage12 VPROJECT EVALUATION
What we confirm before development
Housing and installation
DIP, SMT, right-angle, multi-row and locating features can be evaluated with a custom molded housing.
Power and signal assignment
Every contact is reviewed for its current, signal, grounding and reliability requirements.
ENGINEERING FAQ
Pogo Pin Connector selection questions
Concise answers for product teams evaluating a custom precision-contact or magnetic-connection project.
What is a custom pogo pin connector?
Custom multi-pin connector assemblies engineered around pitch, pin count, PCB layout, plastic housing and device integration. The final design is released only after the project requirements are confirmed.
Which specifications help select a pogo pin connector?
Start with mounting & pitch, pin count, installation space, electrical assignment, operating environment and expected service life. Use the filters as a reference, then confirm the full requirement with engineering.
Are the listed pogo pin connectors customizable?
Yes. The listed products are customer case references. Dimensions, materials, plating, cable, pin assignment and verification requirements can be reviewed for a new project.
START A PROJECT
Need a connection solution built around your device?
Share your drawings, application and target requirements with Bella for an engineering review.
