Engineering review
Application, installation space, mating action, electrical definition, environment and expected volume are reviewed together.
INTEGRATED INTERNAL CAPABILITIES
From precision contacts to complete magnetic cable assemblies
Yongtan coordinates pogo pin production, magnetic head manufacturing, injection molding, wire processing, soldering, magnetization, assembly, CCD visual inspection and reliability verification within one manufacturing operation.
Precision component production
Pogo pin components, contact structures, magnetic heads and supporting parts are produced to the confirmed drawings.
Molding & cable processing
Plastic structures, wire preparation, soldering, overmolding and appearance requirements are coordinated around the assembly.
Magnetization & assembly
Magnetic orientation, positioning, polarity, contact alignment and cable-head integration are controlled during assembly.
CCD inspection
Visual inspection supports checks for agreed dimensions, assembly position, appearance and process consistency.

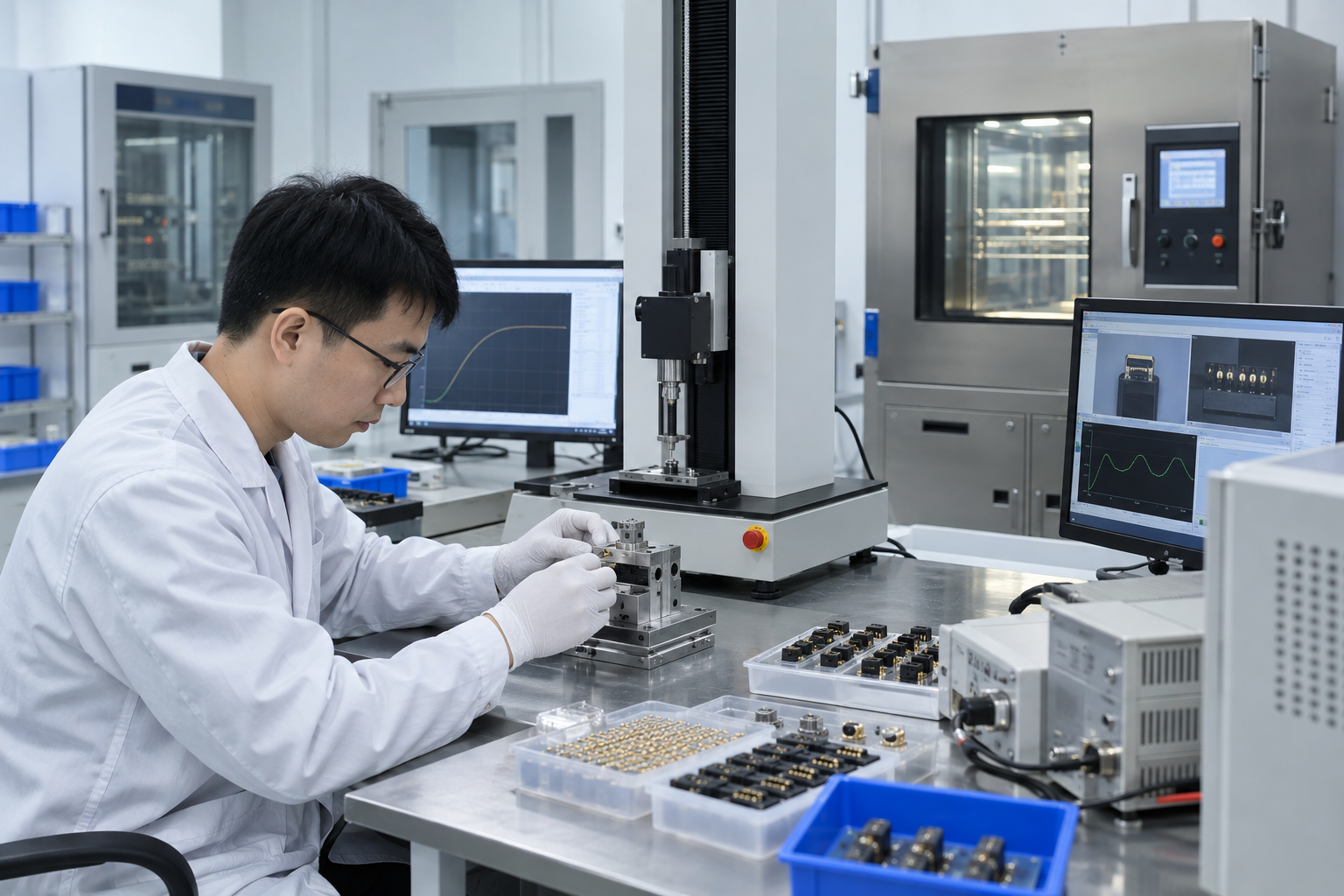

Reliability verification
Applicable electrical, mechanical and environmental checks are defined for the specific product and project conditions.
PROJECT INPUTS
Information that connects design intent to a stable process
The production route is selected around the actual assembly instead of applying one generic process to every connector or cable.
Mechanical definition
2D or 3D drawings, available space, mating direction, retention, release behavior and assembly tolerances.
Electrical definition
Pin assignment, current, voltage, signal, grounding, resistance and temperature-rise requirements.
Materials and appearance
Contact materials, plating, molded resin, magnets, cable construction, color, surface and cosmetic limits.
Verification and volume
Sample stages, test conditions, reliability targets, acceptance criteria and expected production quantity.
CONTROLLED HANDOFFS
Engineering intent carried into production
Drawings, specifications and verification requirements remain the controlling references. Website content does not replace project-approved documents or inspection records.
- Approved product and process drawings
- Confirmed materials, plating and cable construction
- Key process and inspection points
- Defined test methods and acceptance criteria
- Change review before production implementation
ENGINEERING FAQ
Manufacturing and project-transfer questions
Concise answers for product teams evaluating a custom precision-contact or magnetic-connection project.
What does integrated manufacturing mean at Yongtan?
It means precision contacts, magnetic heads, molded structures, cable processing, soldering, magnetization, assembly, inspection and verification can be coordinated within one manufacturing operation.
Can Yongtan manufacture from a customer drawing?
Yes. The team reviews the drawing, mating space, electrical definition, materials, process feasibility and validation requirements before samples are confirmed.
How are engineering changes controlled?
Project-approved drawings, specifications, samples and verification requirements remain the controlling references when the design moves into production.
Which stages are checked during production?
Checks can cover incoming materials, key dimensions, assembly position, soldering, polarity, electrical continuity, appearance, CCD inspection and agreed reliability tests.
START A PROJECT
Need a connection solution built around your device?
Share your drawings, application and target requirements with Bella for an engineering review.
