Magnetic connector drawings and certificate files
Download verified 2-pin to 8-pin magnetic cable connector engineering references. The current library contains male and female structures with mounting ears, grouped by pin count and center pitch.
These PDF files are preliminary engineering references. Do not use them as production-release drawings until Yongtan confirms the applicable model, revision, dimensions, tolerances, materials and project status in writing.
2-pin to 8-pin magnetic connector references
The 2-pin set uses a 2.5 mm pitch. The 3-pin through 8-pin sets use a 2.54 mm pitch. Only the uniquely verified files are listed; misleading duplicate labels from the older resource page are not repeated.

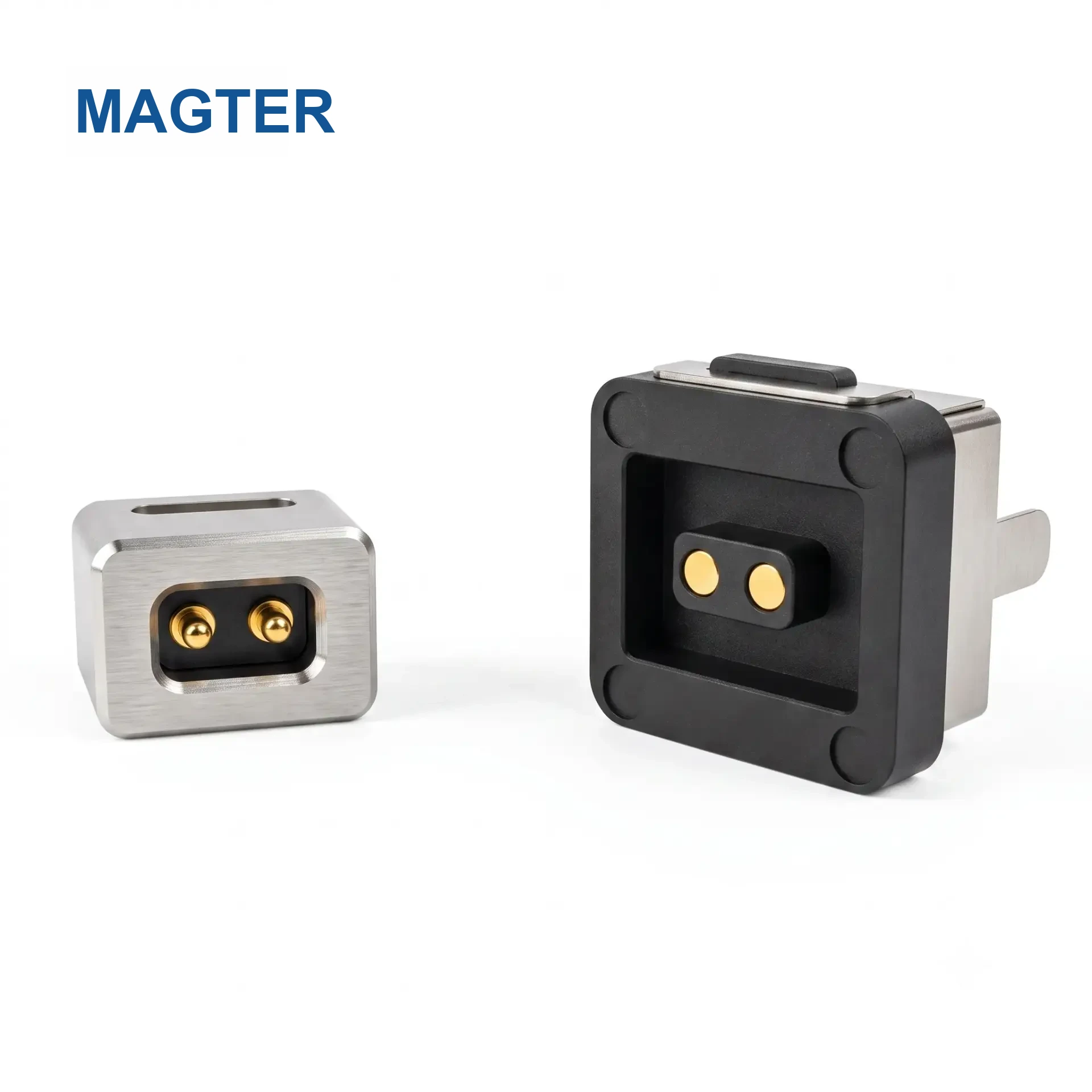

2-Pin Magnetic Cable Connector Drawings
2.5 mm center pitch · male and female structures with mounting ears
3-Pin Magnetic Cable Connector Drawings
2.54 mm center pitch · male and female structures with mounting ears
4-Pin Magnetic Cable Connector Drawings
2.54 mm center pitch · male and female structures with mounting ears
5-Pin Magnetic Cable Connector Drawings
2.54 mm center pitch · male and female structures with mounting ears
6-Pin Magnetic Cable Connector Drawings
2.54 mm center pitch · male and female structures with mounting ears
7-Pin Magnetic Cable Connector Drawings
2.54 mm center pitch · male and female structures with mounting ears
8-Pin Magnetic Cable Connector Drawings
2.54 mm center pitch · male and female structures with mounting ears
IATF 16949:2016 original certificate
Certificate holder: Dongguan Yongtan New Energy Co., Ltd., an affiliated manufacturing entity within Yongtan's manufacturing operations.
Scope: Manufacturing of charging connector contacts. Product design excluded. Certificate No. RA02-0781/2026 · IATF No. 0612332 · valid through 20 August 2029.
The certificate applies only to the holder and scope written on the original document; it is not a blanket certification of Shenzhen Yongtan Electronics or every product shown on this website.
Certificate PDF available
Open the original document to verify the certificate holder, scope, identifiers and validity dates.
