Interface and shielding
The input, cable construction, shielding, length and jacket are selected around the required protocol and environment.
CUSTOM MAGNETIC DATA CABLES
Custom 4-Pin Magnetic Data Cable, 1 A / 5 V – YT-MDC-036
SKU YT-MDC-036
Custom magnetic cable assemblies developed for charging plus defined data or signal transmission tasks.
Pin definition
Power, data, signal and ground assignments are confirmed with the device-side magnetic interface.
System verification
Charging, communication and mechanical reliability are verified with the target device and agreed test conditions.
VERIFIED SOURCE DATA
Product specifications
Values below are translated from the existing factory-reviewed product record. Final tolerances, test methods and acceptance criteria follow the project-approved drawing and specification.
| Yongtan Model | YT-MDC-036 |
|---|---|
| Pin Count | 4 |
| Working Stroke | 0.8 mm |
| Rated Current | 1 A |
| Rated Voltage | 5 V |
| Contact Resistance | 2MΩ max. |
| Insulation Resistance | 300V/DC 10MΩ min. |
| Spring Force | 60gfMax |
| Mechanical Life | 10000 cycles or more |
| Operating Temperature | -30°~85° |
PRODUCT DOCUMENTATION

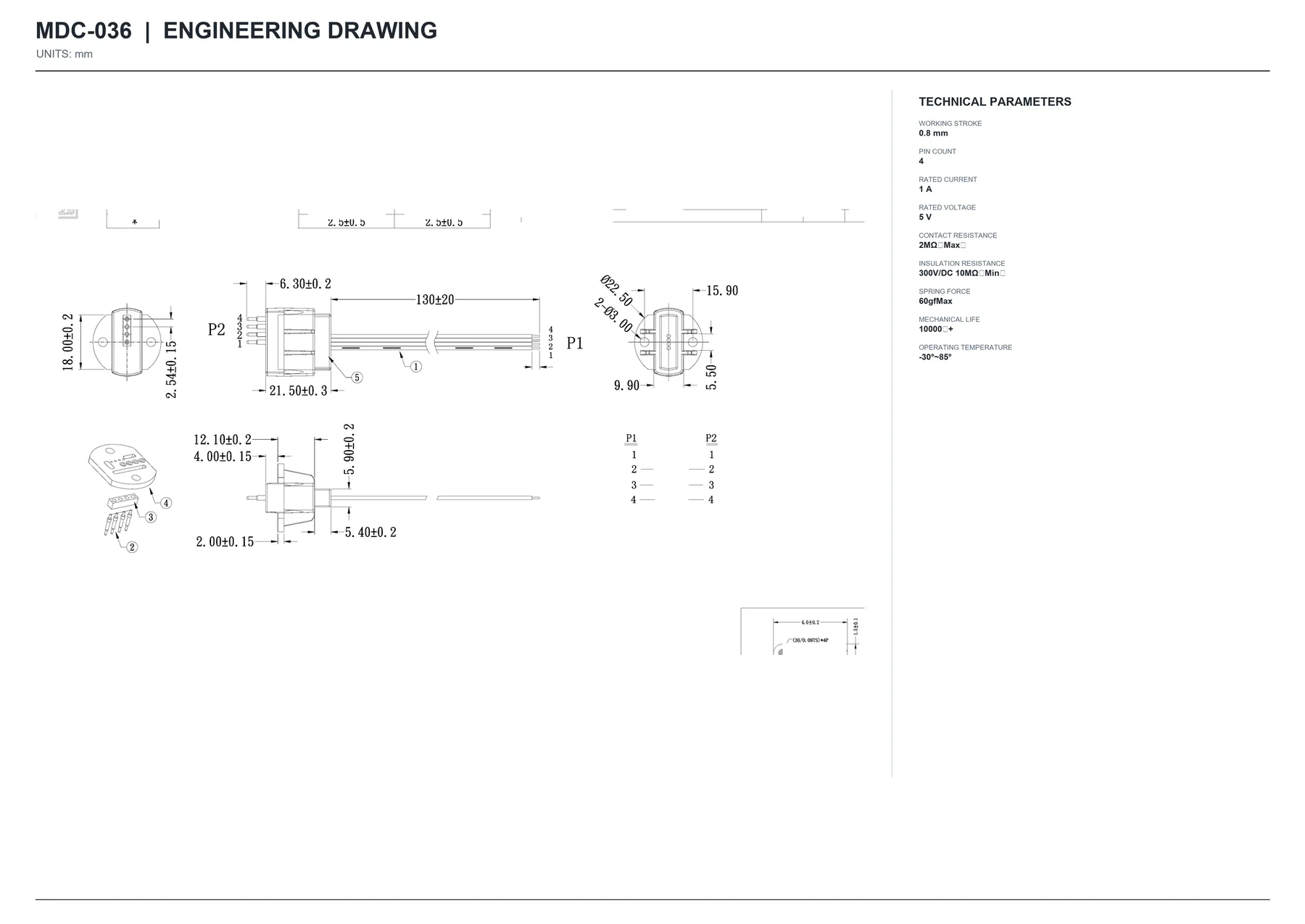

Product images & engineering references
Open any image to view the original file. A drawing is displayed only when the supplied engineering archive links it to the same product and contains no model-label conflict; no drawing or dimension is generated from appearance alone.
BEFORE QUOTATION
Information that helps us evaluate the project
Send the available level of detail. Our team can identify the remaining questions during the engineering review.
- 2D or 3D drawings and available installation space
- Pin assignment, voltage, current, signal or protocol
- Force, travel, magnetic attraction and release behavior
- Materials, plating, cable, appearance and environmental requirements
- Reliability target, sample quantity and estimated annual volume
RELATED CASES
More Magnetic Data Cables references
CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Data Cable, 1 A / 5 V – YT-MDC-035SKU YT-MDC-035Pin Count2Rated Current1 ARated Voltage5 V
CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Data Cable, 0.75 A / 5 V – YT-MDC-034SKU YT-MDC-034Pin Count2Rated Current0.75 ARated Voltage5 V
CUSTOM PROJECT REFERENCECustom 4-Pin Magnetic Data Cable, 0.22 mA / 5 V – YT-MDC-033SKU YT-MDC-033Pin Count4Rated Current0.22 mARated Voltage5 V
CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Data Cable, 0.5 A / 5 V – YT-MDC-032SKU YT-MDC-032Pin Count2Rated Current0.5 ARated Voltage5 VENGINEERING FAQ
Questions about this magnetic data cable
Concise answers for product teams evaluating a custom precision-contact or magnetic-connection project.
What type of product is YT-MDC-036?
YT-MDC-036 is shown as a custom magnetic data cable customer case reference. The descriptive title and specification table identify its product family and verified source parameters.
Can the specifications of this reference be changed?
Yes. The displayed values describe the referenced case. Final dimensions, electrical performance, materials, plating and validation conditions are confirmed for the new application.
Is an engineering drawing available for this model?
A drawing is displayed only when the supplied archive links it to the same model without a label conflict. If no drawing appears, request the applicable document from Bella.
