Interface and shielding
The input, cable construction, shielding, length and jacket are selected around the required protocol and environment.
CUSTOM MAGNETIC DATA CABLES
Custom Magnetic Data Cables
Custom magnetic cable assemblies developed for charging plus defined data or signal transmission tasks.
PRODUCT SELECTOR
Filter magnetic data cables by product type
The filter structure follows the same five-family classification used on the Chinese catalog. A matching case is a development reference, not a guaranteed drop-in design.
55 matching project referencesPage 2 of 5

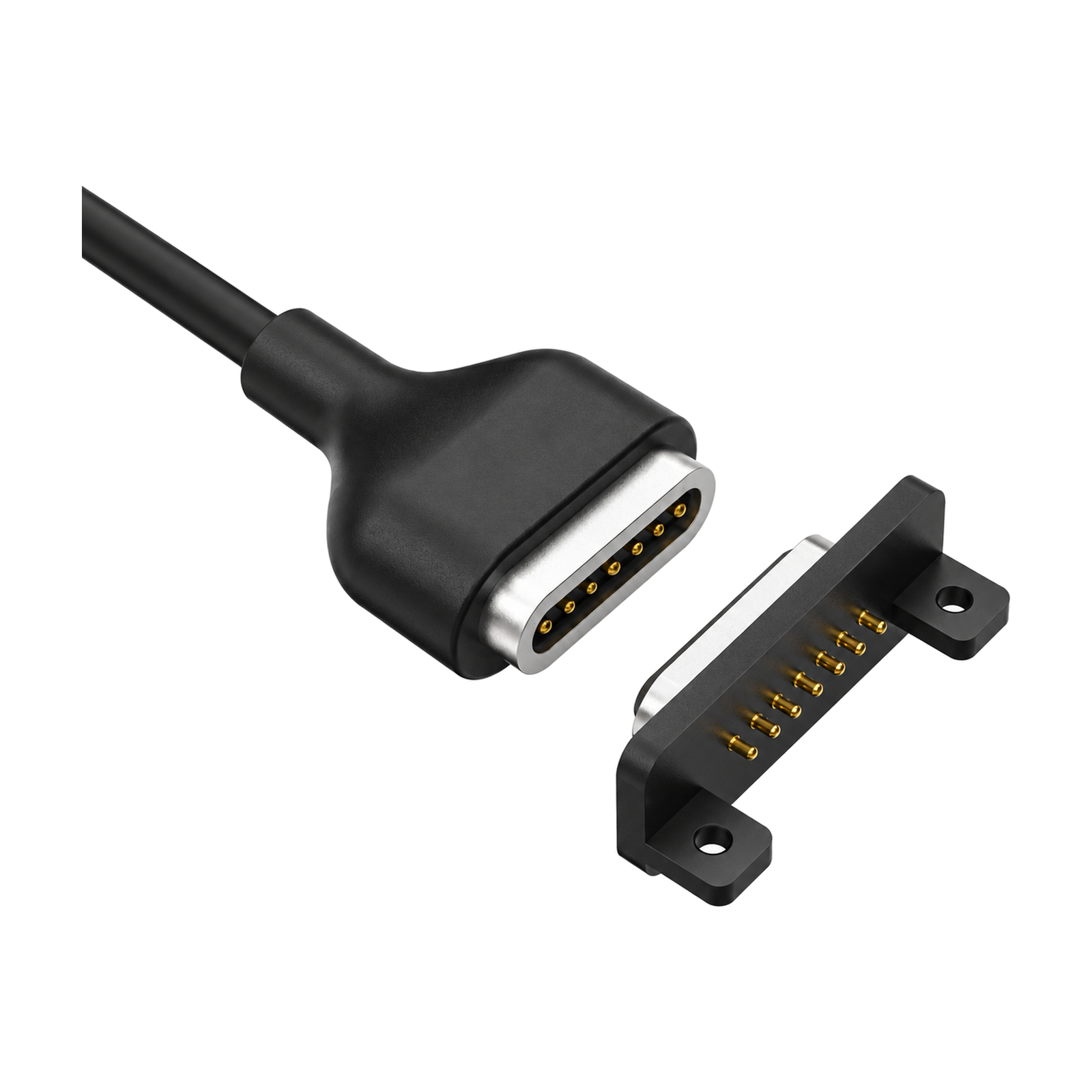

CUSTOM PROJECT REFERENCECustom Racetrack 7-Pin Magnetic Data Cable, 3 A / 24 V – YT-MDC-023SKU YT-MDC-023Pin Count7Rated Current3 ARated Voltage24 V

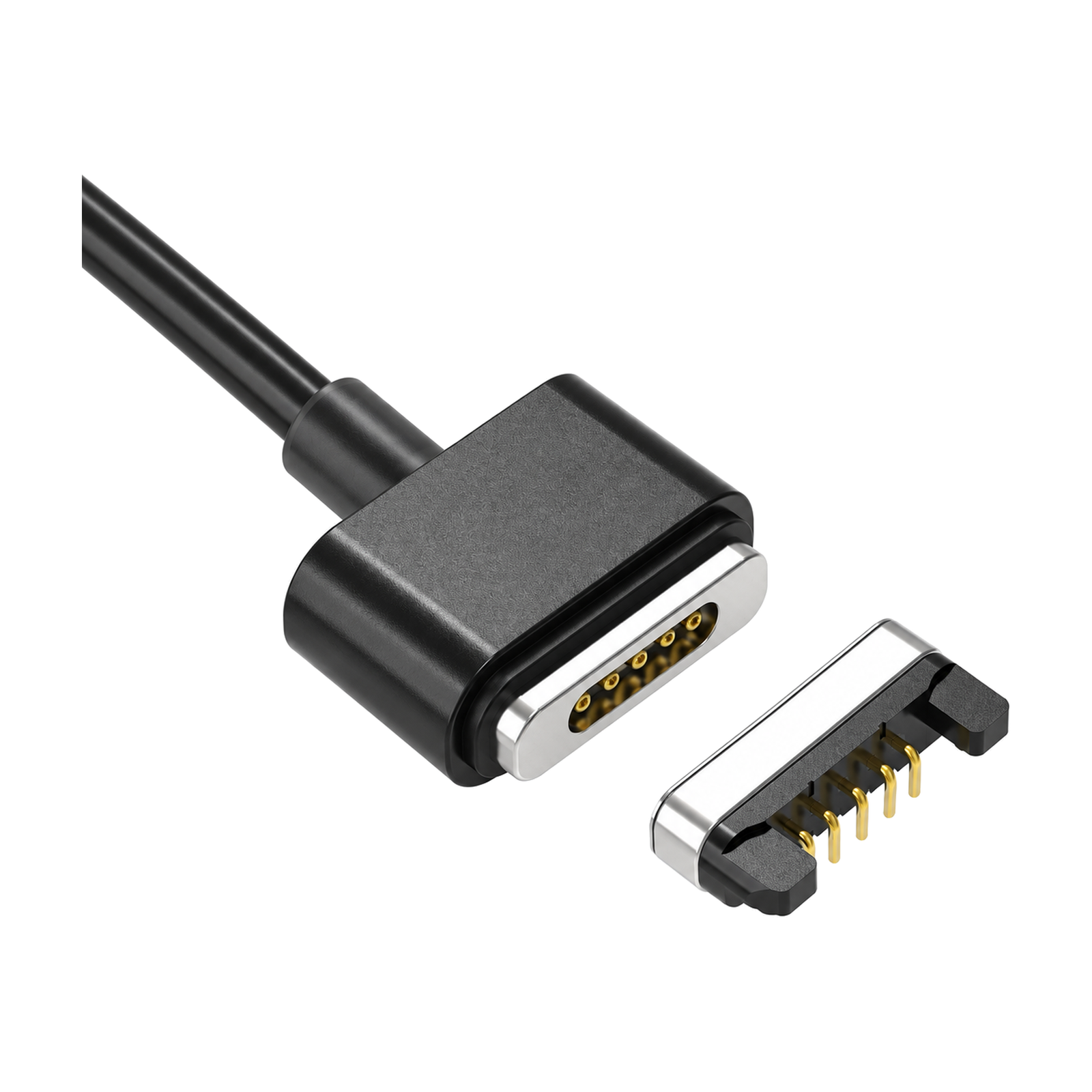

CUSTOM PROJECT REFERENCECustom Racetrack 5-Pin Magnetic Data Cable, 2 A / 5 V – YT-MDC-022SKU YT-MDC-022Pin Count5Rated Current2 ARated Voltage5 V

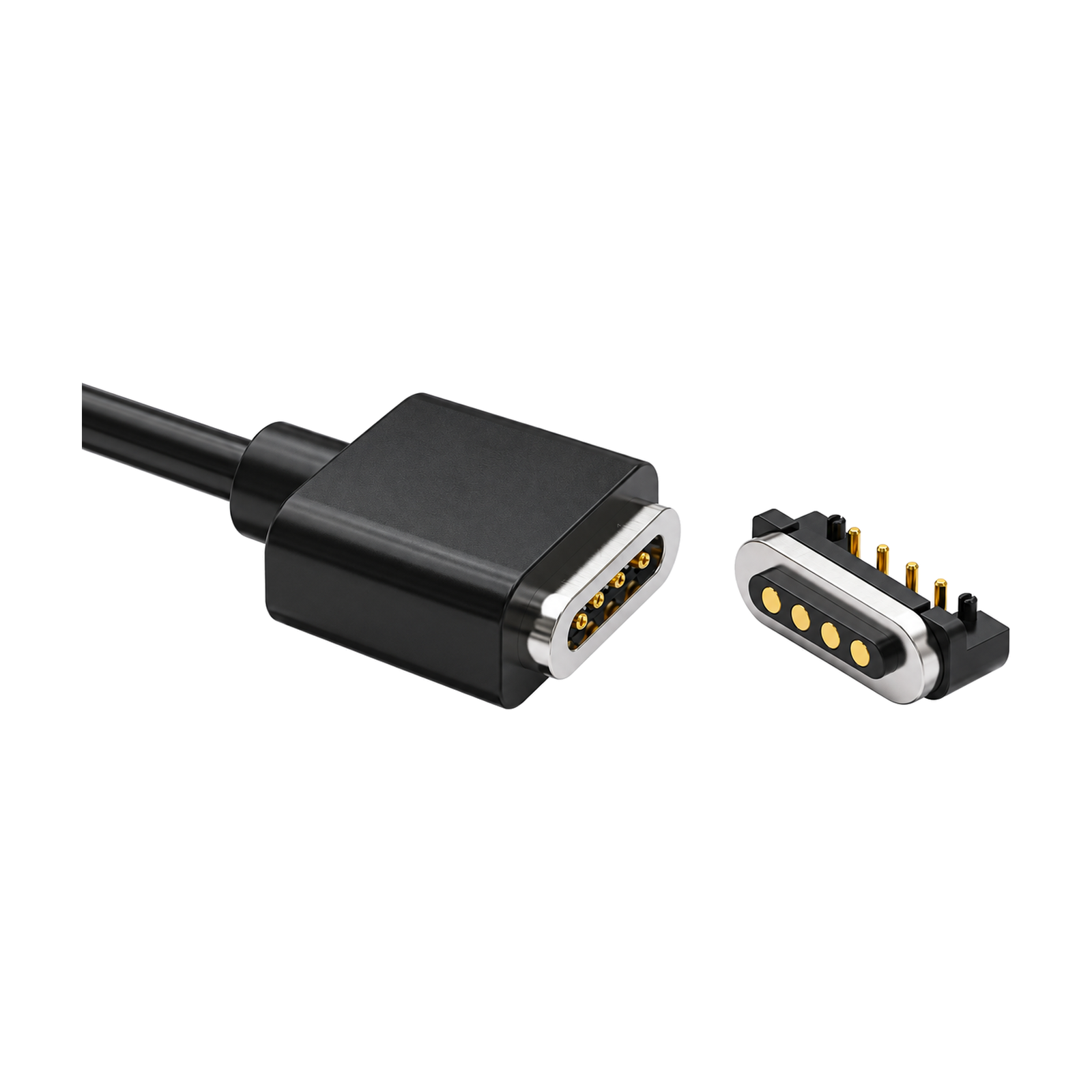

CUSTOM PROJECT REFERENCECustom Racetrack 4-Pin Magnetic Data Cable, 3 A / 5 V – YT-MDC-021SKU YT-MDC-021Pin Count4Rated Current3 ARated Voltage5 V

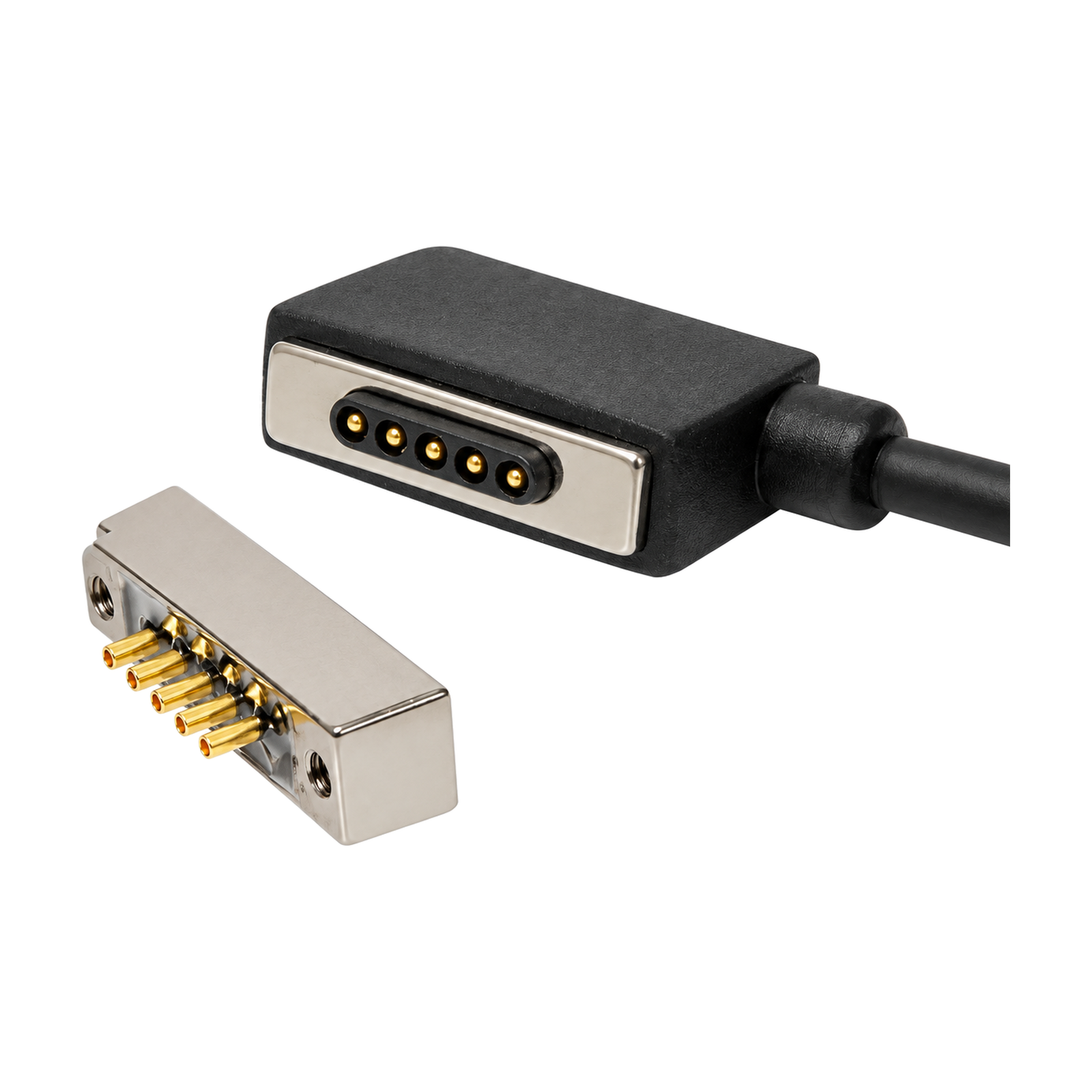

CUSTOM PROJECT REFERENCECustom Racetrack 5-Pin Magnetic Data Cable, 2 A / 12 V – YT-MDC-020SKU YT-MDC-020Pin Count5Rated Current2 ARated Voltage12 V

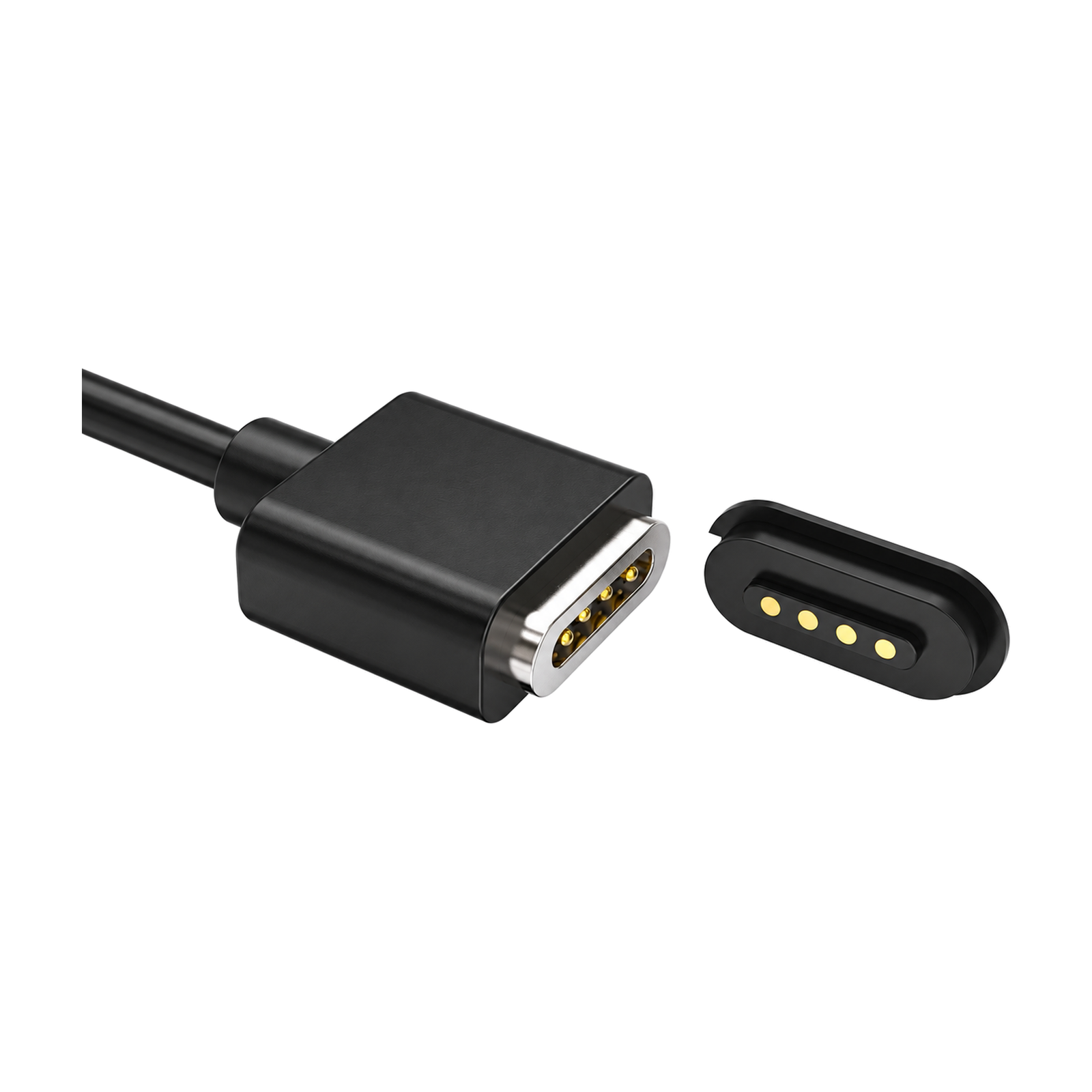

CUSTOM PROJECT REFERENCECustom Racetrack 4-Pin Magnetic Data Cable, 3 A / 5 V – YT-MDC-019SKU YT-MDC-019Pin Count4Rated Current3 ARated Voltage5 V

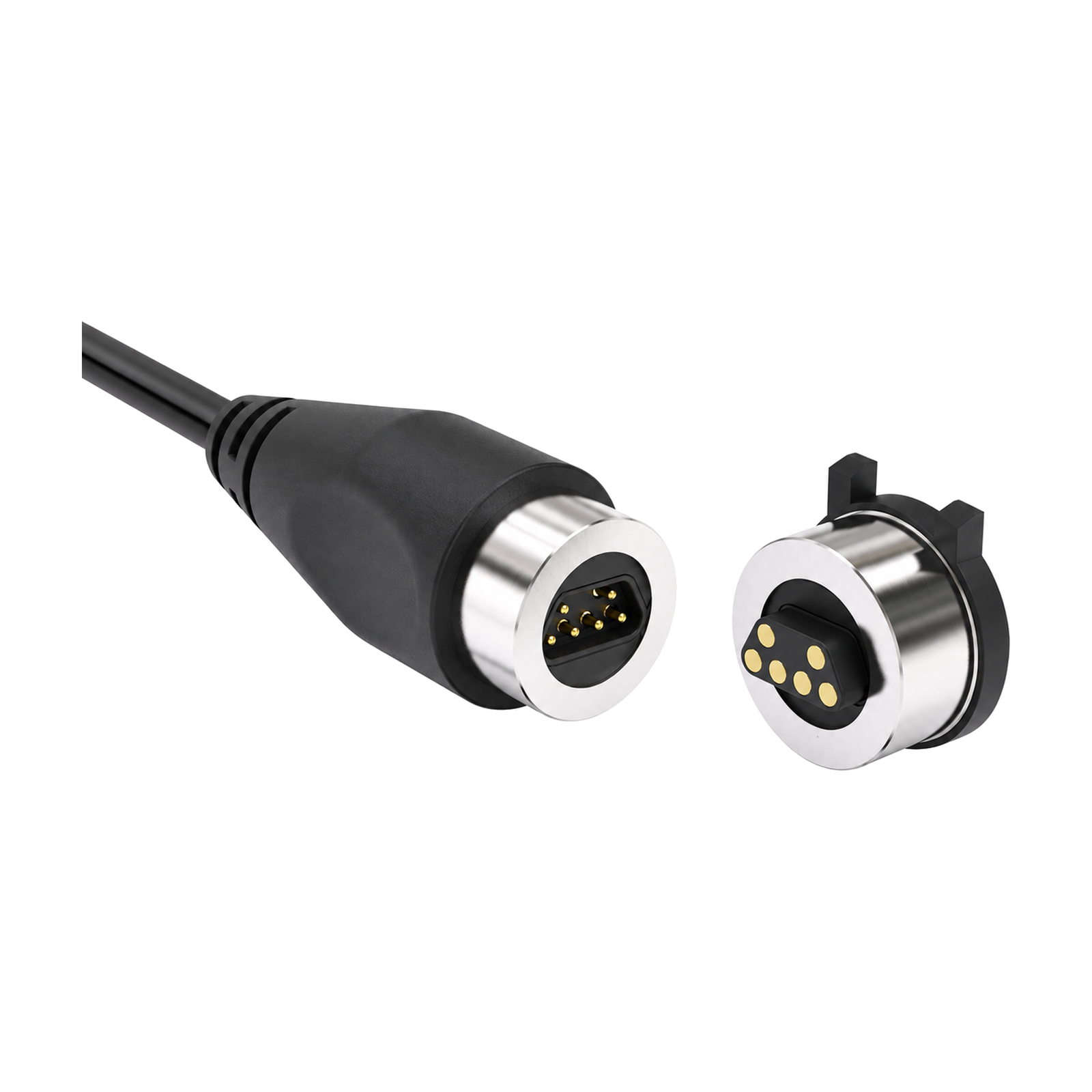

CUSTOM PROJECT REFERENCECustom Round 6-Pin Magnetic Data Cable, 1 A / 5 V – YT-MDC-018SKU YT-MDC-018Pin Count6Rated Current1 ARated Voltage5 V

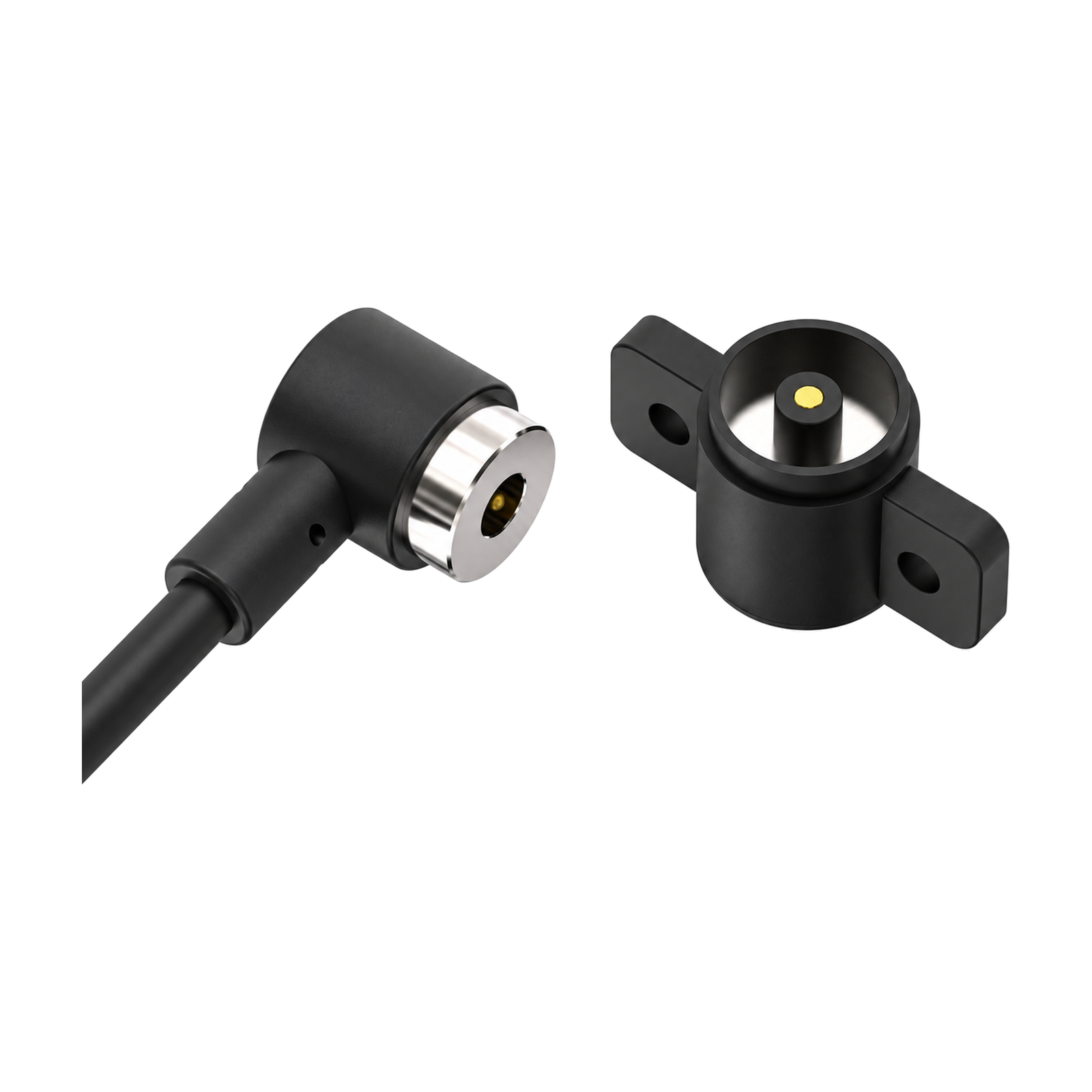

CUSTOM PROJECT REFERENCECustom Round 2-Pin Magnetic Data Cable, 0.1 A / 12 V – YT-MDC-017SKU YT-MDC-017Pin Count2Rated Current0.1 ARated Voltage12 V

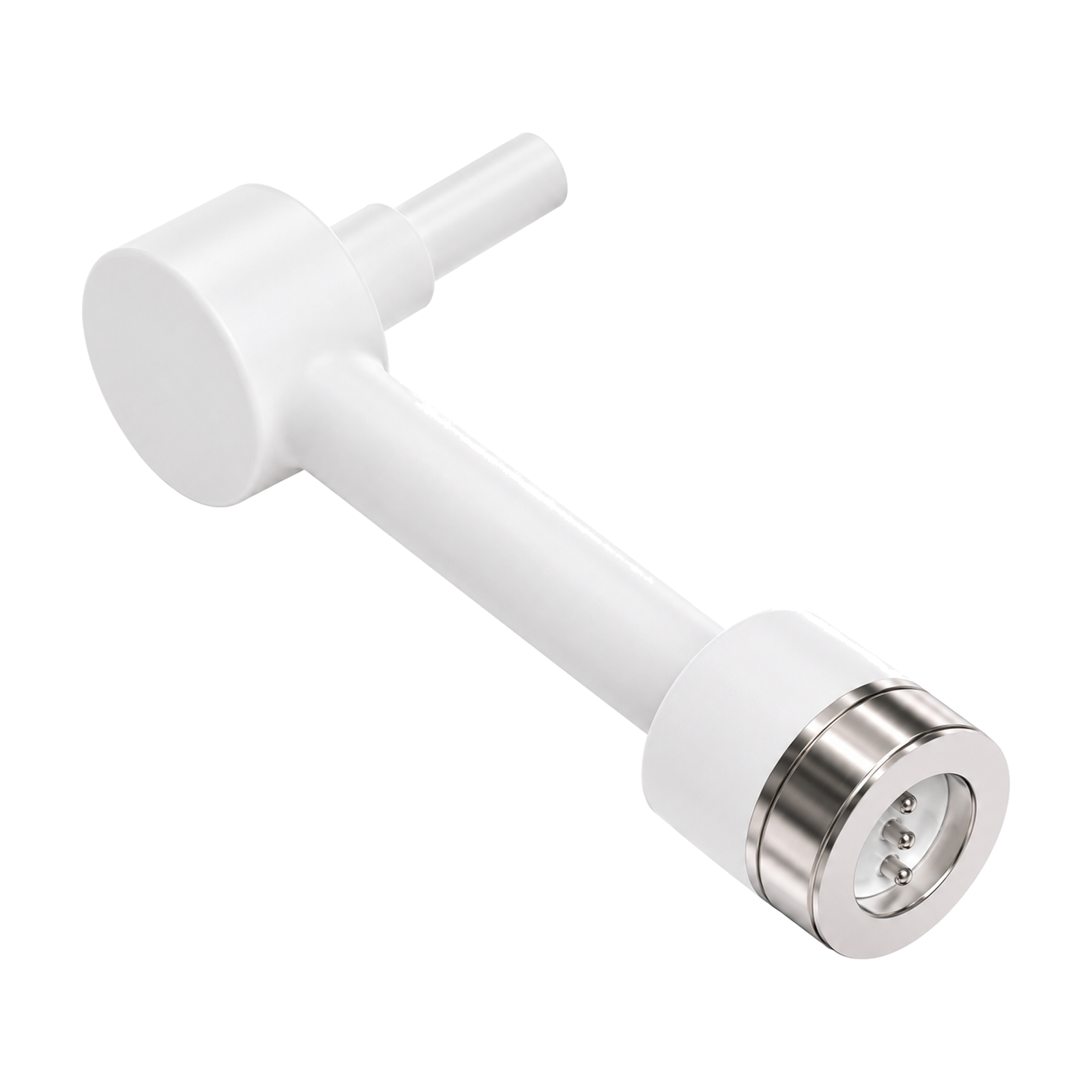

CUSTOM PROJECT REFERENCECustom Round 3-Pin Magnetic Data Cable, 3 A / 5 V – YT-MDC-016SKU YT-MDC-016Pin Count3Rated Current3 ARated Voltage5 V

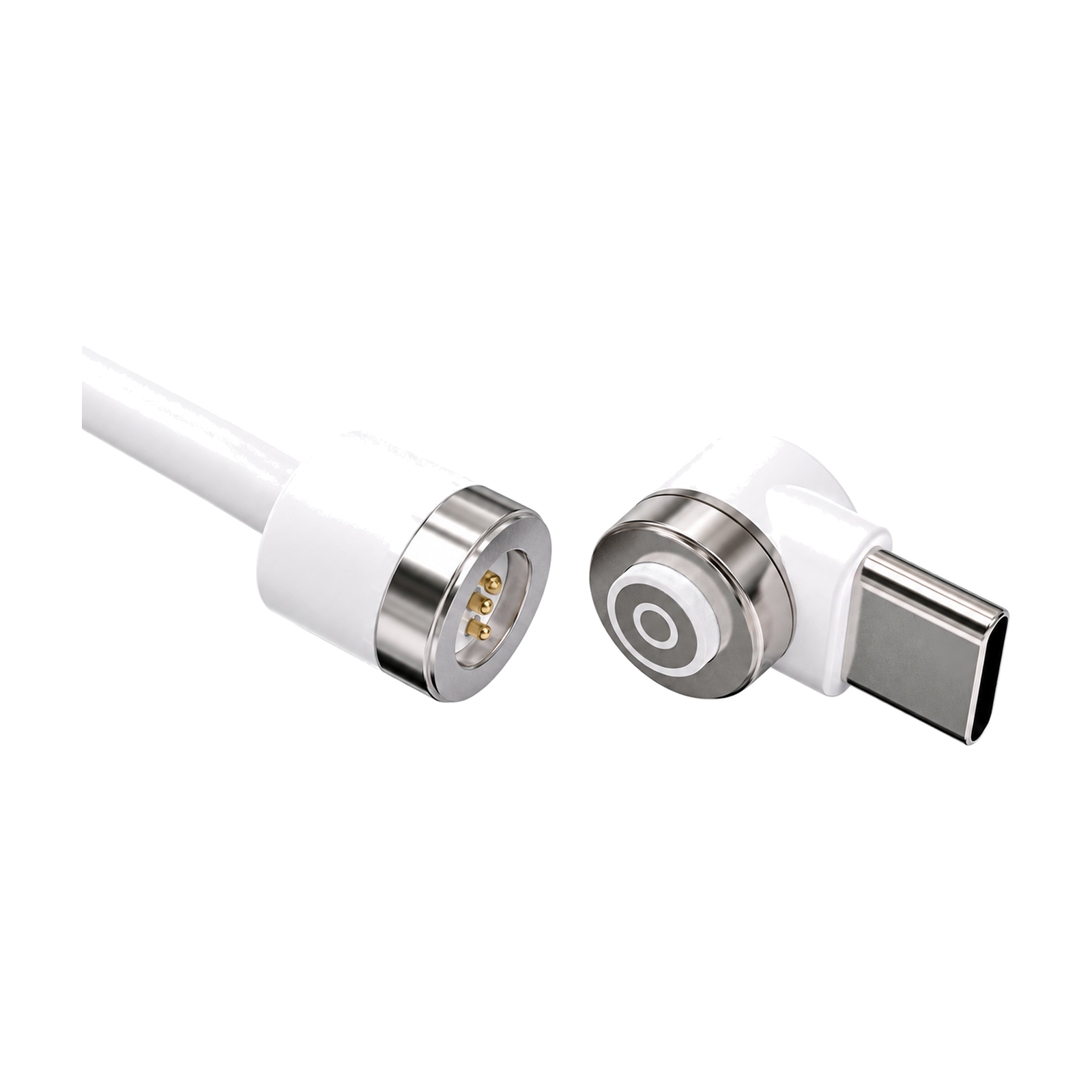

CUSTOM PROJECT REFERENCECustom Round 3-Pin Magnetic Data Cable, 3 A / 5 V – YT-MDC-015SKU YT-MDC-015Pin Count3Rated Current3 ARated Voltage5 V

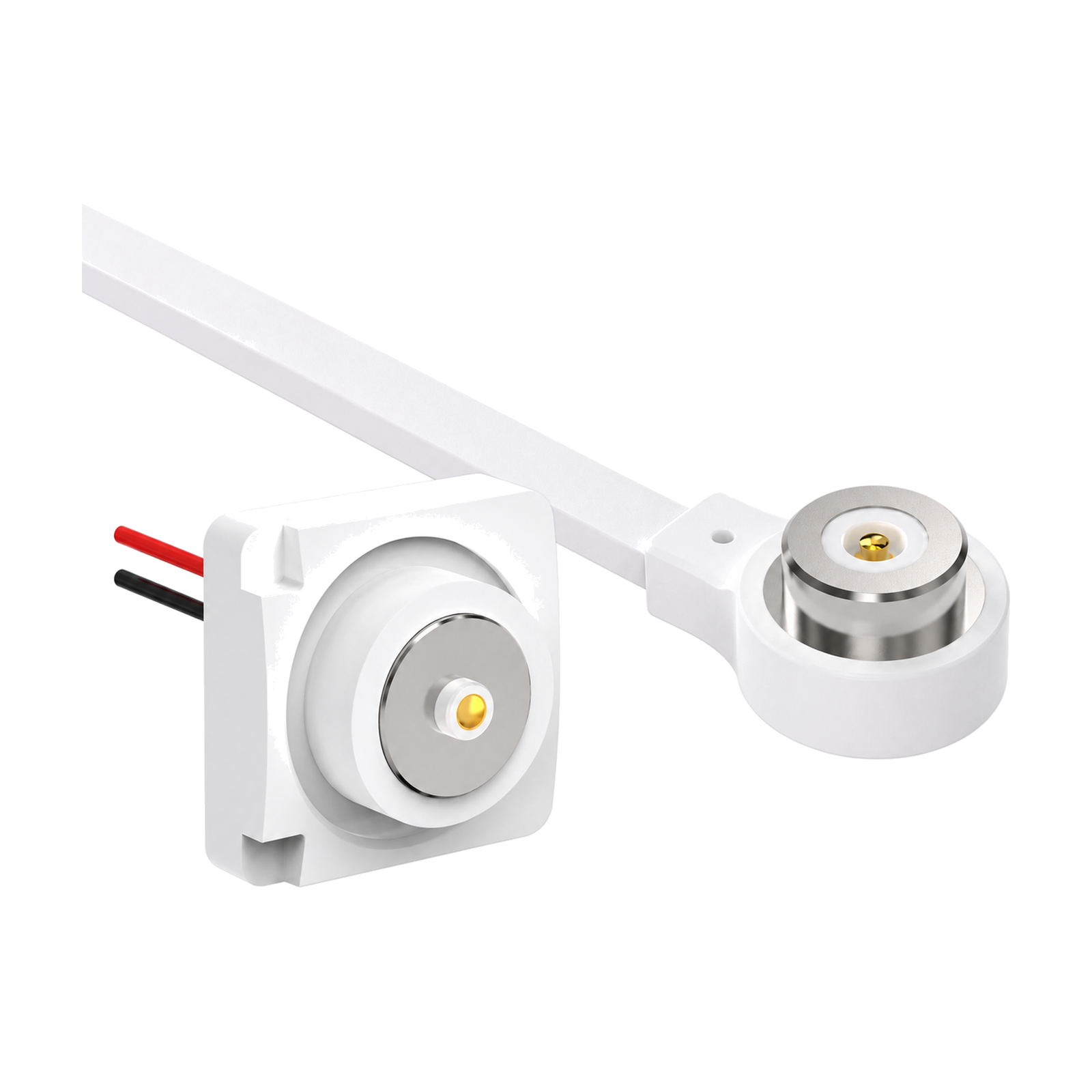

CUSTOM PROJECT REFERENCECustom Round 2-Pin Magnetic Data Cable, 2 A / 5 V – YT-MDC-014SKU YT-MDC-014Pin Count2Rated Current2 ARated Voltage5 V

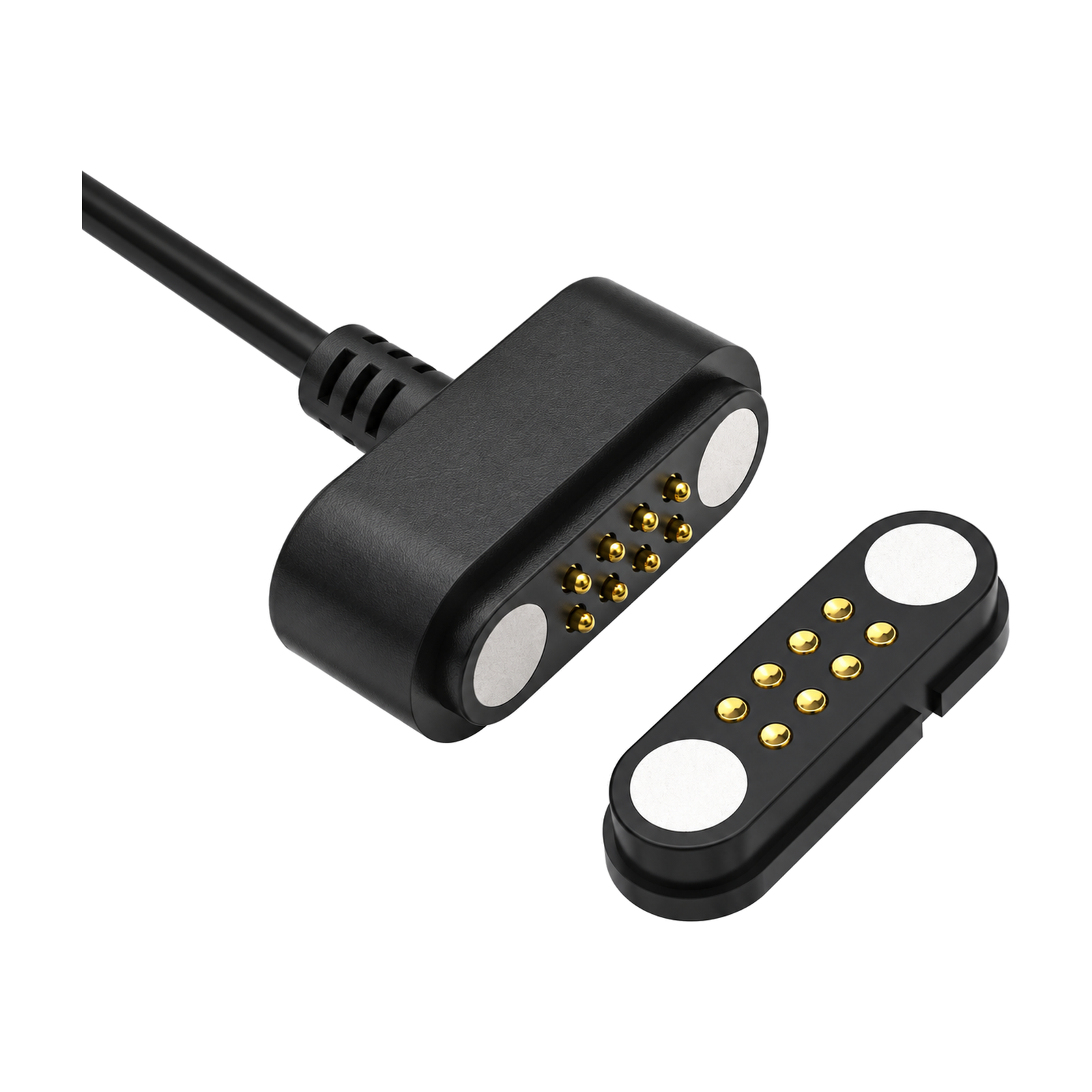

CUSTOM PROJECT REFERENCECustom 8-Pin Magnetic Data Cable, 2 A / 5 V – YT-MDC-013SKU YT-MDC-013Pin Count8Rated Current2 ARated Voltage5 V

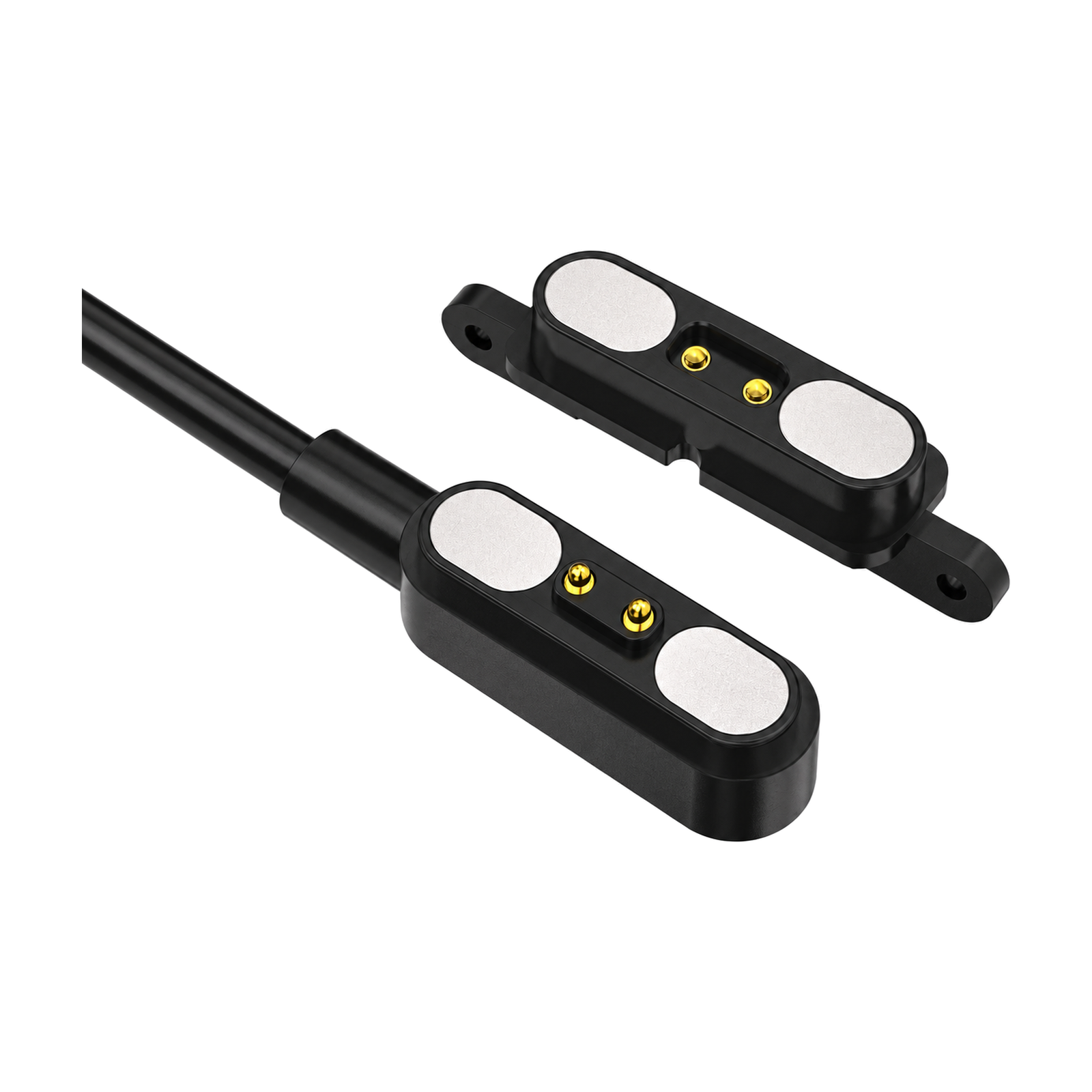

CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Data Cable, 3 A / 12 V – YT-MDC-012SKU YT-MDC-012Pin Count2Rated Current3 ARated Voltage12 VPROJECT EVALUATION
What we confirm before development
Pin definition
Power, data, signal and ground assignments are confirmed with the device-side magnetic interface.
System verification
Charging, communication and mechanical reliability are verified with the target device and agreed test conditions.
ENGINEERING FAQ
Magnetic Data Cable selection questions
Concise answers for product teams evaluating a custom precision-contact or magnetic-connection project.
What is a custom magnetic data cable?
Custom magnetic cable assemblies developed for charging plus defined data or signal transmission tasks. The final design is released only after the project requirements are confirmed.
Which specifications help select a magnetic data cable?
Start with pin count, shape, installation space, electrical assignment, operating environment and expected service life. Use the filters as a reference, then confirm the full requirement with engineering.
Are the listed magnetic data cables customizable?
Yes. The listed products are customer case references. Dimensions, materials, plating, cable, pin assignment and verification requirements can be reviewed for a new project.
