Pin count and pitch
Pin count, center spacing, array layout and polarization are confirmed against PCB and functional definitions.
SPRING-LOADED CONNECTOR SYSTEMS
Custom Pogo Pin Connectors
Custom multi-pin connector assemblies engineered around pitch, pin count, PCB layout, plastic housing and device integration.
PRODUCT SELECTOR
Filter pogo pin connectors by product type
The filter structure follows the same five-family classification used on the Chinese catalog. A matching case is a development reference, not a guaranteed drop-in design.
105 matching project referencesPage 2 of 9
CUSTOM PROJECT REFERENCECustom 10+ Pin SMT Pogo Pin Connector, 3 A / 12 V – YT-PPC-106SKU YT-PPC-106Pin Count10 pins and aboveRated Current3 ARated Voltage12 V

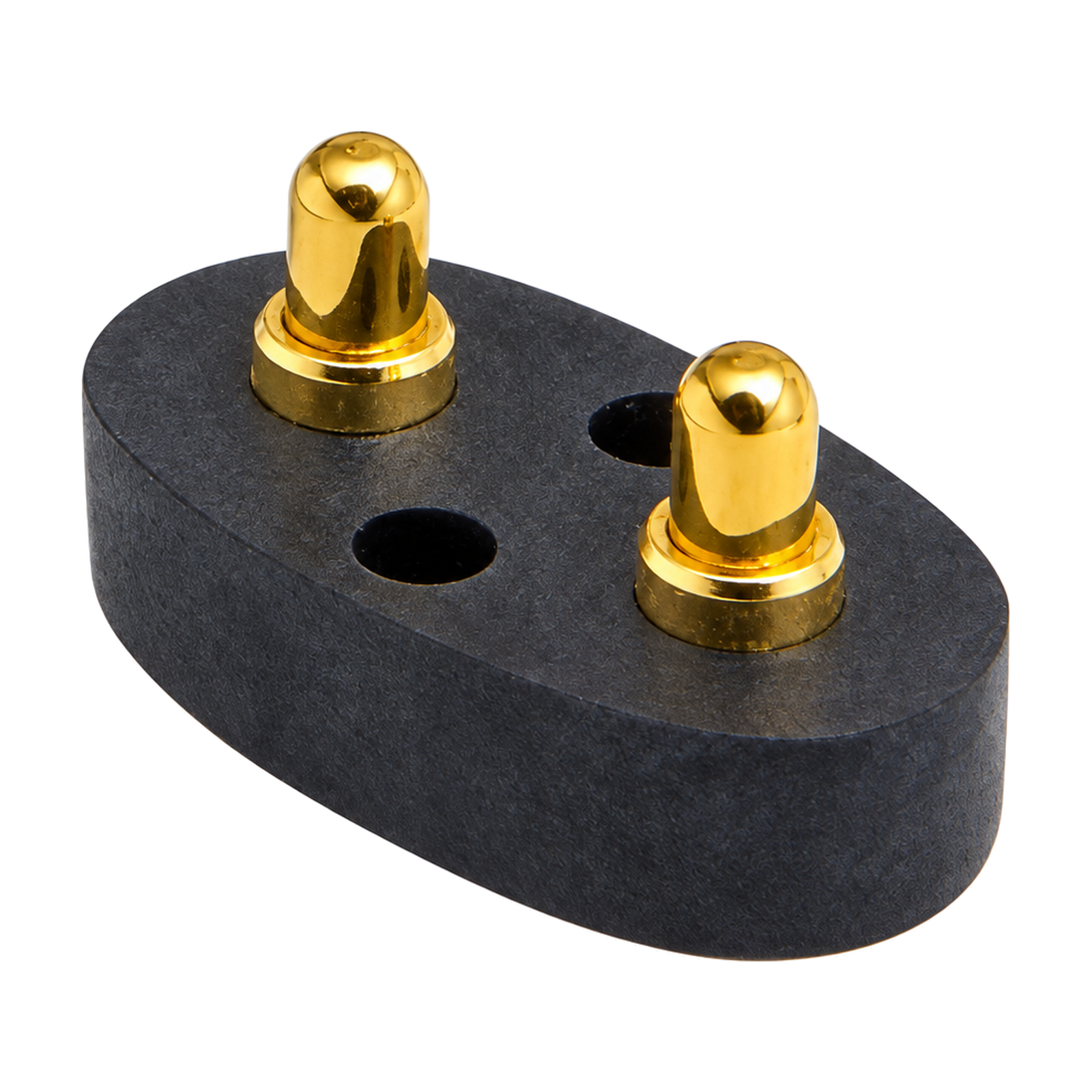

CUSTOM PROJECT REFERENCECustom 2-Pin SMT Pogo Pin Connector, 1.2 A / 12 V – YT-PPC-105SKU YT-PPC-105Pin Count2Rated Current1.2 ARated Voltage12 V
CUSTOM PROJECT REFERENCECustom 10+ Pin SMT Pogo Pin Connector, 1.2 A / 12 V – YT-PPC-104SKU YT-PPC-104Pin Count10 pins and aboveRated Current1.2 ARated Voltage12 V

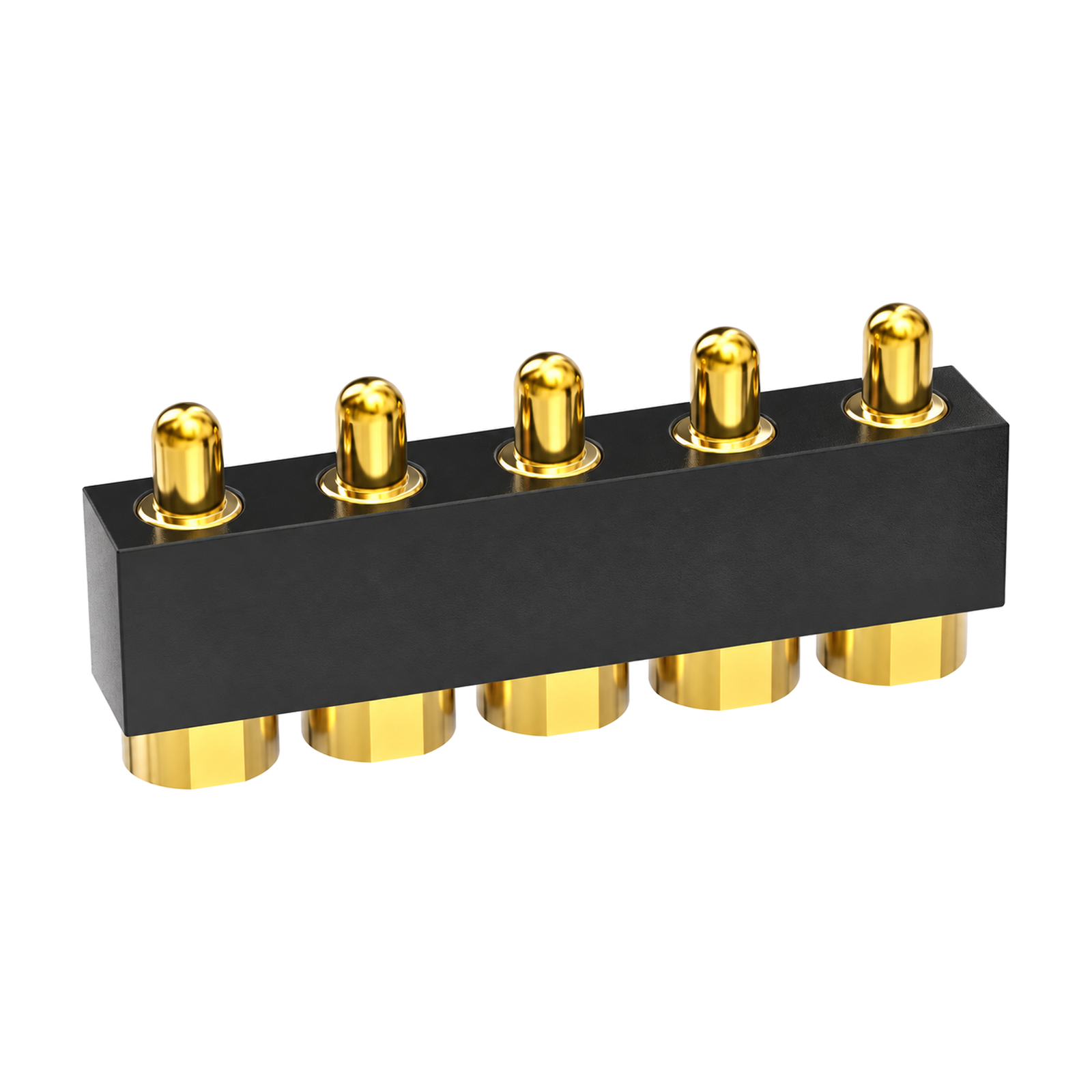

CUSTOM PROJECT REFERENCECustom 5-Pin SMT Pogo Pin Connector, 3 A / 12 V – YT-PPC-103SKU YT-PPC-103Pin Count5Rated Current3 ARated Voltage12 V

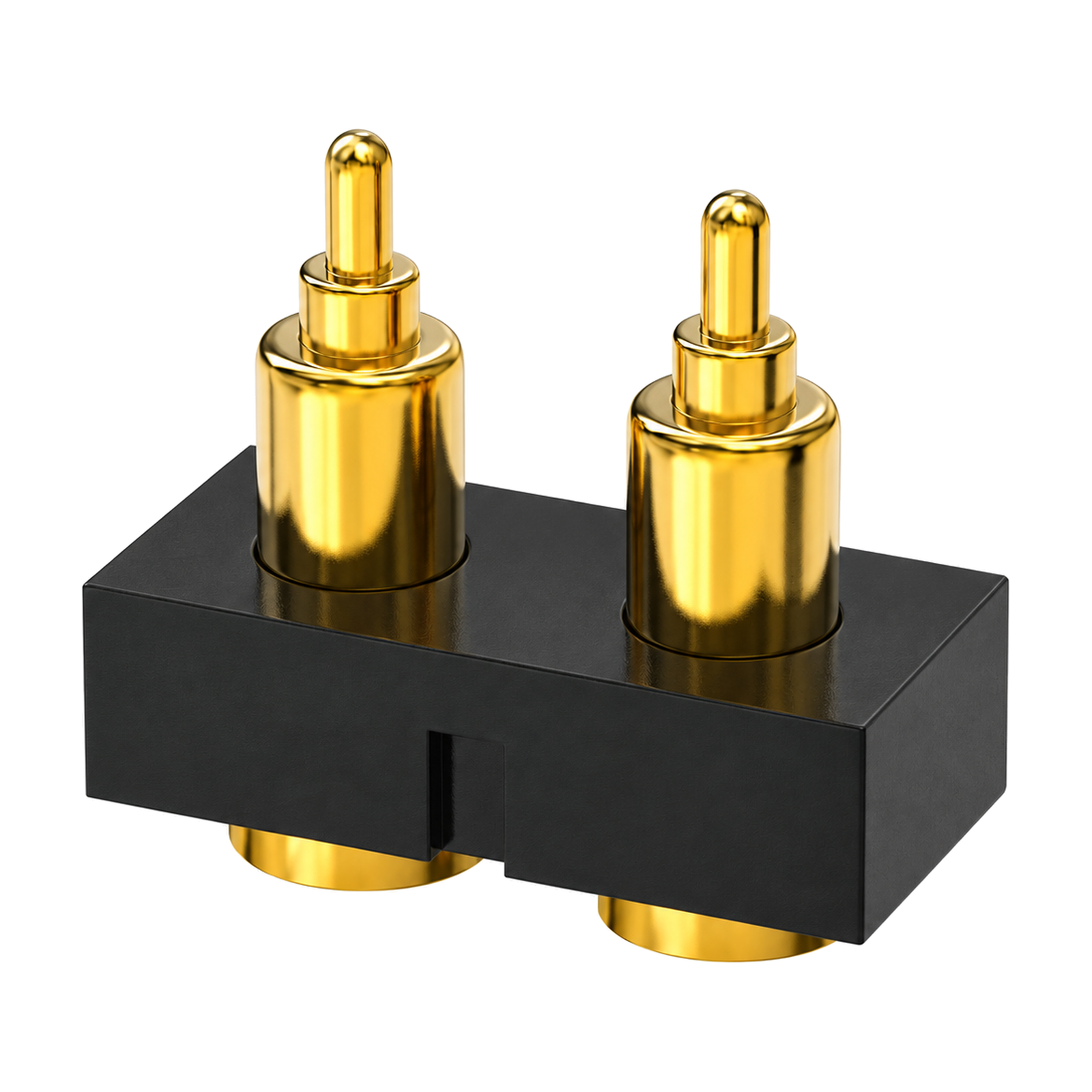

CUSTOM PROJECT REFERENCECustom 2-Pin 2.54 mm SMT Pogo Pin Connector, 1.2 A / 12 V – YT-PPC-102SKU YT-PPC-102Pin Count2Rated Current1.2 ARated Voltage12 V
CUSTOM PROJECT REFERENCECustom Pogo Pin Connector, 2 A / DC 5V – YT-PPC-018SKU YT-PPC-018Rated Current2 ARated VoltageDC 5V
CUSTOM PROJECT REFERENCECustom Pogo Pin Connector – YT-PPC-017SKU YT-PPC-017
CUSTOM PROJECT REFERENCECustom Pogo Pin Connector, 2 A / DC 12V – YT-PPC-016SKU YT-PPC-016Rated Current2 ARated VoltageDC 12V

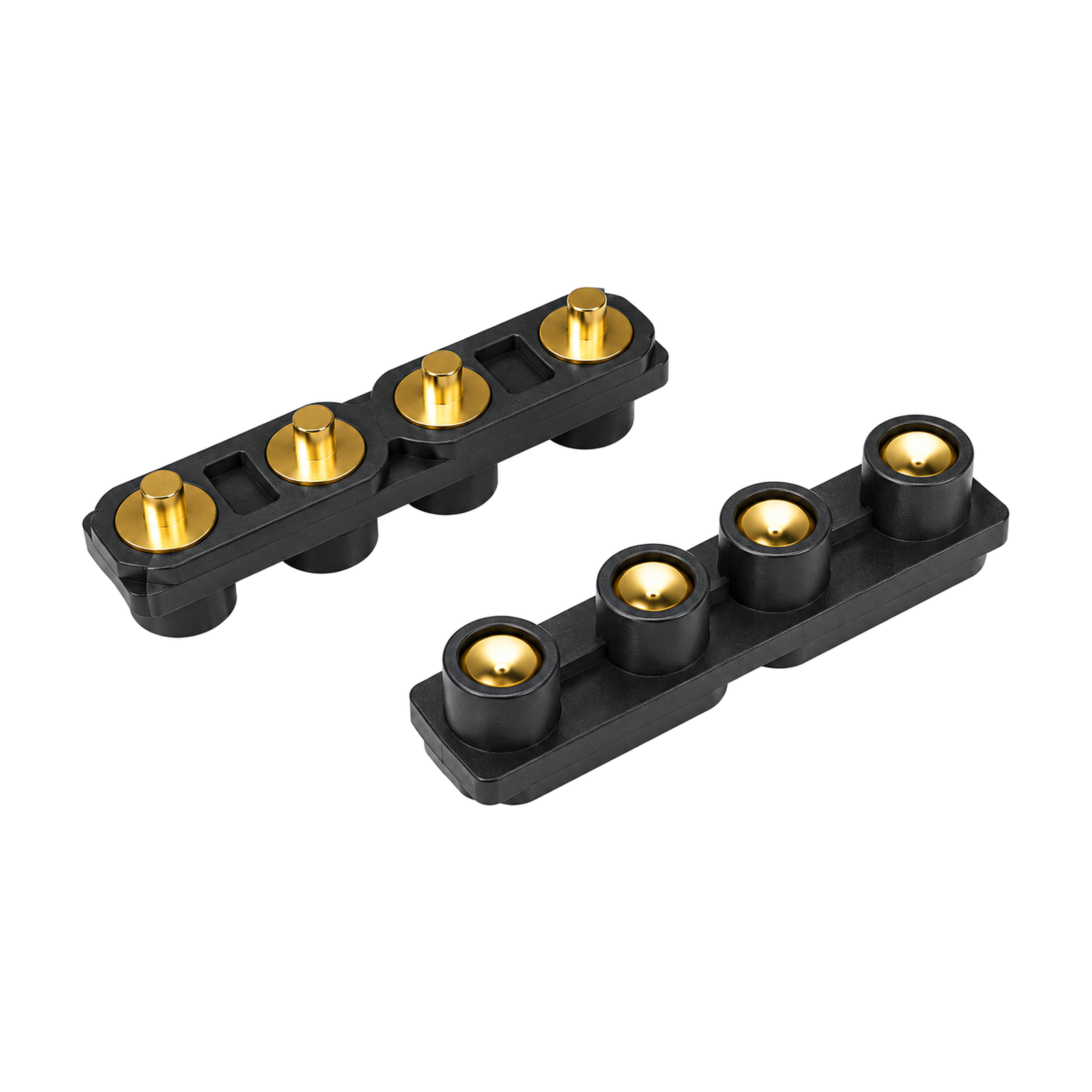

CUSTOM PROJECT REFERENCECustom 4-Pin Pogo Pin Connector, 1 A / DC 12V – YT-PPC-015SKU YT-PPC-015Pin Count4Rated Current1 ARated VoltageDC 12V
CUSTOM PROJECT REFERENCECustom 10-Pin Pogo Pin Connector, 1 A / DC 12V – YT-PPC-014SKU YT-PPC-014Pin Count10Rated Current1 ARated VoltageDC 12V
CUSTOM PROJECT REFERENCECustom Pogo Pin Connector, 1 A / DC 12V – YT-PPC-101SKU YT-PPC-101Rated Current1 ARated VoltageDC 12V
CUSTOM PROJECT REFERENCECustom 12-Pin Pogo Pin Connector, 1 A / DC 12V – YT-PPC-013SKU YT-PPC-013Pin Count12Rated Current1 ARated VoltageDC 12VPROJECT EVALUATION
What we confirm before development
Housing and installation
DIP, SMT, right-angle, multi-row and locating features can be evaluated with a custom molded housing.
Power and signal assignment
Every contact is reviewed for its current, signal, grounding and reliability requirements.
ENGINEERING FAQ
Pogo Pin Connector selection questions
Concise answers for product teams evaluating a custom precision-contact or magnetic-connection project.
What is a custom pogo pin connector?
Custom multi-pin connector assemblies engineered around pitch, pin count, PCB layout, plastic housing and device integration. The final design is released only after the project requirements are confirmed.
Which specifications help select a pogo pin connector?
Start with mounting & pitch, pin count, installation space, electrical assignment, operating environment and expected service life. Use the filters as a reference, then confirm the full requirement with engineering.
Are the listed pogo pin connectors customizable?
Yes. The listed products are customer case references. Dimensions, materials, plating, cable, pin assignment and verification requirements can be reviewed for a new project.
START A PROJECT
Need a connection solution built around your device?
Share your drawings, application and target requirements with Bella for an engineering review.
