DEVICE-SIDE MAGNETIC INTERFACES
Custom Magnetic Connectors
Custom magnetic connection interfaces for PCB, FPC, enclosure or module integration.
PRODUCT SELECTOR
Filter magnetic connectors by product type
The filter structure follows the same five-family classification used on the Chinese catalog. A matching case is a development reference, not a guaranteed drop-in design.
91 matching project referencesPage 2 of 8

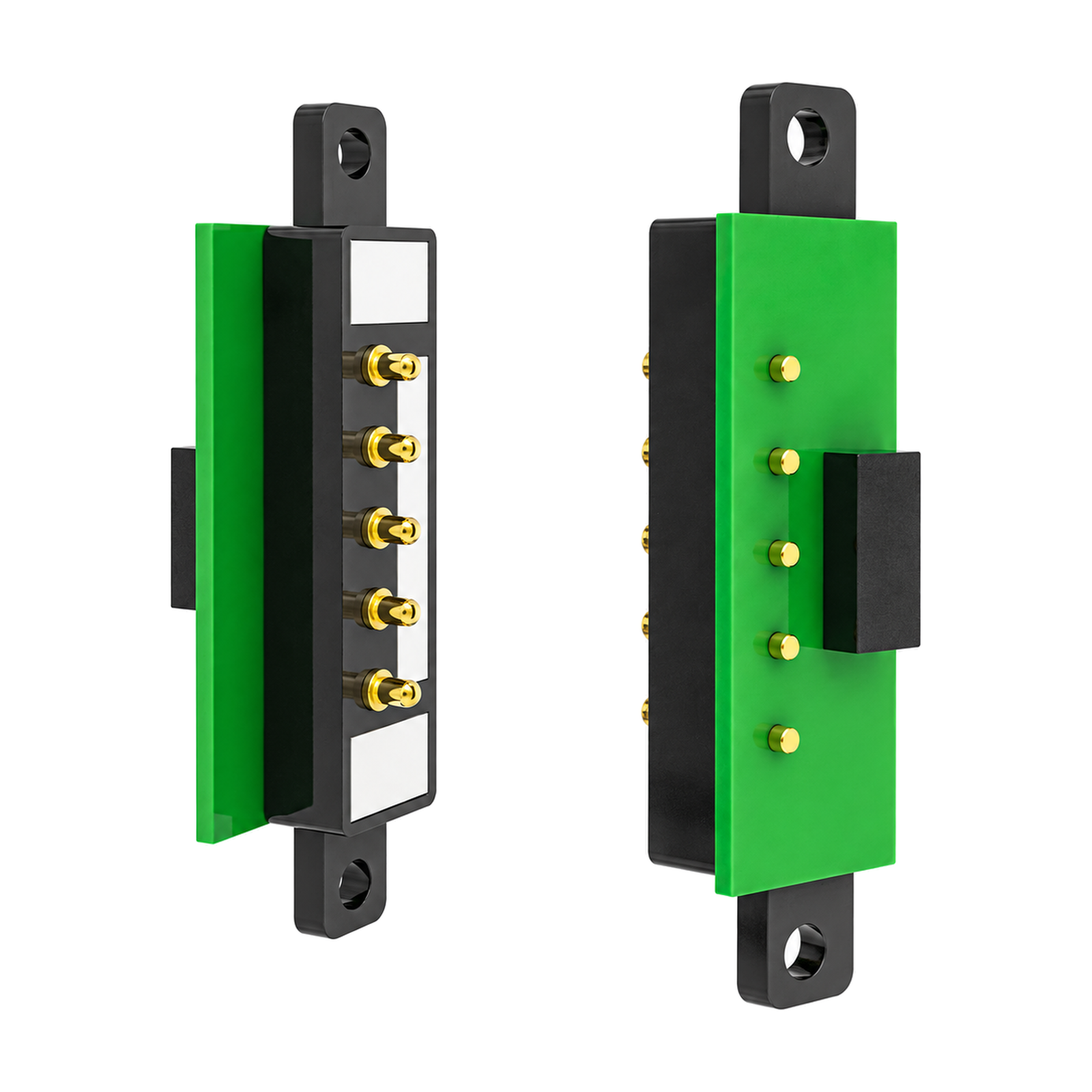

CUSTOM PROJECT REFERENCECustom 5-Pin Magnetic Connector, 2 A / 5 V – YT-MC-018SKU YT-MC-018Pin Count5Rated Current2 ARated Voltage5 V

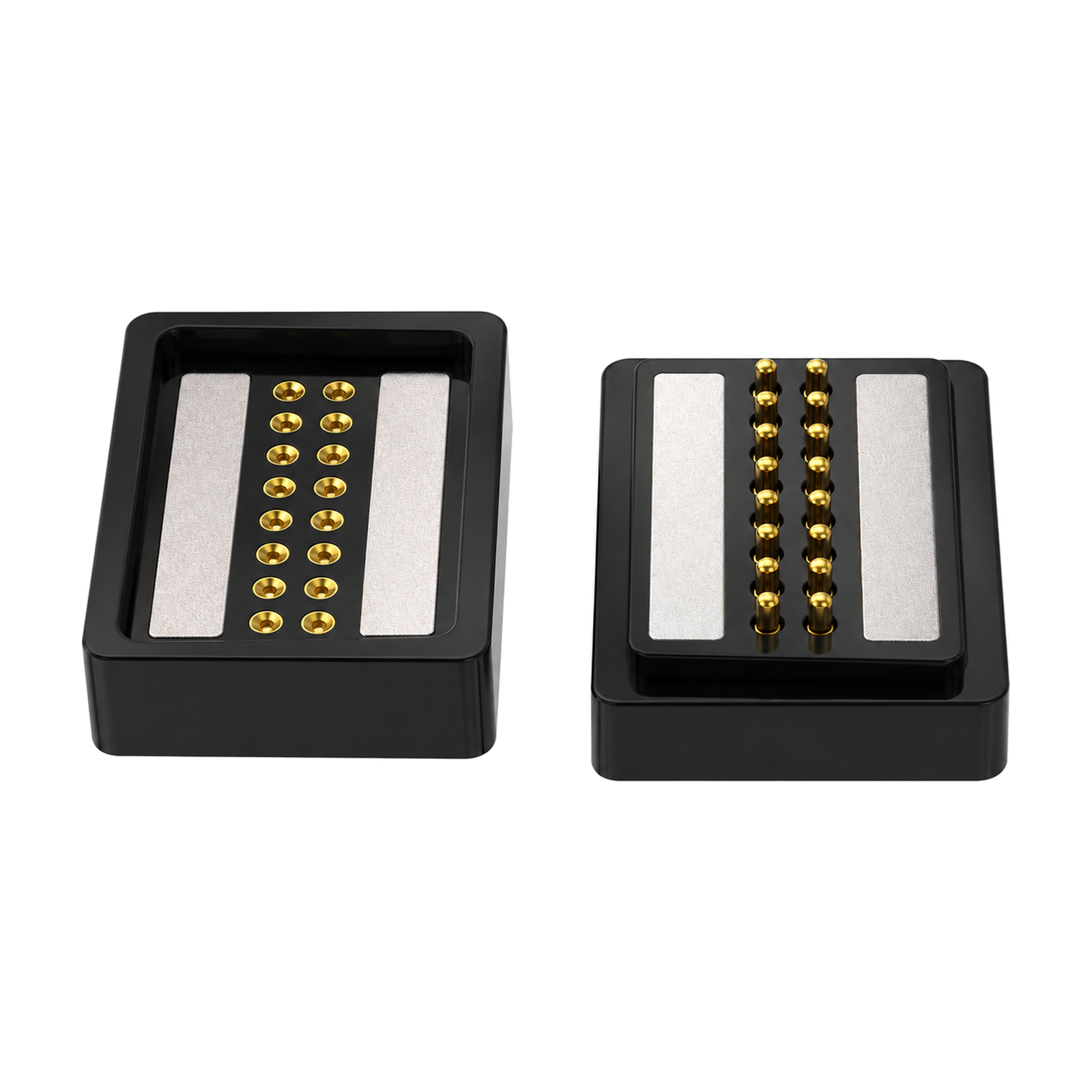

CUSTOM PROJECT REFERENCECustom 10+ Pin Magnetic Connector, 2 A / 5 V – YT-MC-017SKU YT-MC-017Pin Count10 pins and aboveRated Current2 ARated Voltage5 V

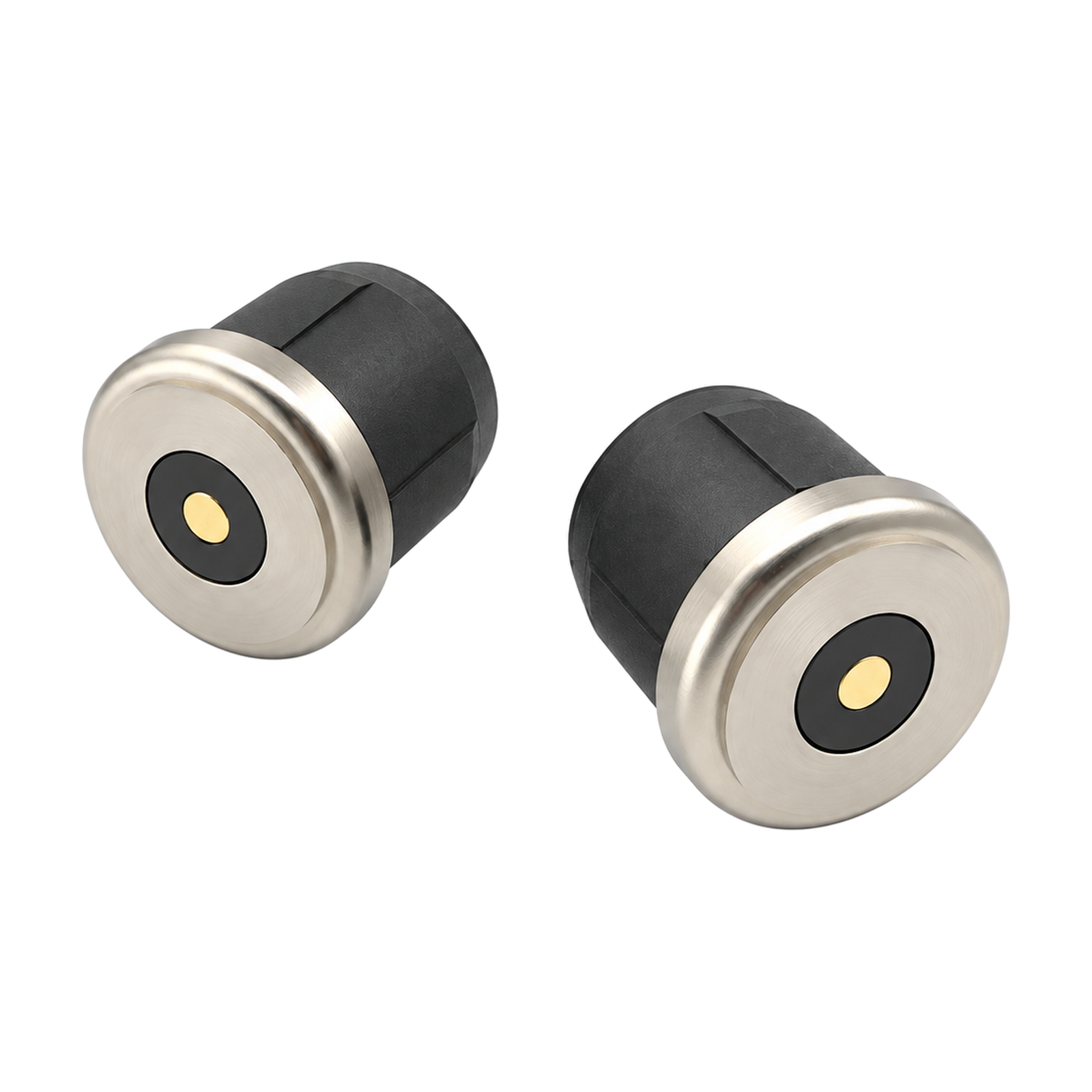

CUSTOM PROJECT REFERENCECustom Round Magnetic Connector, 3 A / 12 V – YT-MC-016SKU YT-MC-016Rated Current3 ARated Voltage12 V

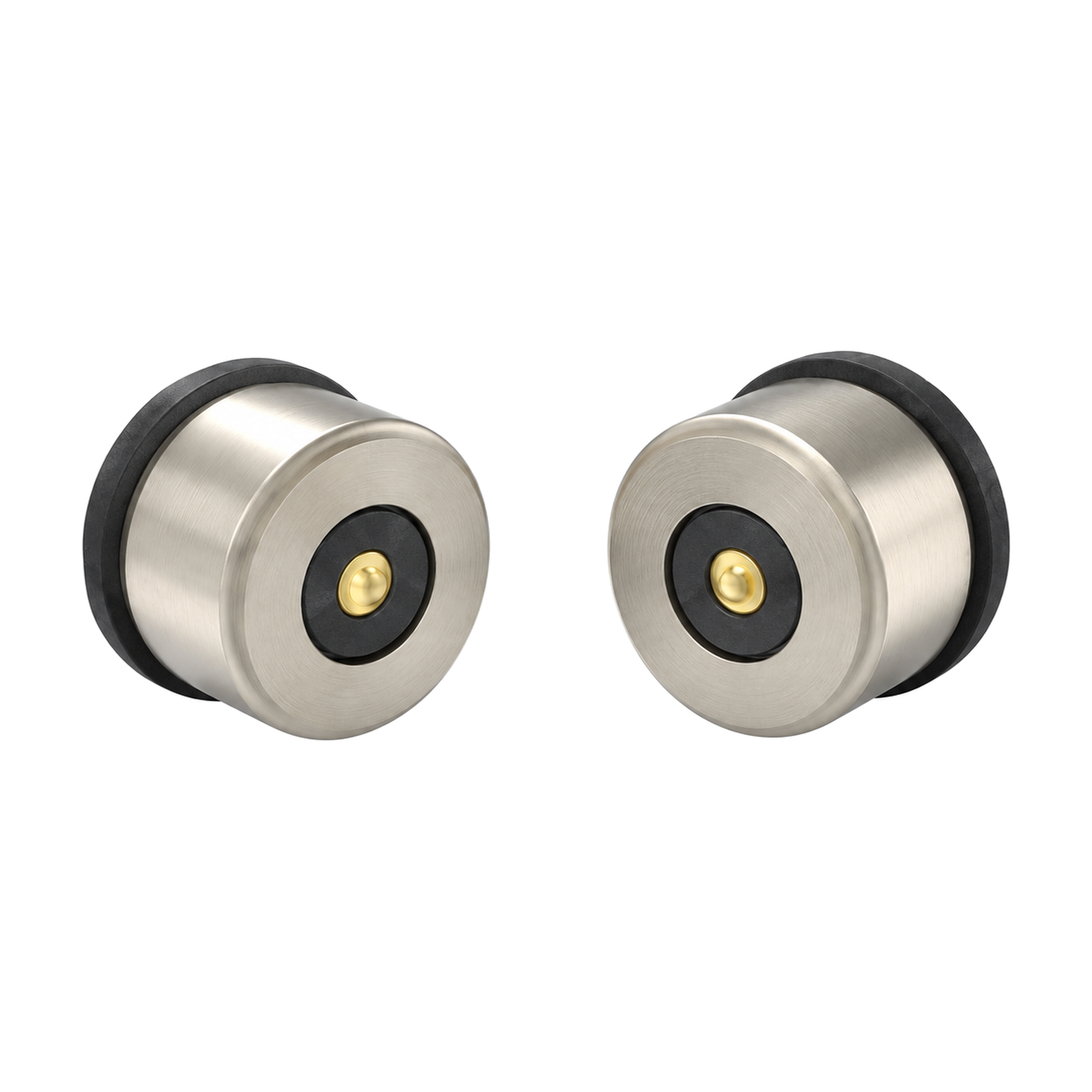

CUSTOM PROJECT REFERENCECustom Round Magnetic Connector, 3A Max / 12 V – YT-MC-015SKU YT-MC-015Rated Current3A MaxRated Voltage12 V

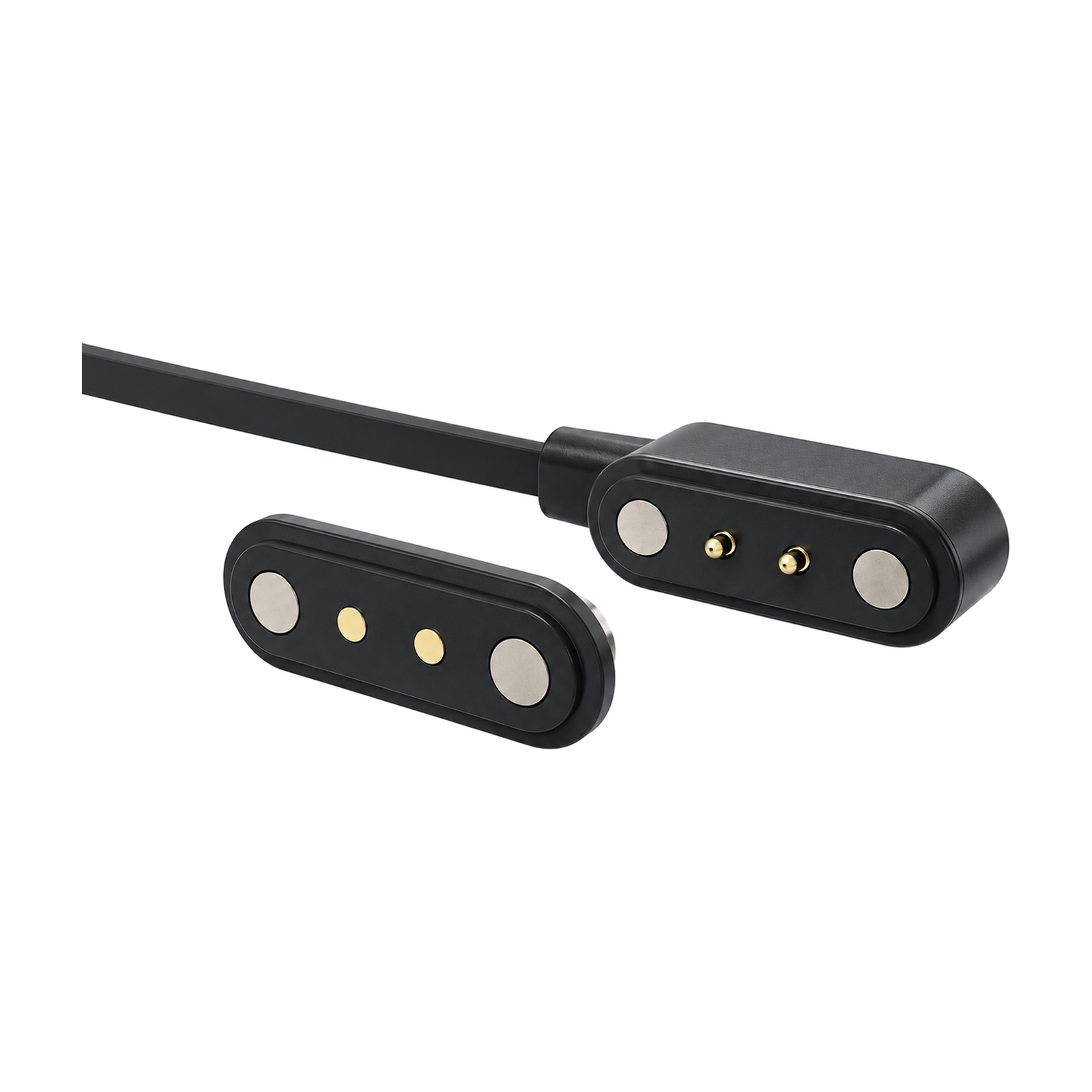

CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Connector, 1 A / 12 V – YT-MCB-031SKU YT-MCB-031Pin Count2Rated Current1 ARated Voltage12 V

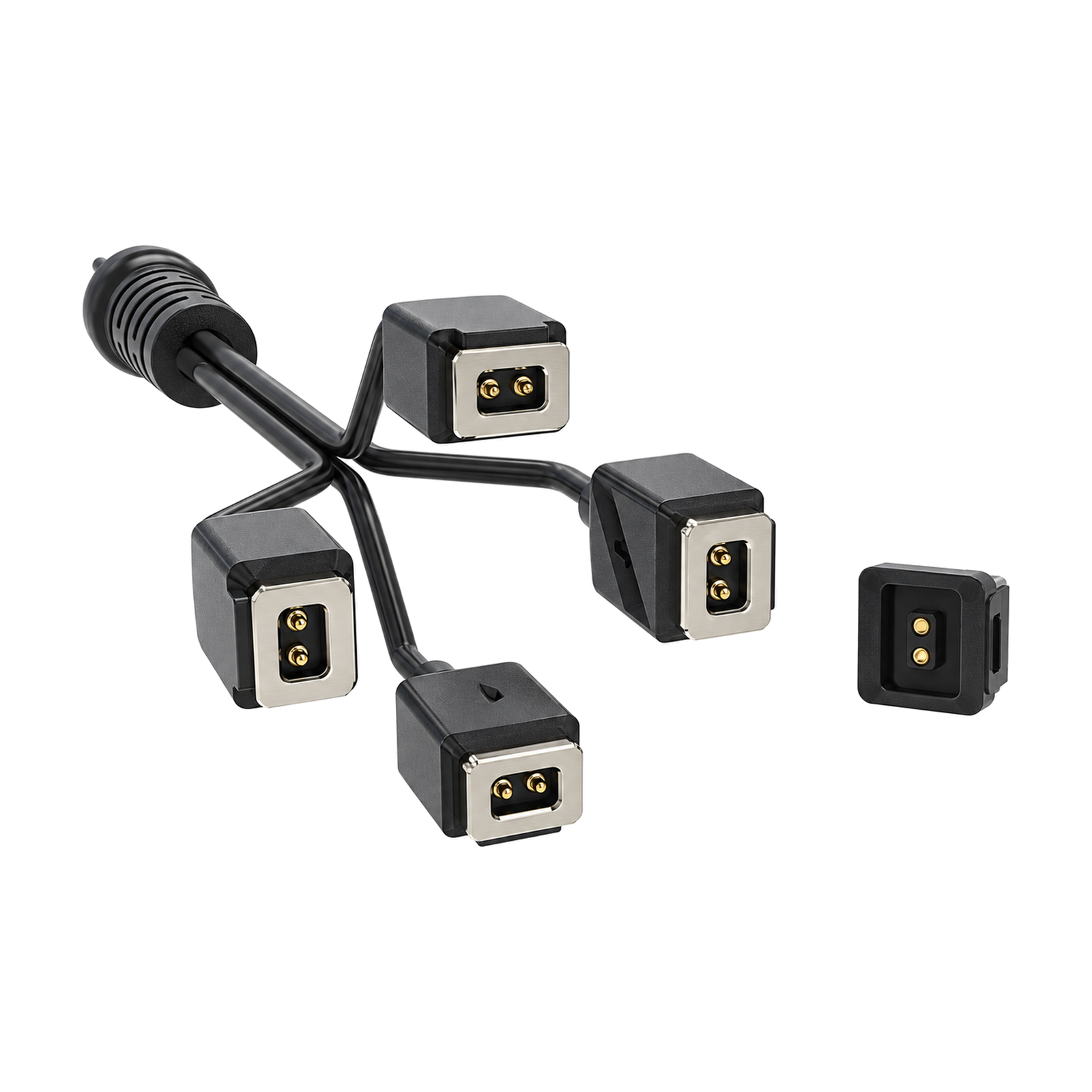

CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Connector, 1 A / 12 V – YT-MCB-030SKU YT-MCB-030Pin Count2Rated Current1 ARated Voltage12 V

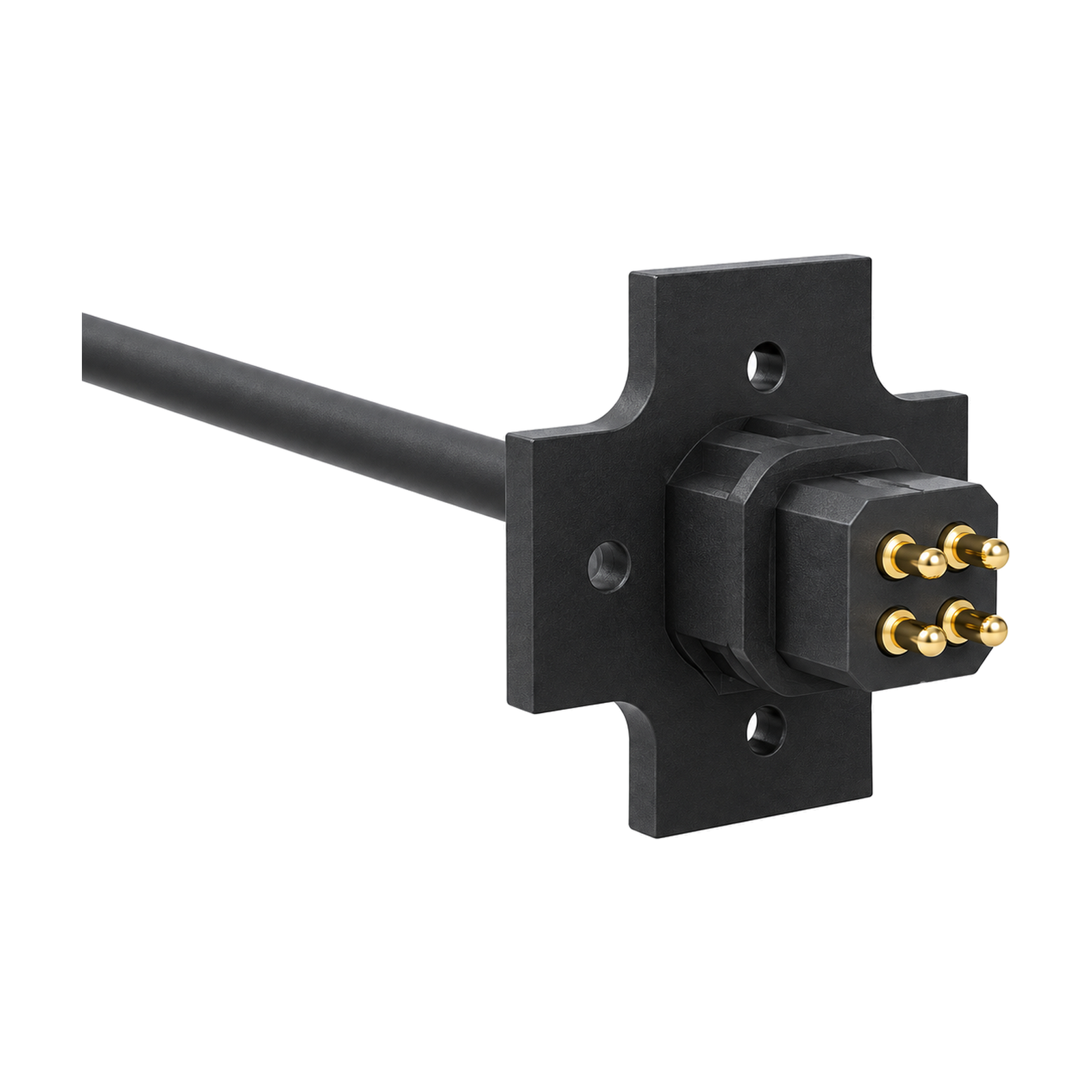

CUSTOM PROJECT REFERENCECustom 4-Pin Magnetic Connector, 2 A / 12 V – YT-MCB-029SKU YT-MCB-029Pin Count4Rated Current2 ARated Voltage12 V

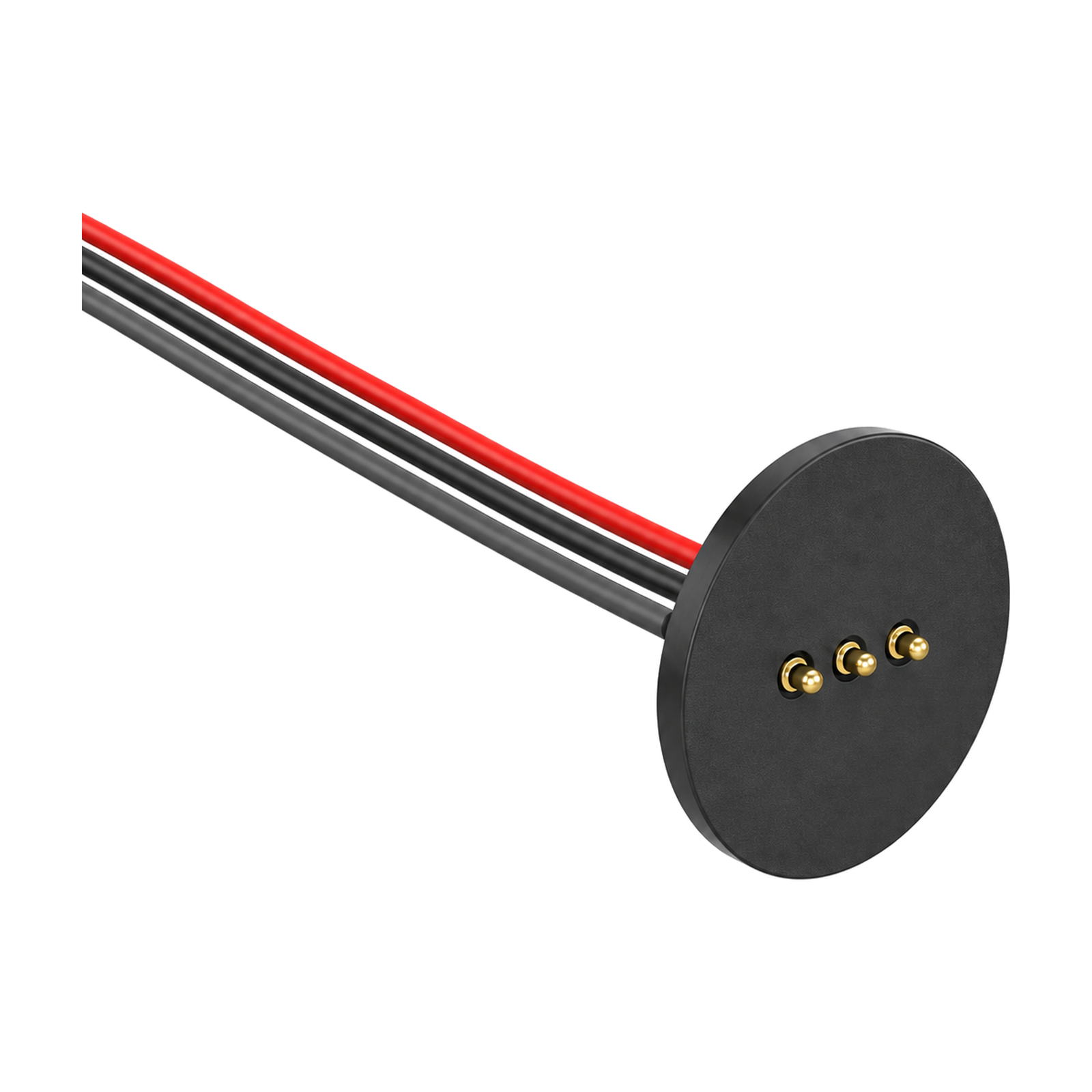

CUSTOM PROJECT REFERENCECustom Round 3-Pin Magnetic Connector, 2 A / 12 V – YT-MCB-006SKU YT-MCB-006Pin Count3Rated Current2 ARated Voltage12 V

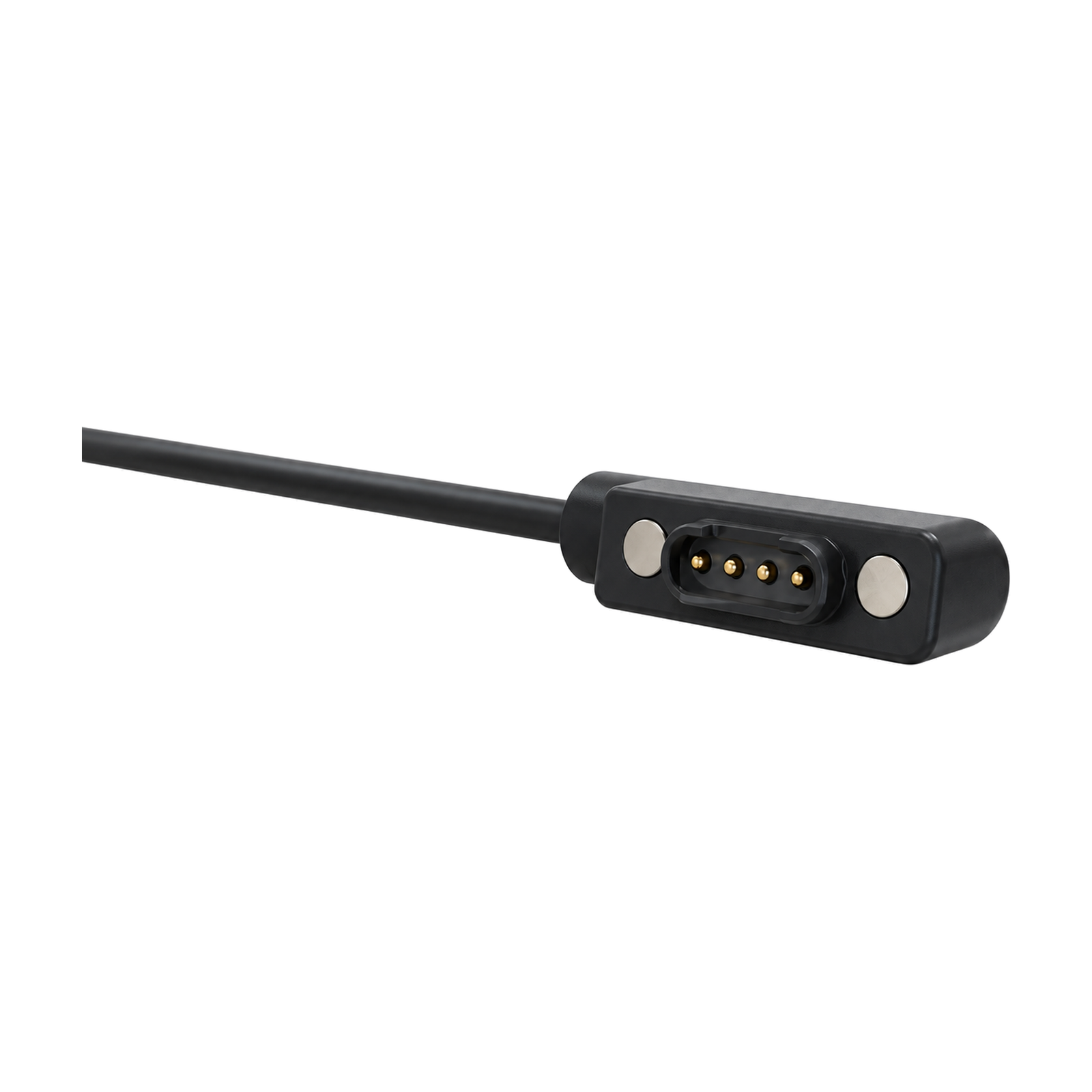

CUSTOM PROJECT REFERENCECustom 4-Pin Magnetic Connector, 0.5 A / 12 V – YT-MCB-028SKU YT-MCB-028Pin Count4Rated Current0.5 ARated Voltage12 V

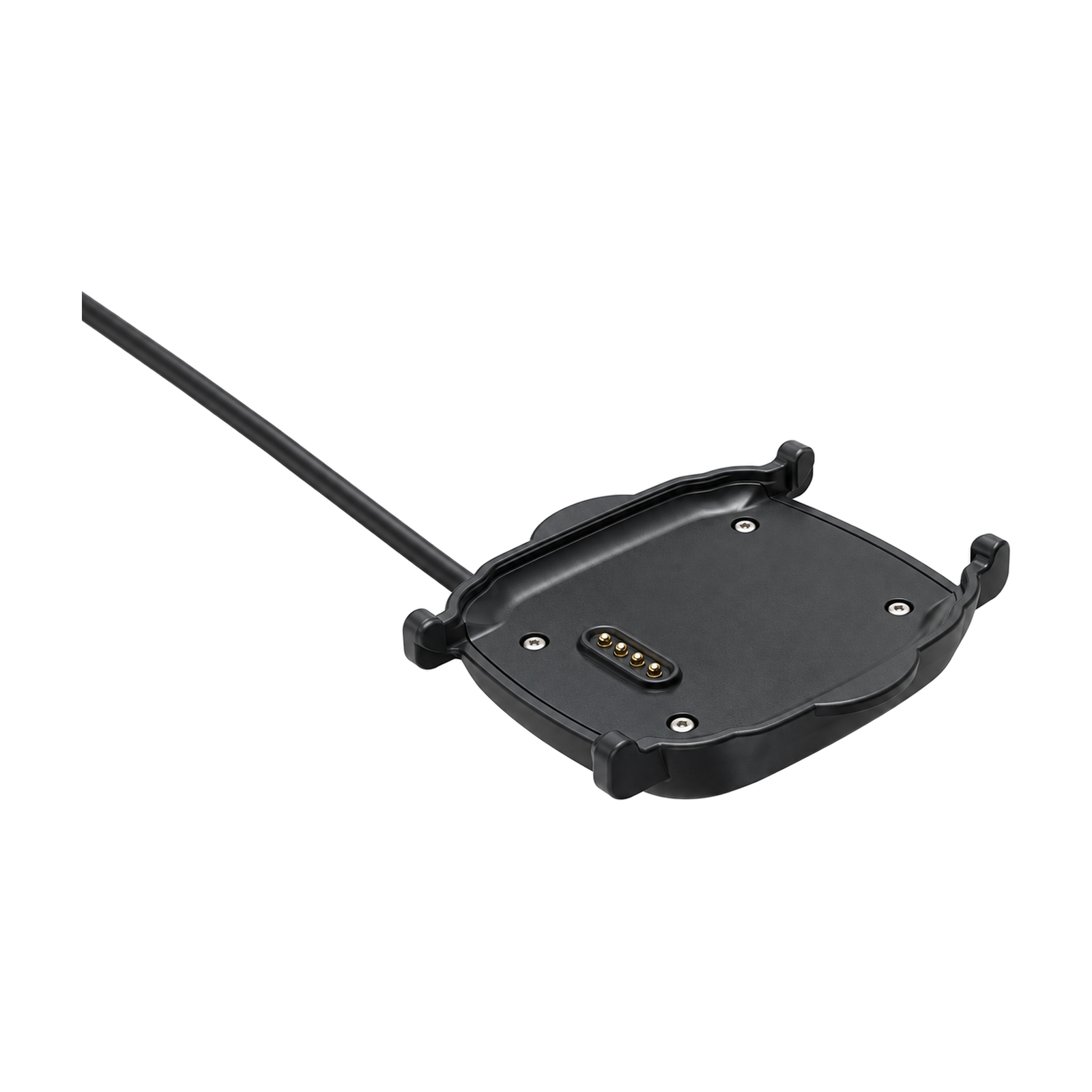

CUSTOM PROJECT REFERENCECustom 4-Pin Magnetic Connector, 1 A / 12 V – YT-MCB-027SKU YT-MCB-027Pin Count4Rated Current1 ARated Voltage12 V

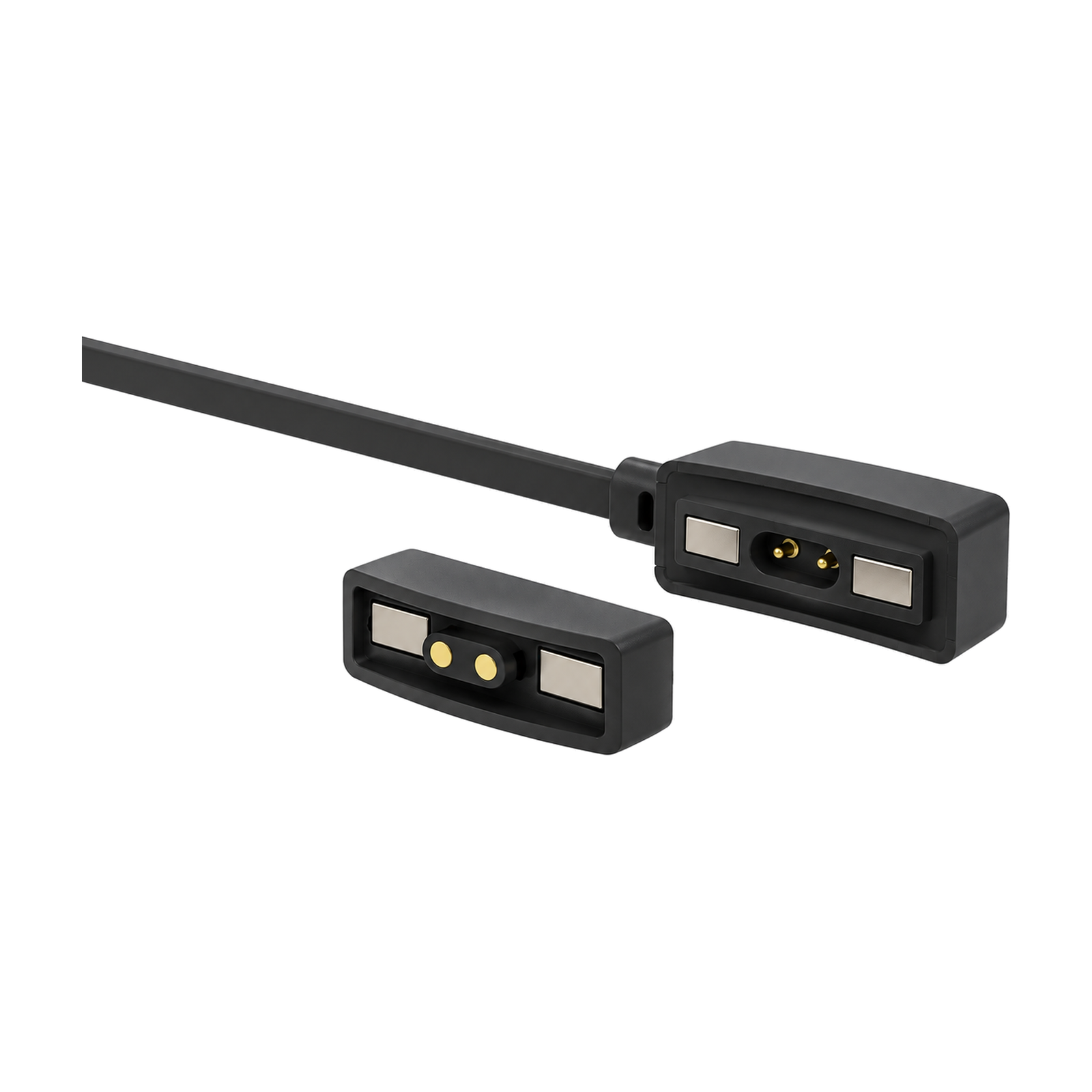

CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Connector, 1 A / 12 V – YT-MCB-026SKU YT-MCB-026Pin Count2Rated Current1 ARated Voltage12 V

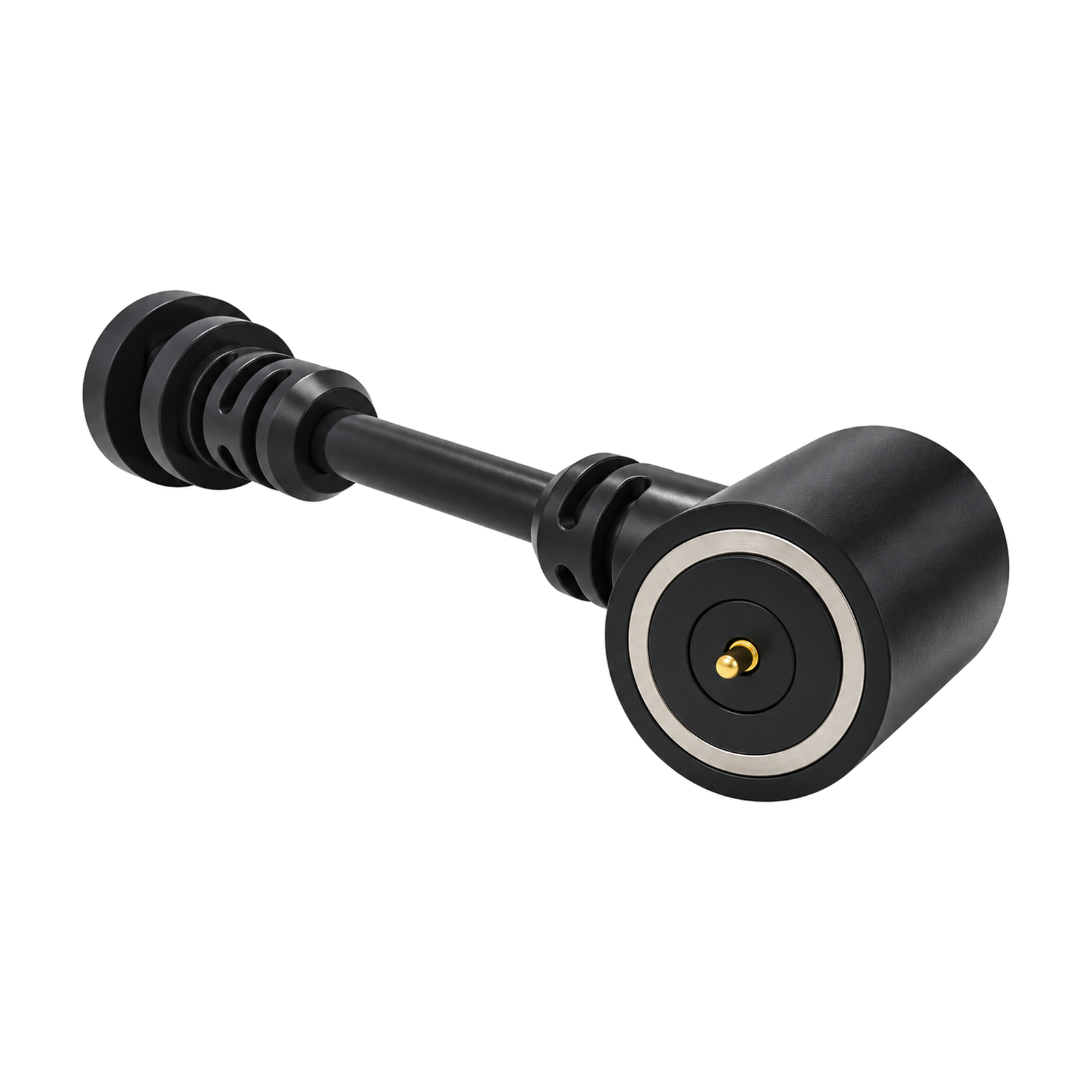

CUSTOM PROJECT REFERENCECustom Round Magnetic Connector, 3 A / 12 V – YT-MCB-025SKU YT-MCB-025Rated Current3 ARated Voltage12 VPROJECT EVALUATION
What we confirm before development
Magnetic and electrical design
Pin assignment, current, voltage, magnetic force, release direction and short-circuit protection are project-specific.
Assembly validation
Alignment, self-location, release action, temperature rise and environmental conditions are checked in the real device.
ENGINEERING FAQ
Magnetic Connector selection questions
Concise answers for product teams evaluating a custom precision-contact or magnetic-connection project.
What is a custom magnetic connector?
Custom magnetic connection interfaces for PCB, FPC, enclosure or module integration. The final design is released only after the project requirements are confirmed.
Which specifications help select a magnetic connector?
Start with pin count, shape, function, installation space, electrical assignment, operating environment and expected service life. Use the filters as a reference, then confirm the full requirement with engineering.
Are the listed magnetic connectors customizable?
Yes. The listed products are customer case references. Dimensions, materials, plating, cable, pin assignment and verification requirements can be reviewed for a new project.
START A PROJECT
Need a connection solution built around your device?
Share your drawings, application and target requirements with Bella for an engineering review.
