Custom 6-Pin 2.54 mm DIP Through-Hole Pogo Pin Connector – YT-PPC-038
SKU YT-PPC-038
Custom multi-pin connector assemblies engineered around pitch, pin count, PCB layout, plastic housing and device integration.
Housing and installation
DIP, SMT, right-angle, multi-row and locating features can be evaluated with a custom molded housing.
Power and signal assignment
Every contact is reviewed for its current, signal, grounding and reliability requirements.
VERIFIED SOURCE DATA
Product specifications
Values below are translated from the existing factory-reviewed product record. Final tolerances, test methods and acceptance criteria follow the project-approved drawing and specification.
| Yongtan Model | YT-PPC-038 |
|---|---|
| Pin Count | 6 |
| Pitch | 2.54 mm |
| Mounting Method | through hole |
PRODUCT DOCUMENTATION
Product images & engineering references

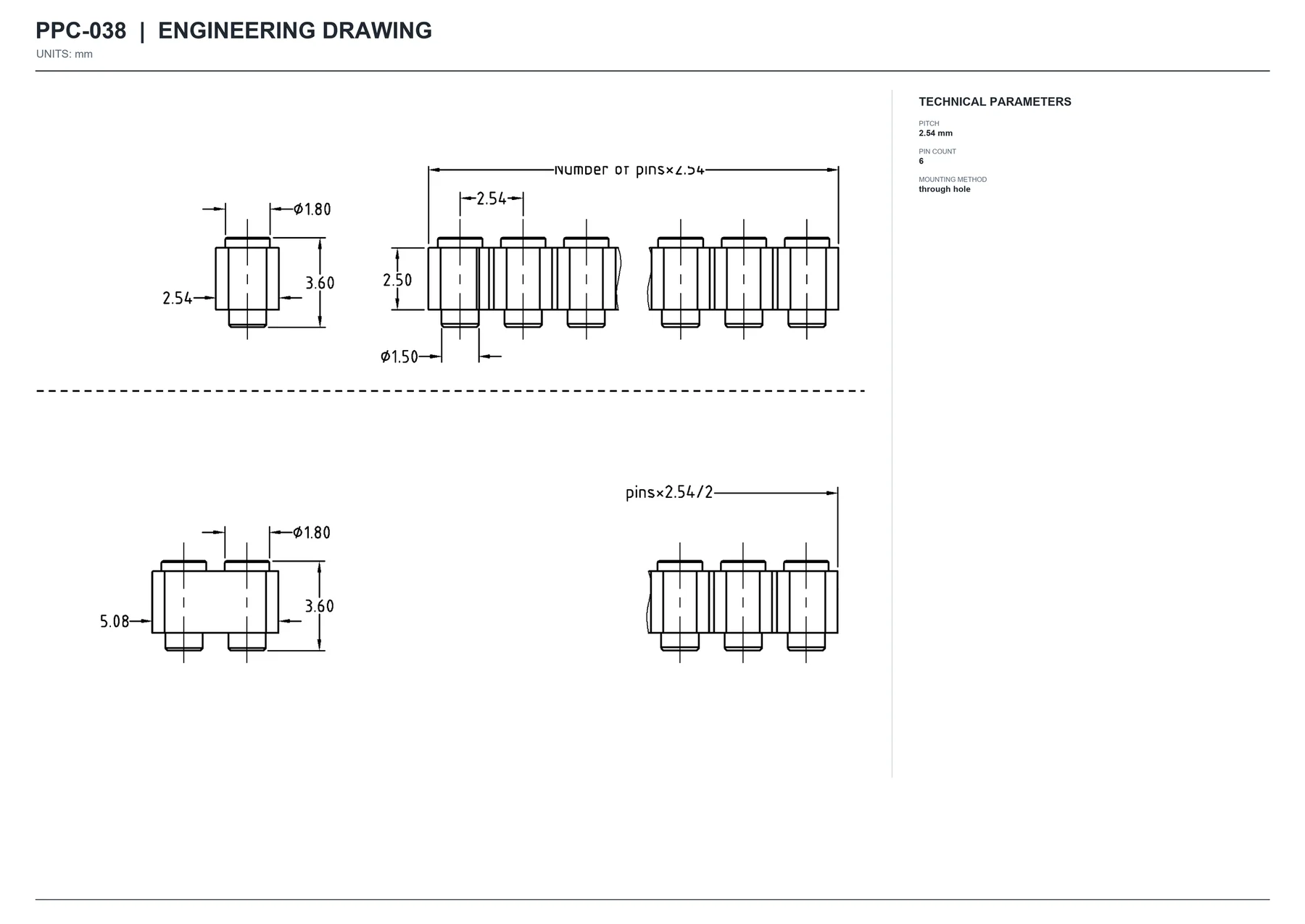

Open any image to view the original file. A drawing is displayed only when the supplied engineering archive links it to the same product and contains no model-label conflict; no drawing or dimension is generated from appearance alone.
BEFORE QUOTATION
Information that helps us evaluate the project
Send the available level of detail. Our team can identify the remaining questions during the engineering review.
- 2D or 3D drawings and available installation space
- Pin assignment, voltage, current, signal or protocol
- Force, travel, magnetic attraction and release behavior
- Materials, plating, cable, appearance and environmental requirements
- Reliability target, sample quantity and estimated annual volume
