Input and cable
USB-A, USB-C or another input, cable length, conductor size, jacket and flex requirements are selected for the system.
CUSTOM MAGNETIC POWER CABLES

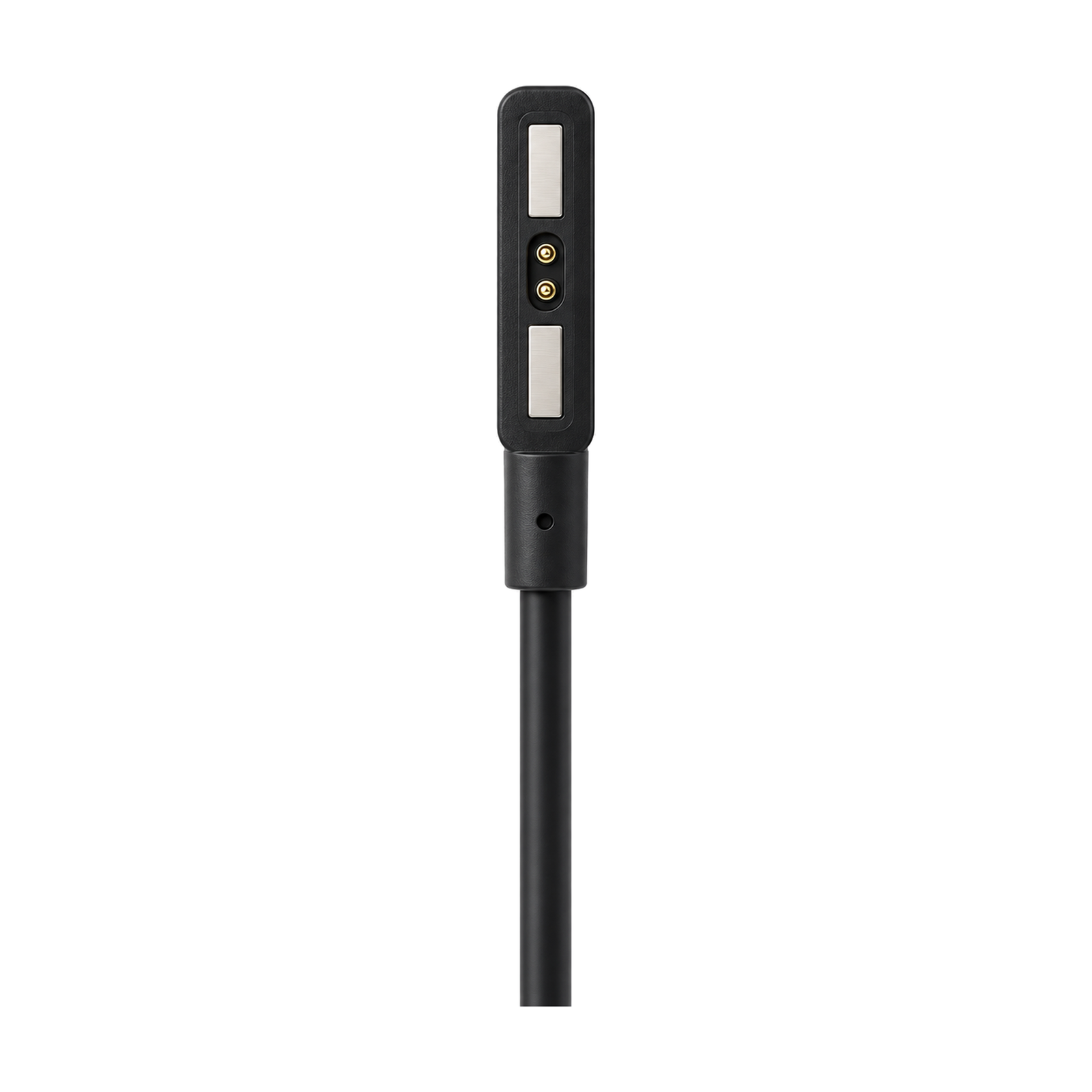

Custom 2-Pin Magnetic Charging Cable, 2 A Max / 12 V – YT-MCC-011
SKU YT-MCC-011
Complete magnetic charging cable assemblies configured around the device interface, input connector, cable and power requirements.
Magnetic head
The head is engineered with the device receptacle, positioning, polarity, pin assignment and release behavior.
Charging validation
Electrical performance and temperature rise are verified under the agreed device and power conditions.
VERIFIED SOURCE DATA
Product specifications
Values below are translated from the existing factory-reviewed product record. Final tolerances, test methods and acceptance criteria follow the project-approved drawing and specification.
| Yongtan Model | YT-MCC-011 |
|---|---|
| Pin Count | 2 |
| Rated Current | 2 A Max | 2 A | 3 A |
| Rated Voltage | 12 V | DC 12 V |
| Contact Resistance | 50 milliohm Max |
| Mechanical Life | 50,000 cycles |
PRODUCT DOCUMENTATION

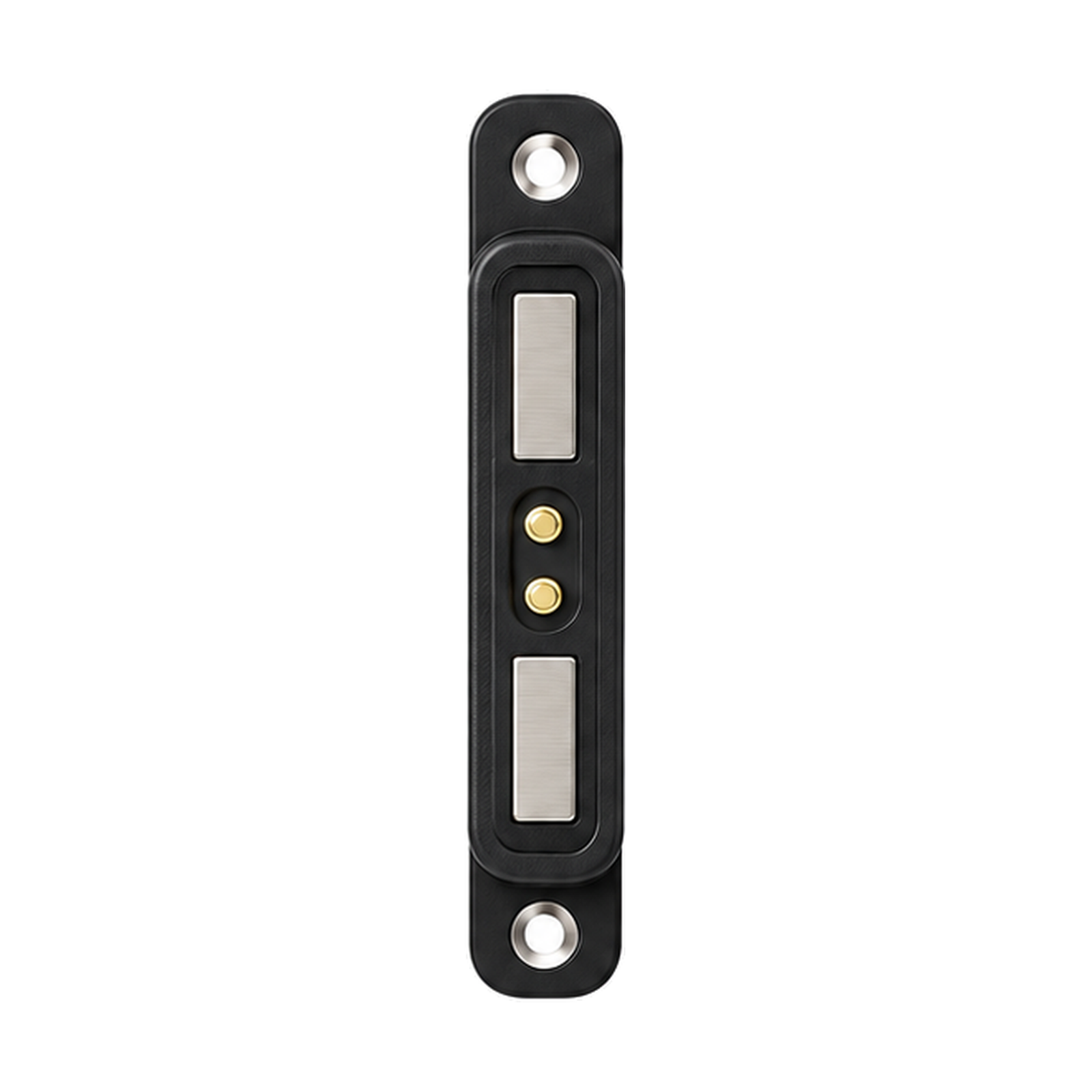

Product images & engineering references
Open any image to view the original file. A drawing is displayed only when the supplied engineering archive links it to the same product and contains no model-label conflict; no drawing or dimension is generated from appearance alone.
BEFORE QUOTATION
Information that helps us evaluate the project
Send the available level of detail. Our team can identify the remaining questions during the engineering review.
- 2D or 3D drawings and available installation space
- Pin assignment, voltage, current, signal or protocol
- Force, travel, magnetic attraction and release behavior
- Materials, plating, cable, appearance and environmental requirements
- Reliability target, sample quantity and estimated annual volume
RELATED CASES
More Magnetic Charging Cables references
CUSTOM PROJECT REFERENCECustom 3-Pin Magnetic Charging Cable, 1 A Max / 12 V – YT-MCC-012SKU YT-MCC-012Pin Count3Rated Current1 A MaxRated Voltage12 V
CUSTOM PROJECT REFERENCECustom 4-Pin Magnetic Charging Cable, 1 A Max / 12 V – YT-MCC-032SKU YT-MCC-032Pin Count4Rated Current1 A MaxRated Voltage12 V
CUSTOM PROJECT REFERENCECustom 3-Pin Magnetic Charging Cable, 2 A / 12 V – YT-MCC-010SKU YT-MCC-010Pin Count3Rated Current2 ARated Voltage12 V
CUSTOM PROJECT REFERENCECustom Round Magnetic Charging Cable, 2 A / 12 V – YT-MCC-009SKU YT-MCC-009Rated Current2 ARated Voltage12 VENGINEERING FAQ
Questions about this magnetic charging cable
Concise answers for product teams evaluating a custom precision-contact or magnetic-connection project.
What type of product is YT-MCC-011?
YT-MCC-011 is shown as a custom magnetic charging cable customer case reference. The descriptive title and specification table identify its product family and verified source parameters.
Can the specifications of this reference be changed?
Yes. The displayed values describe the referenced case. Final dimensions, electrical performance, materials, plating and validation conditions are confirmed for the new application.
Is an engineering drawing available for this model?
A drawing is displayed only when the supplied archive links it to the same model without a label conflict. If no drawing appears, request the applicable document from Bella.
PROJECT INQUIRY
Tell us about your project
Please share the application, drawings, pin assignment, electrical requirements, installation space, operating environment and estimated quantity whenever available.
