Input and cable
USB-A, USB-C or another input, cable length, conductor size, jacket and flex requirements are selected for the system.
CUSTOM MAGNETIC POWER CABLES
Custom Magnetic Charging Cables
Complete magnetic charging cable assemblies configured around the device interface, input connector, cable and power requirements.
PRODUCT SELECTOR
Filter magnetic charging cables by product type
The filter structure follows the same five-family classification used on the Chinese catalog. A matching case is a development reference, not a guaranteed drop-in design.
62 matching project referencesPage 2 of 6

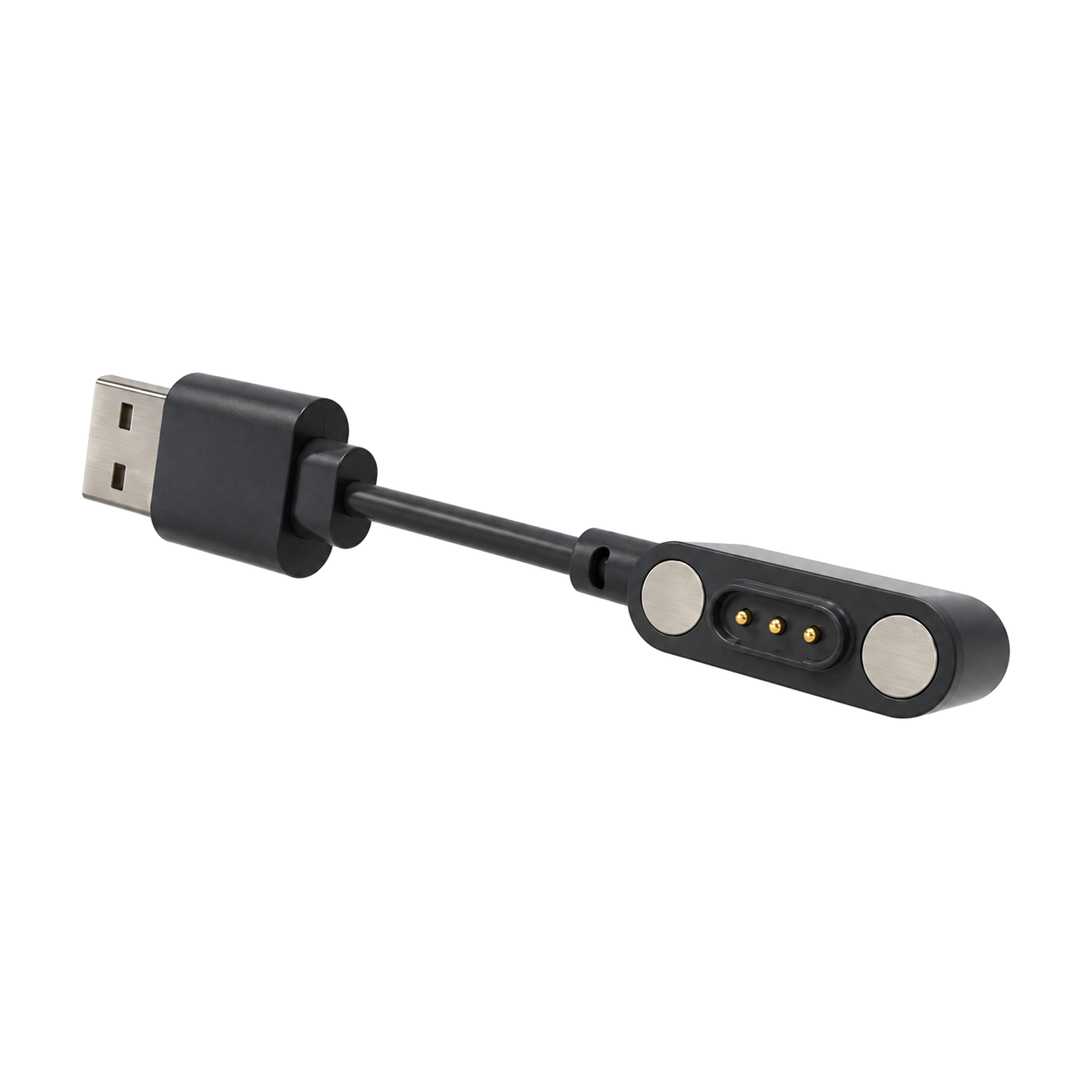

CUSTOM PROJECT REFERENCECustom 3-Pin Magnetic Charging Cable, 1 A / 12 V – YT-MCC-026SKU YT-MCC-026Pin Count3Rated Current1 ARated Voltage12 V

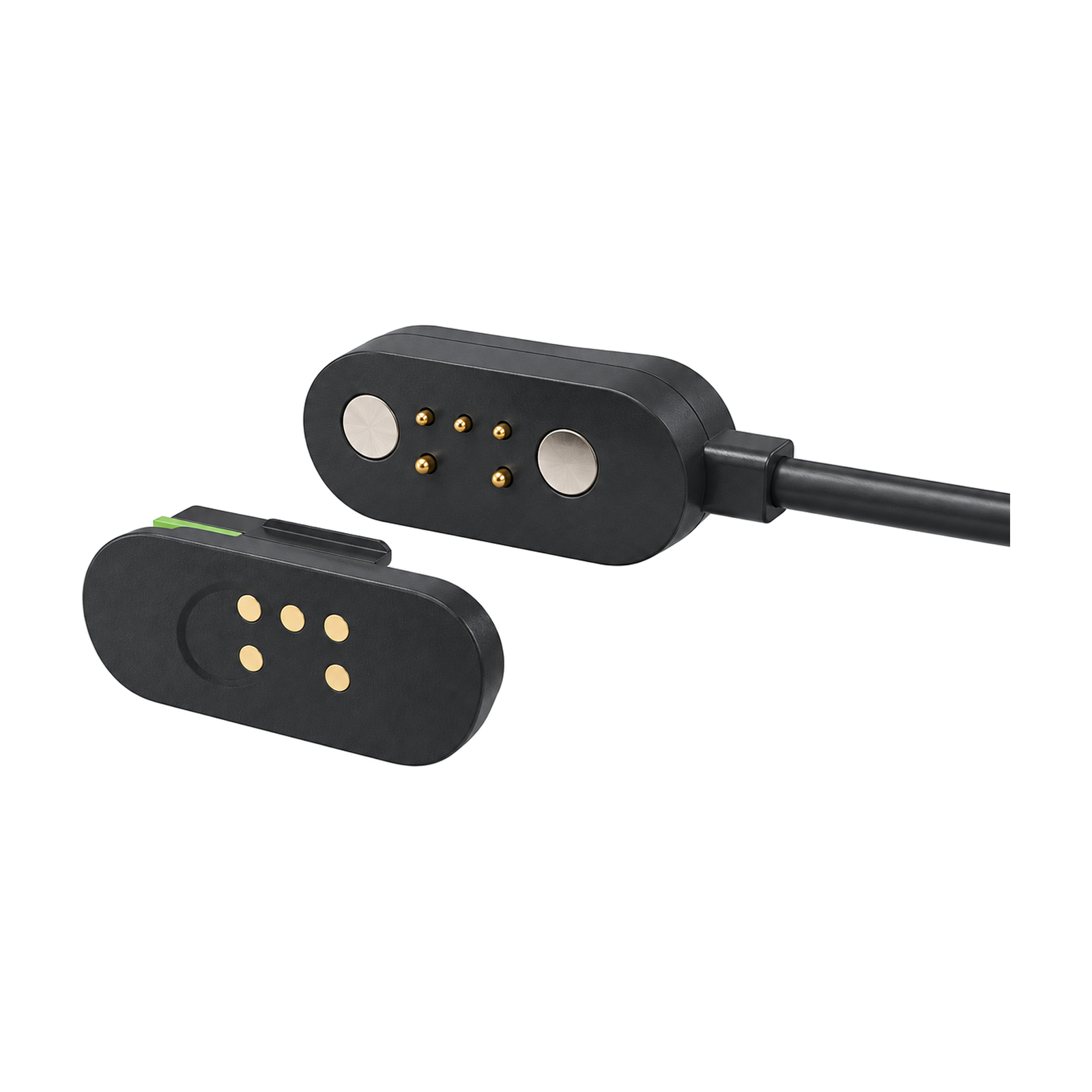

CUSTOM PROJECT REFERENCECustom 5-Pin Magnetic Charging Cable, 3 A / 12 V – YT-MCC-025SKU YT-MCC-025Pin Count5Rated Current3 ARated Voltage12 V

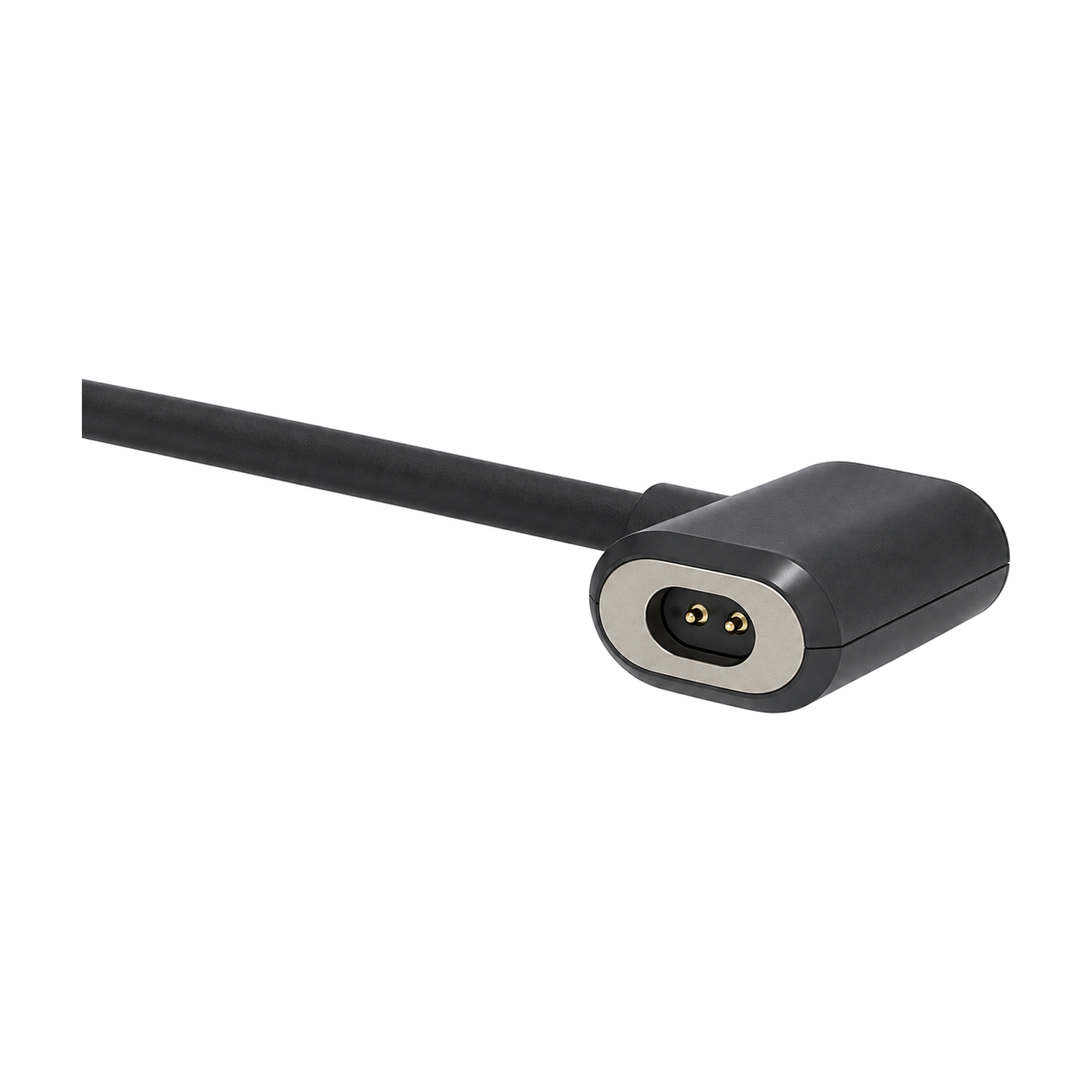

CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Charging Cable, 1A Max / 12 V – YT-MCC-024SKU YT-MCC-024Pin Count2Rated Current1A MaxRated Voltage12 V

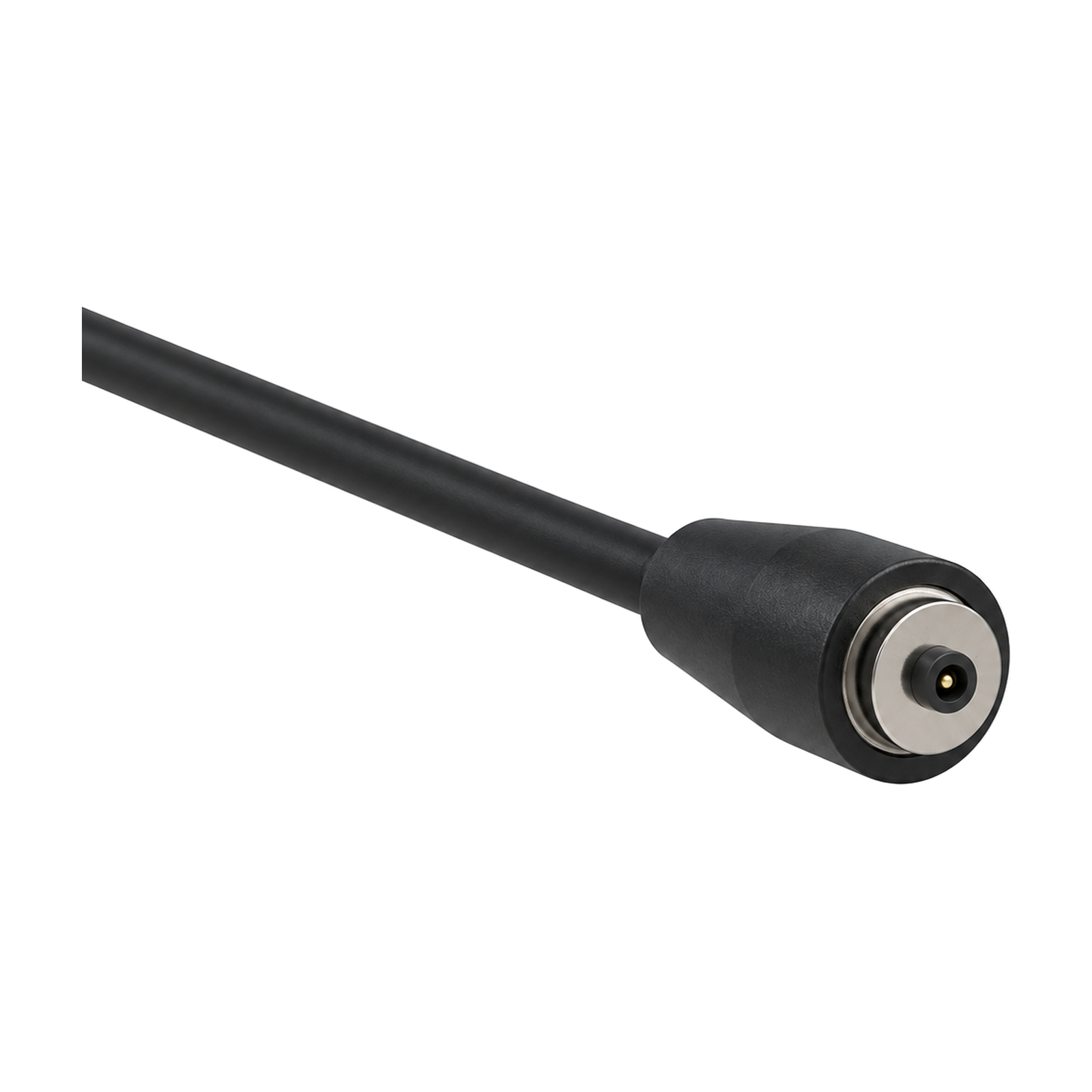

CUSTOM PROJECT REFERENCECustom Round 1-Pin Magnetic Charging Cable, 1 A / 5 V – YT-MCC-023SKU YT-MCC-023Pin Count1Rated Current1 ARated Voltage5 V

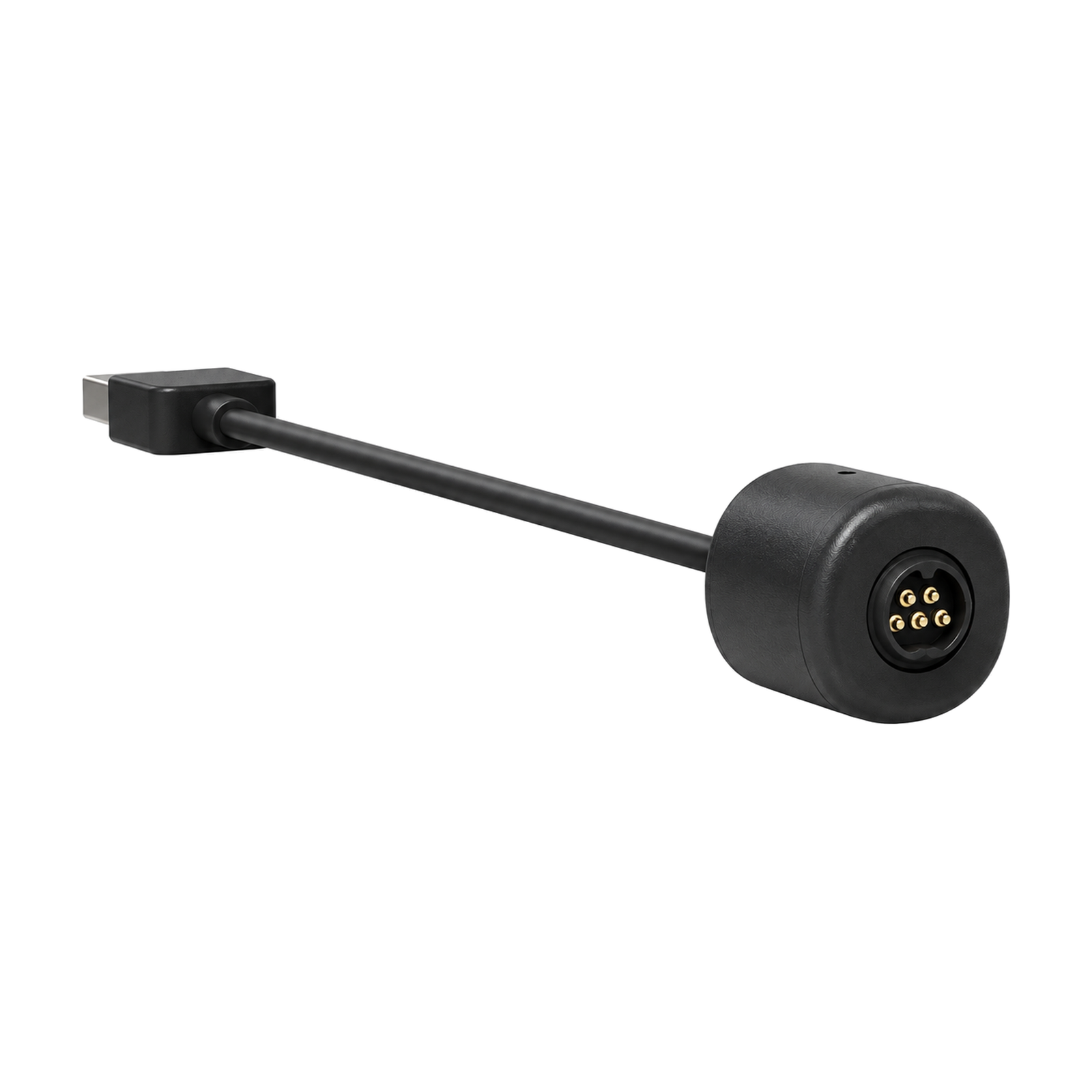

CUSTOM PROJECT REFERENCECustom Round 5-Pin Magnetic Charging Cable, 1 A / 12 V – YT-MCC-022SKU YT-MCC-022Pin Count5Rated Current1 ARated Voltage12 V

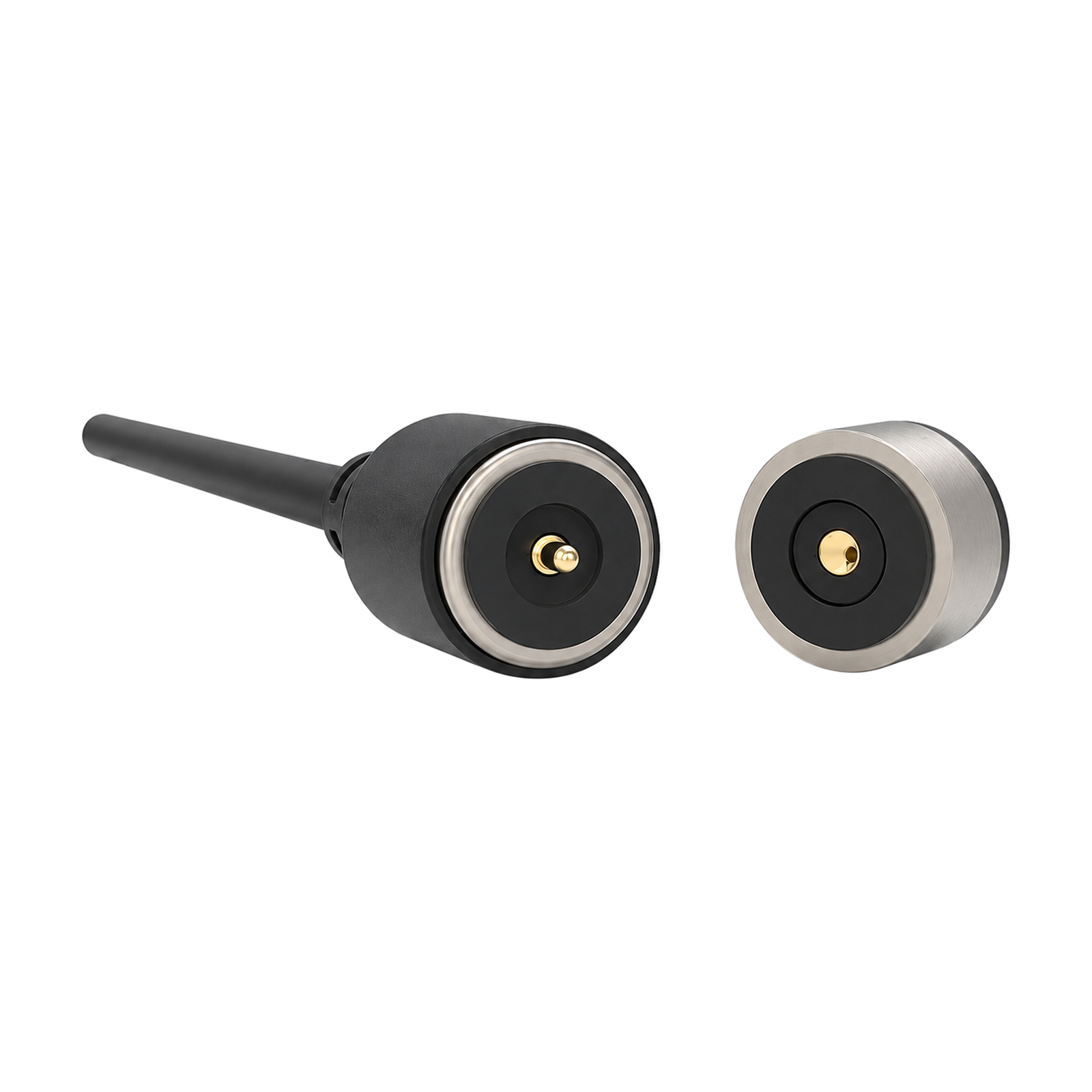

CUSTOM PROJECT REFERENCECustom Round Magnetic Charging Cable, 2 A / 12 V – YT-MCC-006SKU YT-MCC-006Rated Current2 ARated Voltage12 V

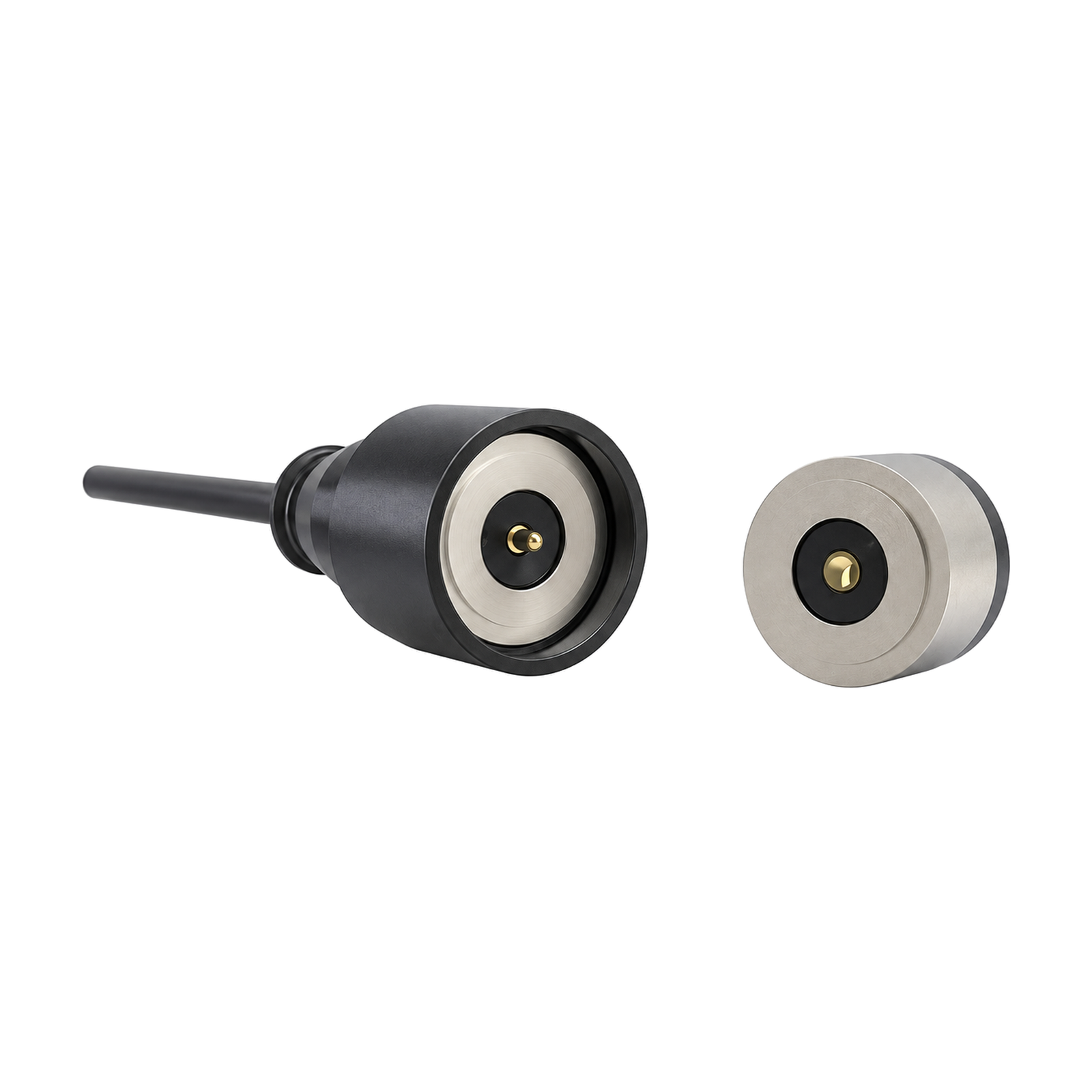

CUSTOM PROJECT REFERENCECustom Round Magnetic Charging Cable, 2 A / 12 V – YT-MCC-021SKU YT-MCC-021Rated Current2 ARated Voltage12 V

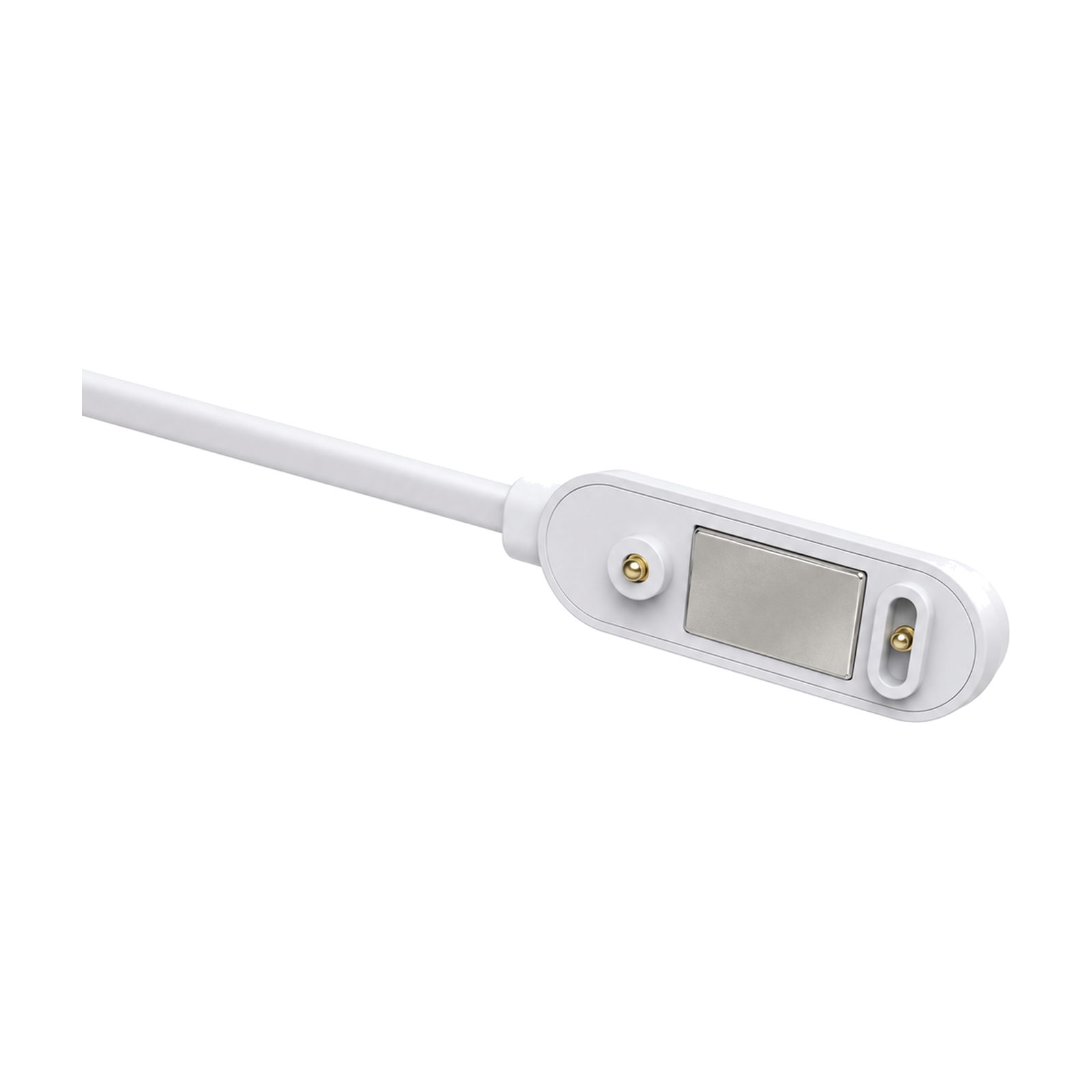

CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Charging Cable, 1 A / 12 V – YT-MCC-020SKU YT-MCC-020Pin Count2Rated Current1 ARated Voltage12 V

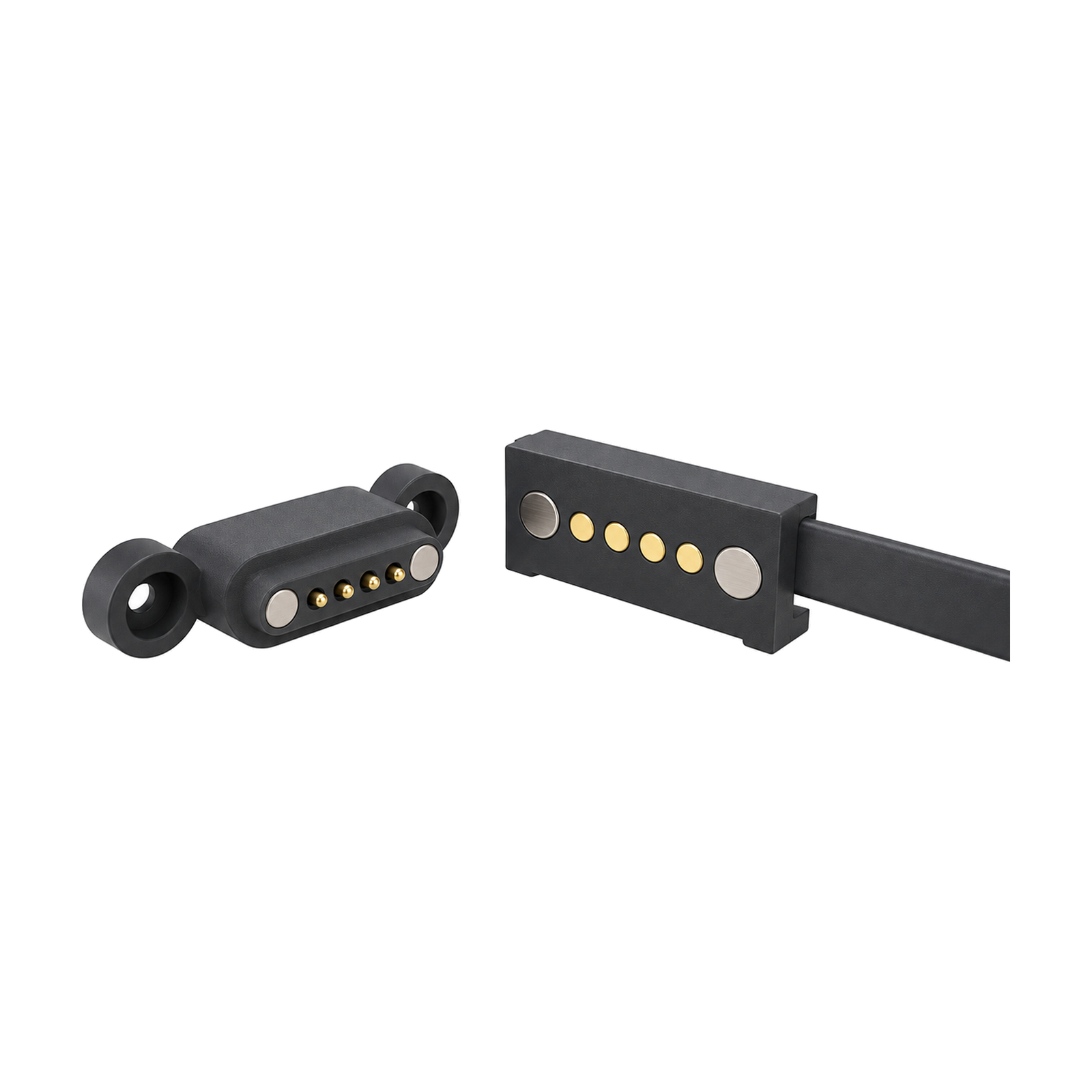

CUSTOM PROJECT REFERENCECustom 4-Pin Magnetic Charging Cable, 5 A / 12 V – YT-MCC-019SKU YT-MCC-019Pin Count4Rated Current5 ARated Voltage12 V

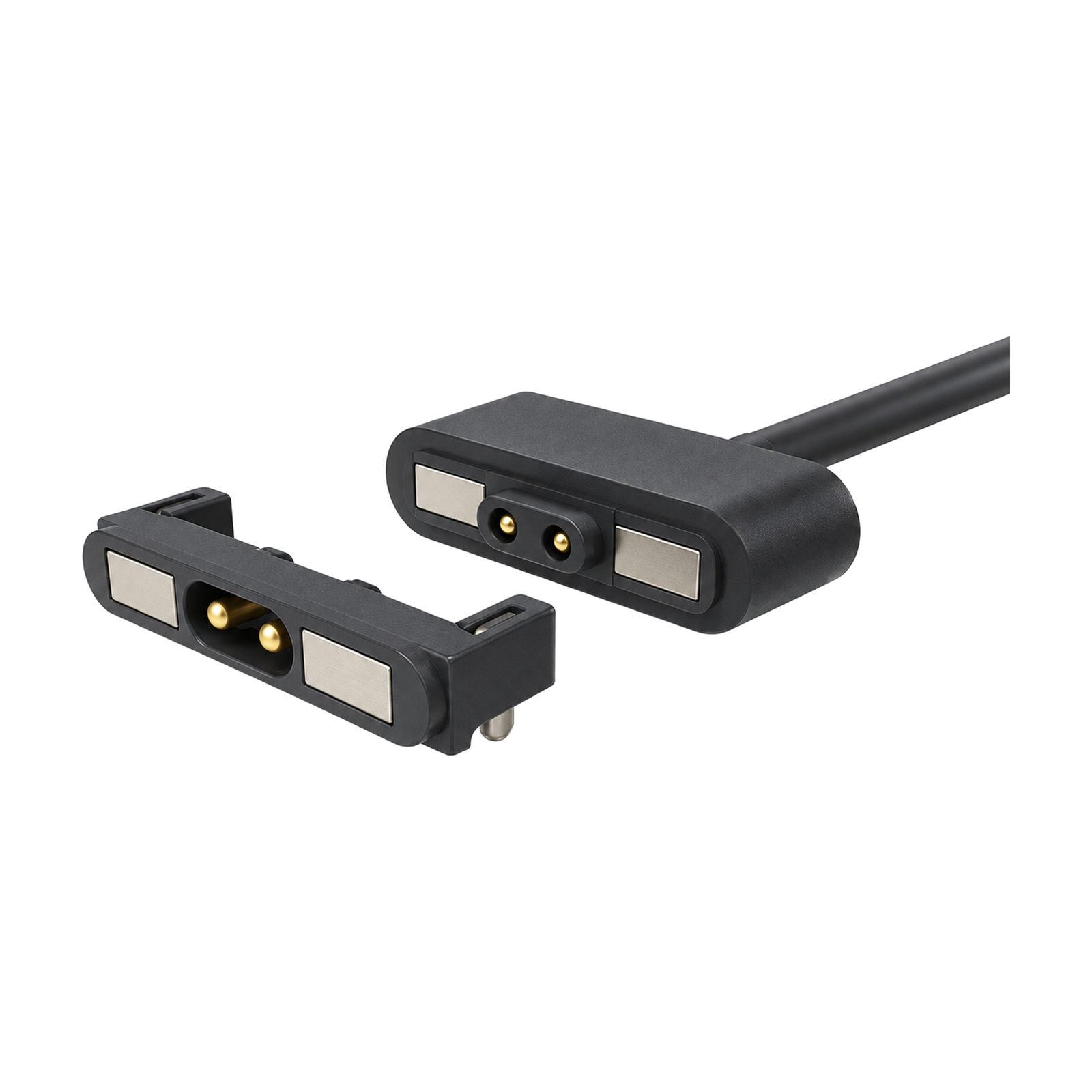

CUSTOM PROJECT REFERENCECustom 2-Pin Magnetic Charging Cable, 1 A / 12 V – YT-MCC-004SKU YT-MCC-004Pin Count2Rated Current1 ARated Voltage12 V

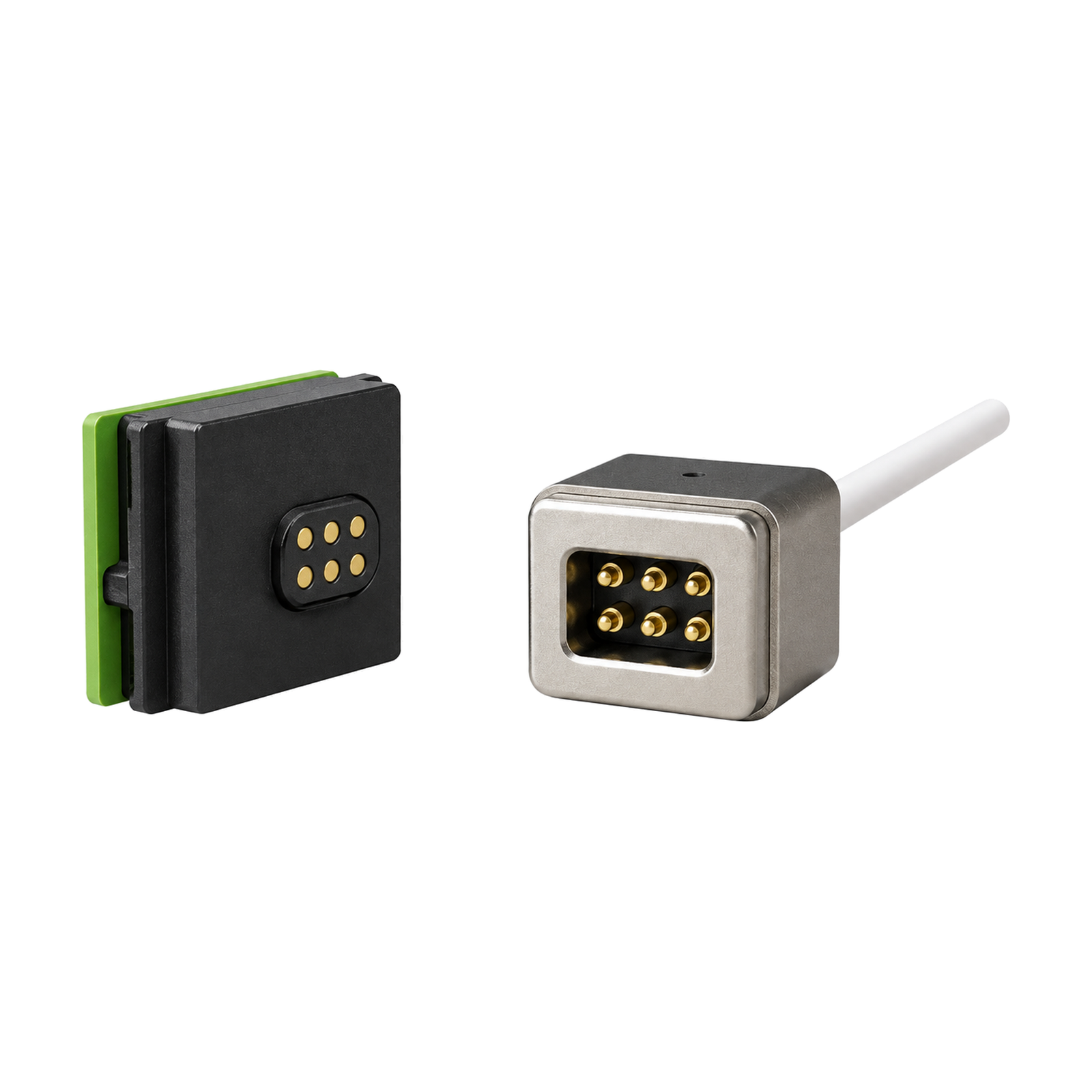

CUSTOM PROJECT REFERENCECustom 6-Pin Magnetic Charging Cable, 3 A / 12 V – YT-MCC-018SKU YT-MCC-018Pin Count6Rated Current3 ARated Voltage12 V

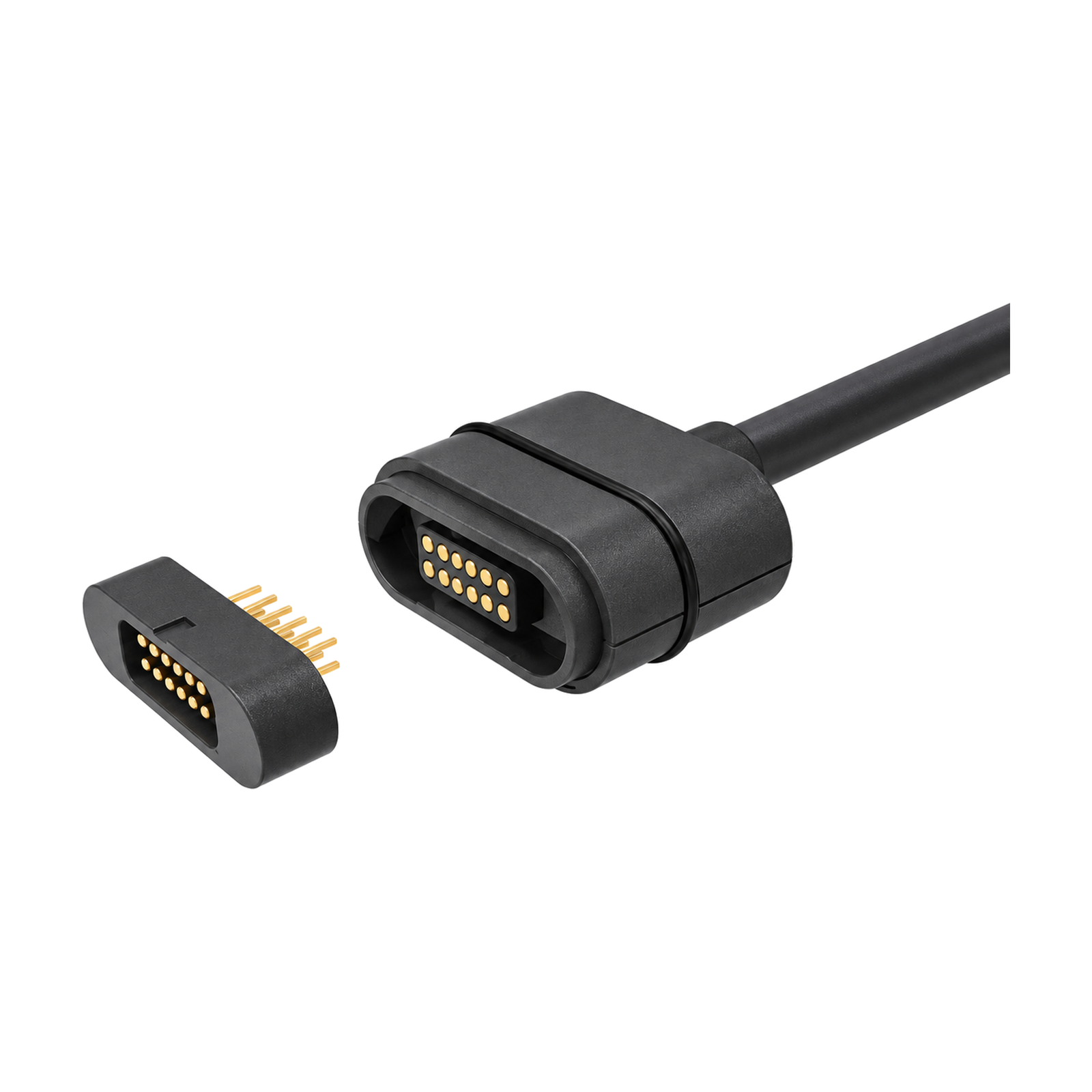

CUSTOM PROJECT REFERENCECustom 12-Pin Magnetic Charging Cable, 1 A / 12 V – YT-MCC-017SKU YT-MCC-017Pin Count12Rated Current1 ARated Voltage12 VPROJECT EVALUATION
What we confirm before development
Magnetic head
The head is engineered with the device receptacle, positioning, polarity, pin assignment and release behavior.
Charging validation
Electrical performance and temperature rise are verified under the agreed device and power conditions.
ENGINEERING FAQ
Magnetic Charging Cable selection questions
Concise answers for product teams evaluating a custom precision-contact or magnetic-connection project.
What is a custom magnetic charging cable?
Complete magnetic charging cable assemblies configured around the device interface, input connector, cable and power requirements. The final design is released only after the project requirements are confirmed.
Which specifications help select a magnetic charging cable?
Start with pin count, shape, installation space, electrical assignment, operating environment and expected service life. Use the filters as a reference, then confirm the full requirement with engineering.
Are the listed magnetic charging cables customizable?
Yes. The listed products are customer case references. Dimensions, materials, plating, cable, pin assignment and verification requirements can be reviewed for a new project.
START A PROJECT
Need a connection solution built around your device?
Share your drawings, application and target requirements with Bella for an engineering review.
